RF Wireless Mesh Networking Tower System Module

TWR-RF-SNAP 製造開始前

画像にカーソルを合わせると拡大表示されます。

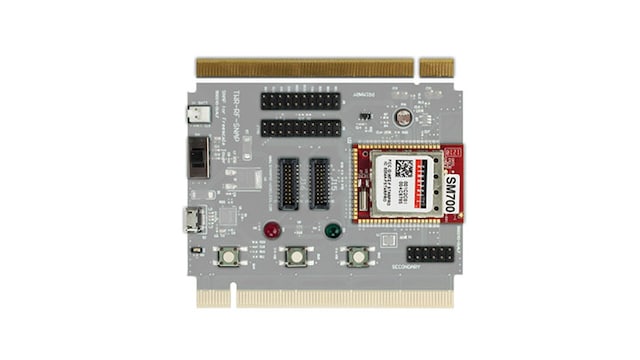

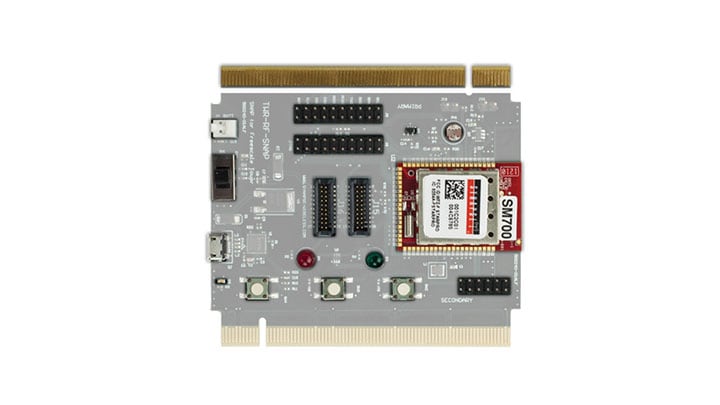

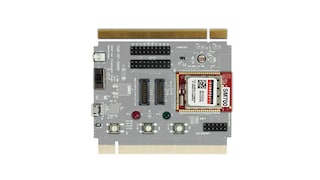

Are you looking to add mesh networking connectivity to your product design? Are you designing applications that require wireless control and monitoring? The TWR-RF-SNAP peripheral module is the ideal solution for your Tower® System designs.

This FCC-certified Tower System module comes with the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module, and SNAPpy control software to get you connected quickly.

製品詳細

Features

Connectivity

  • MicroUSB connector provides power and serial connectivity
  • Access to additional GPIOs on SM700 via header bloc
  • Configurable access to Tower® Elevator connector allows for interaction with other Tower modules (UART, SPI, and I²C)

Power Management

  • Multiple powering options

Wireless

  • Features the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module

Expansion Port

  • On-board TWRPI connector for the addition of standard NXP TWRPI modules

User Components

  • Push-button inputs and user controlled LEDs On-board low-power linear active thermistor and light sensor

Tools and OS Support

  • Preloaded with SNAP Network Operating System
