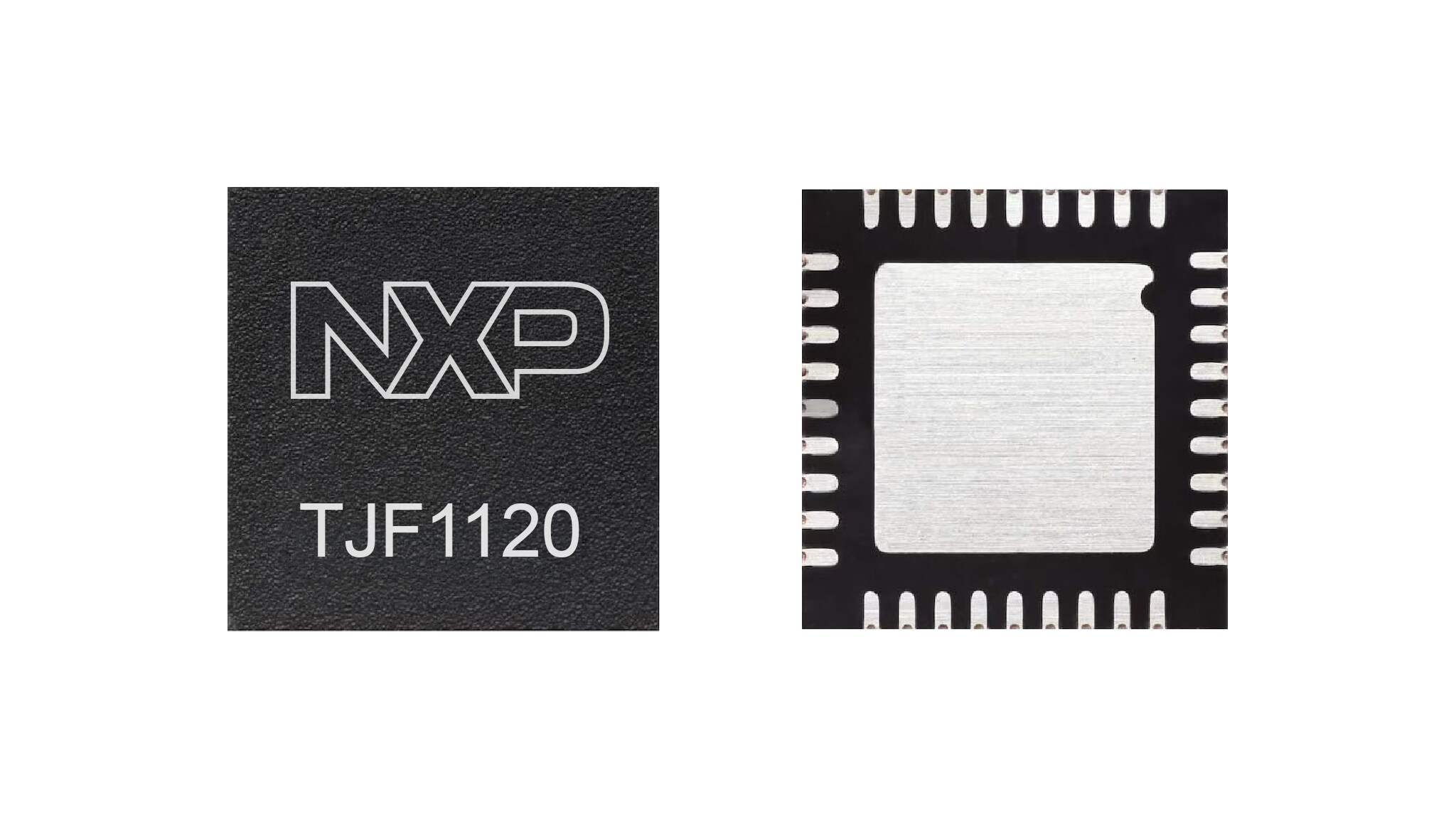

TJF1120: Industrial 1000BASE-T1 Ethernet PHY
- このページでは、試作品の情報を掲載しています。ここに記載されている仕様や情報は、予告なく変更されることがあります。追加情報については、 または営業担当者にお問い合わせください。
The TJF1120 is an industrial-grade 1000BASE-T1 Ethernet PHY designed for reliable high-speed Ethernet connectivity in industrial systems. The TJF1120 complies with current 1000BASE-T1 conformance test specifications and supports quality management (QM) requirements with enhanced monitoring, diagnostic and fault-detection capabilities. Its robust Ethernet PHY architecture helps improve network reliability and supports the continued adoption of Single Pair Ethernet (SPE) in industrial applications. The TJF1120 also supports the Industrial Mission Profile, enabling operation in demanding industrial environments.
TJF1120 silicon, documentation and software are available only to customers under an NDA. For more information, please contact NXP Support or your local sales representative.
製品詳細
ブロック図
Features
- IEEE 802.3bp compliant 1000BASE-T1 Ethernet PHY
- Quality managed
- Support for One-Pair Ether-Net (OPEN) Alliance (OA) Technical Committee 1 (TC1) advanced PHY features
- Support for Power Over Dataline (PoDL)
- Supports Industrial Mission Profile
- Heat-sink Very-Thin Quad Flat No-Lead, 36-pin (HVQFN36) with wettable flanks
- Optimized for industrial applications
- Includes startup self-test
- Ambient operating-temperature range from −40 °C to +105 °C
