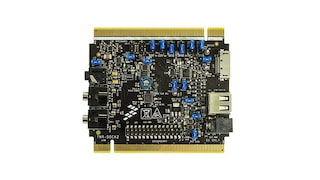

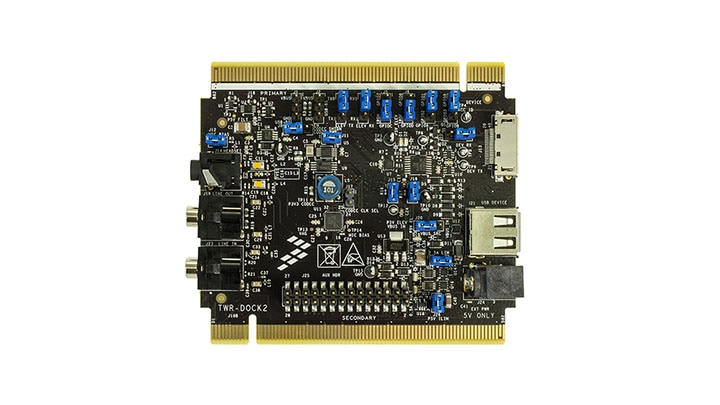

Tower System MFi Interface Module

TWR-DOCK2

画像にカーソルを合わせると拡大表示されます。

The NXP® TWR-DOCK2 module supports both Apple Lightning© and 30-pin accessory dock connectors for iPhone®, iPod® and iPad® devices, and includes a USB A receptacle for the standard USB to dock connector cable. The TWR-DOCK2 module enables digital audio streaming and includes the SGTL5000 audio codec to provide direct analog audio input and output support.

Designed to be combined and used with other modules in the Tower® System such as the TWR-K70F120M Arm® Cortex® -M4 based Kinetis® MCU and a wide range of other Tower System peripheral, sensor interface, and MCU/MPU modules.

TWR-DOCK2 is sold standalone and as part of complete Tower System development kits available through the MFi Program.

製品詳細

Features

Connectivity

  • USB A receptacle for connecting to iPhone, iPad, or iPod via standard USB to Lightning or 30-pin cable
  • Optional Lightning and 30-pin dock connector cables supporting all digital accessory dock connections to iPhone, iPad, and iPod devices

Power Management

  • Includes global power supply

Audio

  • Hardware audio codec SGTL5000 with analog stereo audio line out, line in, and headset 3.5 mm connections
  • Digital audio input and output are transferred via the USB connection

Support

  • Useable with various Tower® System processor and peripheral modules

購入オプション

TWR-DOCK2-Image

クリックして展開

  • TWR-DOCK2

  • Tower System, Peripheral Module, MFi Interface Module.

    • TWR-DOCK2 contains:
      • TWR-DOCK2 module with global power supply
      • Quick Start Guide
    • TWR-DOCK2-CBL contains:
      • Custom Lightning and 30-pin dock connector cables

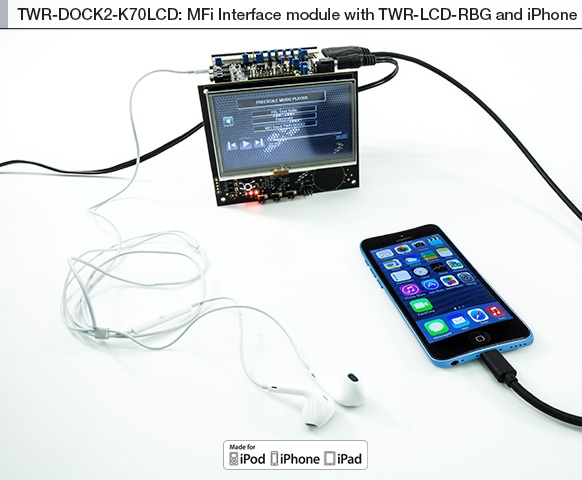

    • TWR-DOCK2-K70LCD kit contains:
      • TWR-DOCK2 module with power supply
      • TWR-K70F120M Kinetis K70 MCU module includes on-board 3-axis accelerometer MMA8451Q
      • TWR-LCD-RGB graphical LCD module
      • TWR-ELEV elevator modules
      • Quick Start Guide
    • TWR-DOCK2-KL46 kit contains:
      • TWR-DOCK2 module with 5A global power supply
      • TWR-KL46Z48M Kinetis KL3x, KL4x MCU module
      • TWRPI-MPL115A barometer plug-in
      • TWRPI-KEYPAD 12-key capacitive touch keypad plug-in
      • TWRPI-ROTARY capacitive touch rotary plug-in
      • TWR-ELEV elevator modules
      • Quick Start Guide
