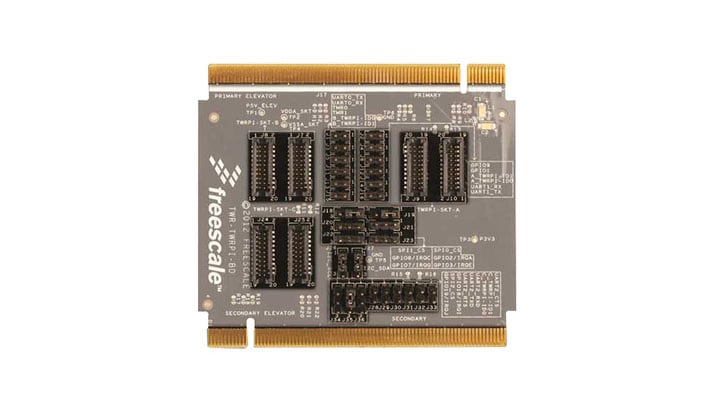

Tower Plug-In Carrier Module

TWR-TWRPI-BD 製造開始前

画像にカーソルを合わせると拡大表示されます。

Incorporating sensors, radios and other peripheral elements into your embedded design is easy with the Tower® Plug-In Carrier Module (TWR-TWRPI-BD).

This peripheral module enables rapid prototyping and evaluation by allowing the addition of up to three general purpose Tower Plug-Ins (TWRPIs), including accelerometers, barometers, radios, and more.

As is standard with all Tower System modules, this peripheral module is interchangeable across the modular development platform and can be used with a variety of existing controller modules, including the TWR-K60D100M and TWR-K70F120M.

製品詳細

対応製品

センサ

加速度センサ

  • MMA8451Q: ±2g/±4g/±8g Low-g 14ビット・デジタル加速度センサ

Features

Connectivity

  • Independent UART interfaces with optional flow control available on sockets A and C
  • Access to Tower® Plug-In (TWRPI) sockets allowing SPI, I2C, and UART communication interfaces
  • Independent SPI interfaces, each with two selectable follower select signals
  • Selectable I2C-bus shares between all TWRPI sockets
  • Independent selection of GPIO or interrupt functionality
  • All signals can be isolated from the Tower System to avoid signal conflicts with additional Tower modules
  • Optional TWRPI ID signals for detection of TWRPI modules
N true 0 TSPTWR-TWRPI-BDja 1 クイック・リファレンス・ガイド Quick Reference Guide t525 1 ja 1 1 0 English The TWR-TWRPI-BD module is part of the Tower<sup>&#174;</sup> System,&#13;&#10;a modular development platform that enables rapid prototyping and tool&#13;&#10;re-use through reconfigurable hardware. Take your design to the next&#13;&#10;level and begin prototyping with your Tower System today. 1348243769067733818142 TSP 478.2 KB None None documents None 1348243769067733818142 /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf 478234 /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf TWRTWRPIBDQSG N N 2016-10-31 Tower Plug-In Carrier Module Quick Start Guide /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf Quick Reference Guide N Y 803735842453594974 2023-06-19 pdf N en Sep 21, 2012 Quick Reference Guide t525 クイック・リファレンス・ガイド Quick Reference Guide Y N Tower Plug-In Carrier Module Quick Start Guide false ja ja false 0 TWR-TWRPI-BD downloads ja true 0 Y TSP クイック・リファレンス・ガイド 1 /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf 2016-10-31 1348243769067733818142 TSP 1 Sep 21, 2012 Quick Reference Guide クイック・リファレンス・ガイド The TWR-TWRPI-BD module is part of the Tower<sup>&#174;</sup> System,&#13;&#10;a modular development platform that enables rapid prototyping and tool&#13;&#10;re-use through reconfigurable hardware. Take your design to the next&#13;&#10;level and begin prototyping with your Tower System today. None /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf English 478234 None Quick Reference Guide 2023-06-19 N /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf Tower Plug-In Carrier Module Quick Start Guide /docs/en/quick-reference-guide/TWRTWRPIBDQSG.pdf documents 803735842453594974 Quick Reference Guide N Y en None Y t525 pdf 0 N N Tower Plug-In Carrier Module Quick Start Guide 478.2 KB TWRTWRPIBDQSG N 1348243769067733818142 true Y Tools
