Software Configurable Universal Analog Output AFE

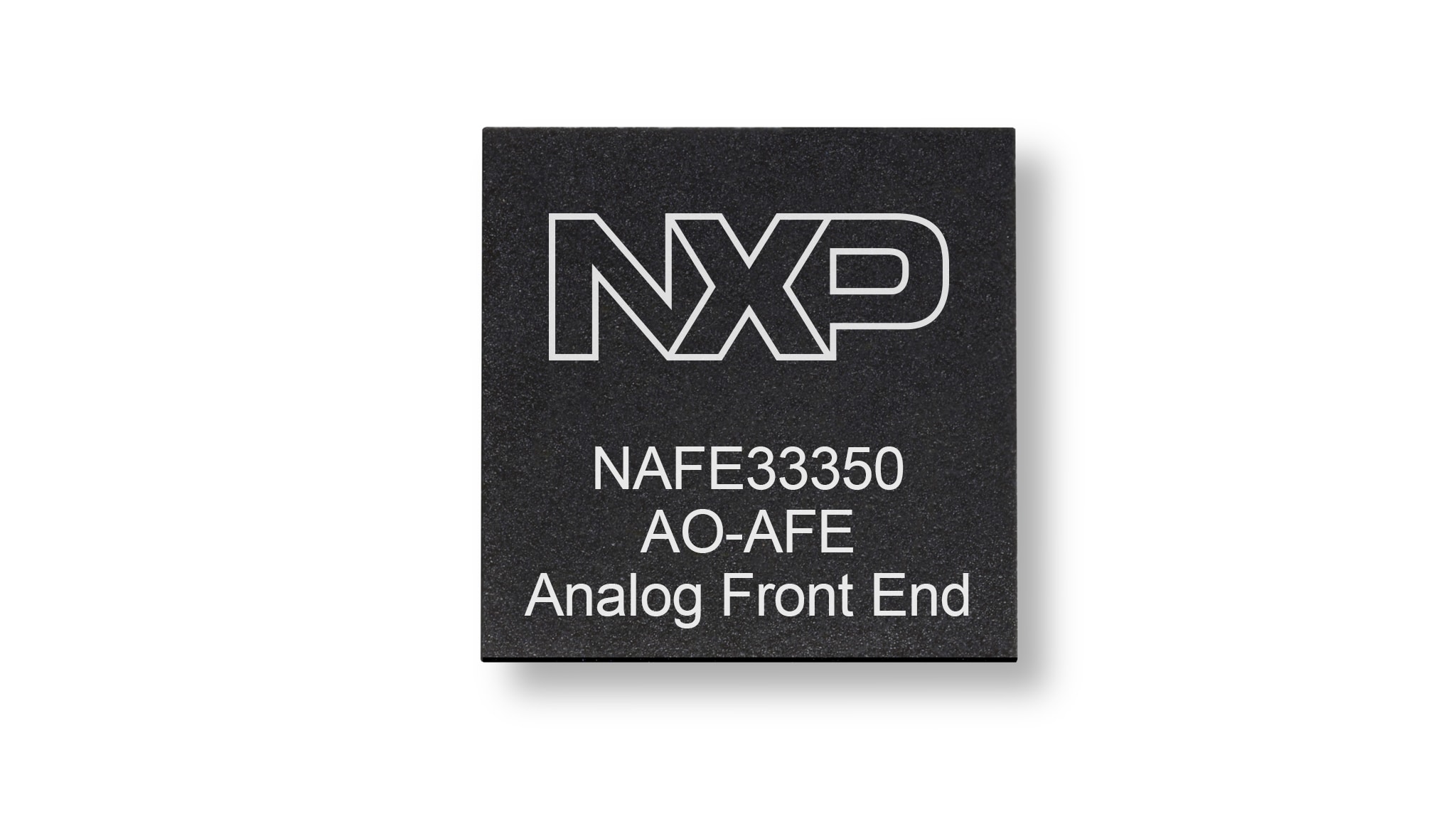

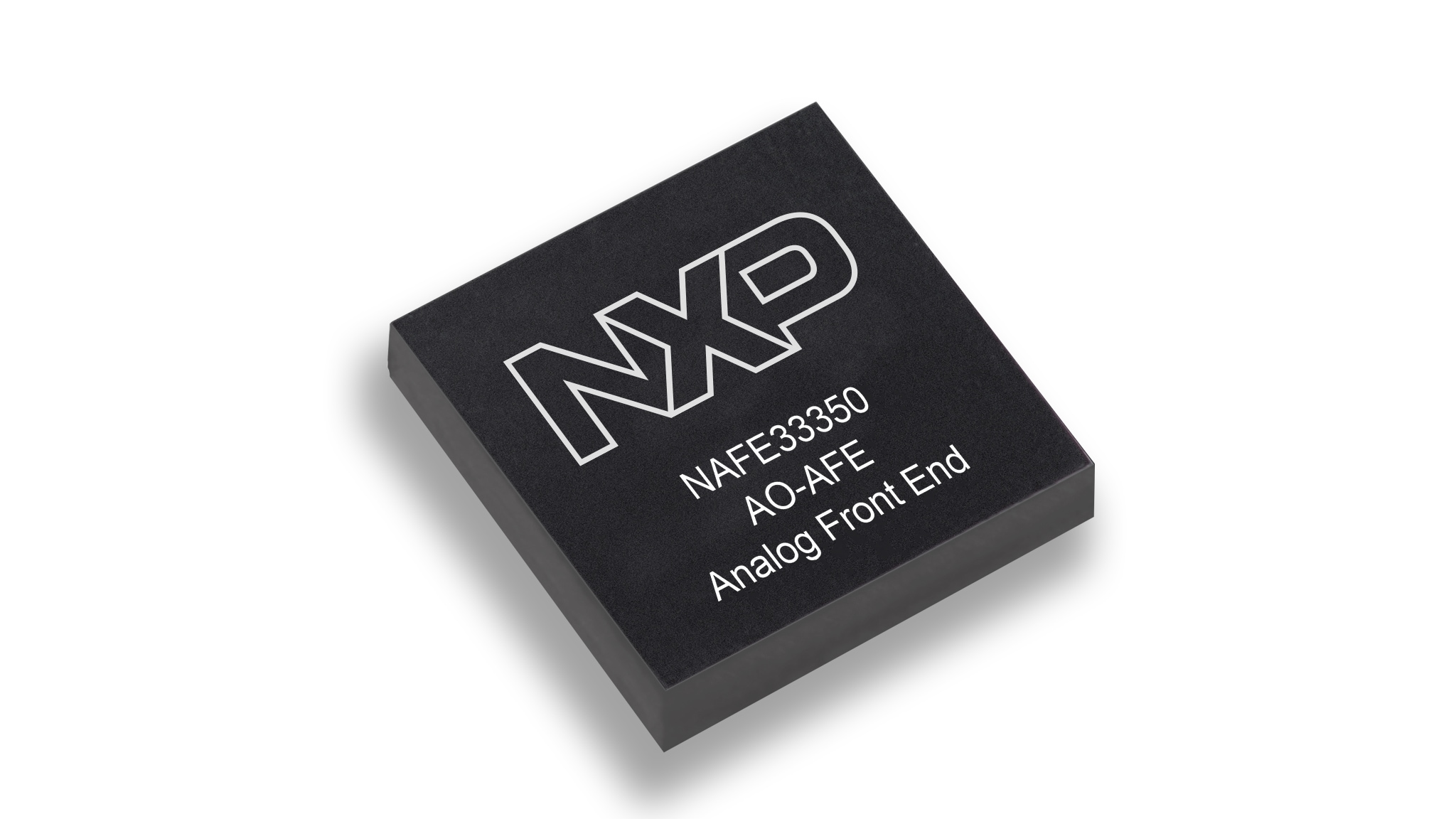

The NAFE33350 is a software-configurable universal output (AO) analog front end (AFE) that meets high-precision control requirements of industrial-grade applications. The AO-AFE integrates the following components.
- A precision 18-bit digital-to-analog converter (DAC)
- A low-drift voltage reference
- Low-offset-drift buffers
- A 65 V input-protection circuit for electromagnetic compatibility (EMC) and miswiring scenarios
For open circuit and short-circuit detection, the output stage includes built-in diagnostic and protection circuitry.
The AO AFE is suitable for programmable logic controllers (PLC), analog output modules, isolated industrial control systems and process control.
製品詳細
Features
General Overview
- ±7 V to ±28 V supply voltage range
- -40 °C to 125 °C temperature range
- 6 mm x 6 mm small Thin Quat Flat No-lead (TQFN)-40 package
Channels Configuration
- One software configurable analog output (AO)
- Ranges: ±12.5 V and ±25 mA
- Factory calibration
Resolution
- Digital-to-analog converter (DAC): 18-bit
Datarate
- 0 kilosamples per second (ksps) to 100 ksps
Protections
- ±36 V protected output (external transient voltage suppressor required)
Accuracy
- ±0.01 % accuracy at room temperature
- ±0.08 % accuracy over temperature (after room calibration)
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
1 ソフトウェア・ファイル
-
ライブラリ
NAFEx3352 Python library
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
