S12ZVC Mixed-Signal MCU for Automotive and Industrial CAN Applications

S12ZVC アクティブ

動画の上をクリックすると再生されます。

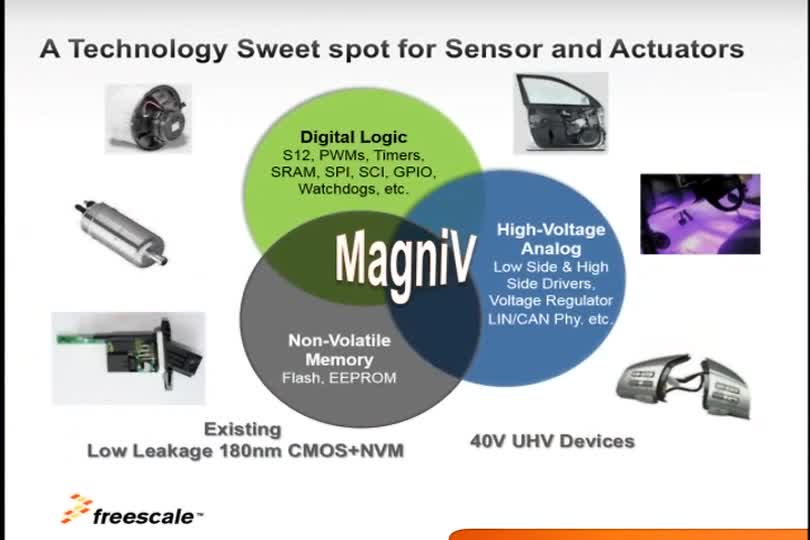

The S12ZVC platform, part of the S12 MagniV® mixed-signal MCU family, offers a low-cost, highly integrated solution that enables the design of smallest possible automotive CAN-termination nodes, while the family concept gives you scalability for platform design.

The S12ZVC integrates a sophisticated S12Z core together with a 12 V to 5 V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators switch panels or other user interfaces.

For additional information and sample availability, contact your local NXP Sales Office.

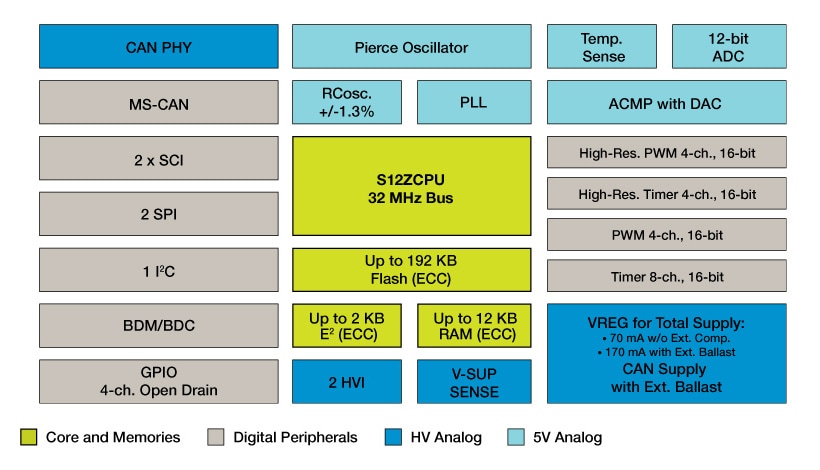

ブロック図

S12 MagniV Mixed-Signal MCU for CAN Applications

S12 MagniV Mixed-Signal MCU for CAN Applications
図を取得する PDF

Features

General

  • Enhanced S12Z core at 32 MHz bus speed
  • Up to 192 KB Flash (with ECC)
  • 2 KB EEPROM (with ECC)
  • Up to 12 KB RAM (with ECC)
  • Vreg for 3.5 to 20-volt operating range, scalable in supply for on- and off-chip systems
  • CAN physical layer

High-resolution mixed signal

  • 12-bit resolution ADC
  • 16ns resolution PWM and Timer

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPS12ZVCja 24 アプリケーション・ノート Application Note t789 9 アプリケーション・ノート・ソフトウェア Application Note Software t783 4 エラッタ Errata t522 2 エンジニアリング・ブリテン Technical Notes t521 1 カタログ Brochure t518 1 ファクト・シート Fact Sheet t523 1 ホワイト・ペーパ White Paper t530 1 ユーザ・ガイド User Guide t792 2 リファレンス・マニュアル Reference Manual t877 3 ja 4 1 1.0 English The MC9S12ZVC-Family is a new member of the S12 MagniV<sup>&#174;</sup> product line integrating a battery level (12V) voltage regulator, supply voltage monitoring, high voltage inputs and a CAN physical interface. 1427754773142711857357 PSP 2.4 MB Registration without Disclaimer None documents Extended 1427754773142711857357 /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf 2446472 /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf GETTING-STARTED-S12ZVC Y N 2016-10-31 Getting Started with the S12ZVC /webapp/Download?colCode=GETTING-STARTED-S12ZVC&docLang=en /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf User Guide N Y 132339537837198660 2023-06-18 pdf Y en Apr 20, 2015 User Guide t792 ユーザ・ガイド User Guide Y N Getting Started with the S12ZVC 2 2.4 English MC9S12ZVCRMV1: This document presents information about MC9S12ZVC-Family that offers various low-power modes and wakeup management to address state of the art power consumption requirements.&#13;&#10; 1425536851164718777256 PSP 5.4 MB Registration without Disclaimer None documents Extended 1425536851164718777256 /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf 5400948 /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf MC9S12ZVCRM Y N 2016-10-31 MC9S12ZVC-Family Reference Manual and Datasheet /webapp/Download?colCode=MC9S12ZVCRM&docLang=en /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf Reference Manual N Y 500633505221135046 2023-06-21 pdf Y en Jun 20, 2023 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N MC9S12ZVC-Family Reference Manual and Datasheet 3 1 English The S12ZVC family is part of the S12 MagniV<sup>&#174;</sup> portfolio of mixed-signal MCUs offering smart and optimized integration of high-voltage components. This new family is built upon LL18UHV technology that combines highly reliable 180 nm non-volatile memory along with the integration of high-voltage analog components on a single piece of silicon. 1362777600432704840519 PSP 278.3 KB None None documents None 1362777600432704840519 /docs/en/fact-sheet/S12ZVCFS.pdf 278300 /docs/en/fact-sheet/S12ZVCFS.pdf S12ZVCFS documents N N 2013-03-19 S12 MagniV<sup>&#174;</sup> S12ZVC Family Fact Sheet /docs/en/fact-sheet/S12ZVCFS.pdf /docs/en/fact-sheet/S12ZVCFS.pdf /docs/en/fact-sheet/S12ZVCFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Mar 26, 2015 736675474163315314 Fact Sheet Y N S12 MagniV<sup>&#174;</sup> S12ZVC Family Fact Sheet 0 Chinese 1362777600432704840519zh PSP 278.3 KB None None documents None 1362777600432704840519 /docs/zh/fact-sheet/S12ZVCFS.pdf 278300 /docs/zh/fact-sheet/S12ZVCFS.pdf S12ZVCFS documents N N 2013-03-19 S12 MagniV<sup>&#174;</sup> S12ZVC Family Fact Sheet /docs/zh/fact-sheet/S12ZVCFS.pdf /docs/zh/fact-sheet/S12ZVCFS.pdf /docs/zh/fact-sheet/S12ZVCFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh 736675474163315314 Fact Sheet N S12 MagniV S12ZVC系列产品简介 1 Japanese The S12ZVC family is part of the S12 MagniV<sup>&#174;</sup> portfolio of mixed-signal MCUs offering smart and optimized integration of high-voltage components. This new family is built upon LL18UHV technology that combines highly reliable 180 nm non-volatile memory along with the integration of high-voltage analog components on a single piece of silicon. 1362777600432704840519ja PSP 278.3 KB None None documents None 1362777600432704840519 /docs/ja/fact-sheet/S12ZVCFS.pdf 278300 /docs/ja/fact-sheet/S12ZVCFS.pdf S12ZVCFS N N 2013-03-19 S12 MagniV<sup>&#174;</sup> S12ZVC Family Fact Sheet /docs/ja/fact-sheet/S12ZVCFS.pdf /docs/ja/fact-sheet/S12ZVCFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N ja Nov 1, 2023 Fact Sheet t523 ファクト・シート Fact Sheet Y N S12 MagniV S12ZVC Family Fact Sheet 4 0 Chinese 1363973213998718373269zh PSP 1.4 MB None None documents None 1363973213998718373269 /docs/zh/white-paper/BODYDELECTRWP.pdf 1444568 /docs/zh/white-paper/BODYDELECTRWP.pdf BODYDELECTRWP documents N N 2013-03-22 Advancements in Body Electronics /docs/zh/white-paper/BODYDELECTRWP.pdf /docs/zh/white-paper/BODYDELECTRWP.pdf /docs/zh/white-paper/BODYDELECTRWP.pdf White Paper N Y 918633085541740938 2023-06-19 N zh 918633085541740938 White Paper N 车身电子技术的进展 0 English Drivers today are looking for new levels of comfort, safety, efficiency and consumer features in their vehicles. These requirements in the automotive world mirror those of society in general, with the &#8220;connected world&#8221; and machine-to-machine (M2M) communications being the current buzz. 1363973213998718373269 PSP 1.4 MB None None documents None 1363973213998718373269 /docs/en/white-paper/BODYDELECTRWP.pdf 1444568 /docs/en/white-paper/BODYDELECTRWP.pdf BODYDELECTRWP N N 2013-03-22 Advancements in Body Electronics /docs/en/white-paper/BODYDELECTRWP.pdf /docs/en/white-paper/BODYDELECTRWP.pdf White Paper N Y 918633085541740938 2023-06-19 pdf N en Mar 22, 2013 White Paper t530 ホワイト・ペーパ White Paper Y N Advancements in Body Electronics false ja ja リファレンス・マニュアル Reference Manual 2 5 0 English DRM167: This design reference manual describes the design of a steering wheel controller using two buttons layout located at the sides of the wheel.&#13;&#10; 1439362214409704804278 PSP 4.4 MB Registration without Disclaimer None documents Extended 1439362214409704804278 /secured/assets/documents/en/reference-manual/DRM167.zip 4424645 /secured/assets/documents/en/reference-manual/DRM167.zip DRM167 documents Y N 2016-10-31 DRM167, Steering Wheel Controls Reference Design with S12ZVC Family /webapp/Download?colCode=DRM167&lang_cd=ja /secured/assets/documents/en/reference-manual/DRM167.zip Reference Manual N 500633505221135046 2023-06-18 zip Y en Aug 11, 2015 500633505221135046 Reference Manual Y N DRM167, Steering Wheel Controls Reference Design with S12ZVC Family 6 1.01 English S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. 1360836753606710339755 PSP 3.0 MB Registration without Disclaimer None documents Extended 1360836753606710339755 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2981526 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf S12ZCPURM documents Y N 2016-10-31 CPU S12Z Reference Manual - Reference Manual /webapp/Download?colCode=S12ZCPURM&lang_cd=ja /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf Reference Manual N 500633505221135046 2024-07-15 pdf Y en Jan 13, 2013 500633505221135046 Reference Manual Y N CPU S12Z Reference Manual - Reference Manual アプリケーション・ノート Application Note 9 7 8.0 English This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. 1442088340466730481306 PSP 1.4 MB None None documents None 1442088340466730481306 /docs/en/application-note/AN10365.pdf 1359519 /docs/en/application-note/AN10365.pdf AN10365 documents N N 2016-10-08 AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf /docs/en/application-note/AN10365.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Oct 1, 2021 645036621402383989 Application Note Y N AN10365, Surface mount reflow soldering - Application note PDF 8 0 English Describing how the Spurious interrupt in S12Z family is a protective mechanism for unknown interrupt sources and makes CPU run under predictable action. The root cause to enter spurious interrupt is that an interrupt request becomes inactive after the interrupt has been recognized, but before the vector request. The synchronous and sequential operation could make the system robust and lower the possibility of entering the protective system mechanism. 1597036142864696703430 PSP 311.3 KB None None documents None 1597036142864696703430 /docs/en/application-note/AN12943.pdf 311289 /docs/en/application-note/AN12943.pdf AN12943 documents N N 2020-08-09 AN12943: Spurious interrupt on MagniV – Application Note /docs/en/application-note/AN12943.pdf /docs/en/application-note/AN12943.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Jun 30, 2020 645036621402383989 Application Note Y N AN12943: Spurious interrupt on MagniV – Application Note 9 1 English AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP Covering the operation and use of a simple serial Bootloader for the S12Z microcontroller families. The Bootloader can be a convenient way to support programming during production or “in-system”, where support for the dedicated Background Debug interface (BDM) may not be available. Users must pre-program the S12Z MCU with the Bootloader during production or at a programming vendor. 1518690072353719323097 PSP 530.4 KB Registration without Disclaimer None documents Extended 1518690072353719323097 /secured/assets/documents/en/application-note/AN12086.pdf 530397 /secured/assets/documents/en/application-note/AN12086.pdf AN12086 documents Y N 2018-02-15 AN12086: Simple Serial Bootloader for S12Z – Application Note /webapp/Download?colCode=AN12086&lang_cd=ja /secured/assets/documents/en/application-note/AN12086.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en Feb 18, 2018 645036621402383989 Application Note Y N AN12086: Simple Serial Bootloader for S12Z – Application Note 10 2 Chinese 1424410582795722817289zh PSP 1.6 MB Registration without Disclaimer None documents Extended 1424410582795722817289 /secured/assets/documents/zh/application-note/AN4867.pdf 1644736 /secured/assets/documents/zh/application-note/AN4867.pdf AN4867 documents Y N 2016-10-31 AN4867: Hardware Design Guidelines for S12ZVC – Application Note /secured/assets/documents/zh/application-note/AN4867.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4867&docLang=zh Application Note N 645036621402383989 2022-12-07 zh Apr 20, 2016 645036621402383989 Application Note Y N AN4867，S12ZVC硬件设计指南 - 应用笔记 3 English Containing hardware guidelines for designing with the S12ZVC family of S12 MagniV Mixed-signal MCUs. The S12 MagniV MC9S12ZVC family integrates a battery level (12 V) voltage regulator, supply voltage monitoring, high voltage inputs, and a CAN physical interface targeting CAN nodes like sensors, switch panels, or small actuators. 1424410582795722817289 PSP 1.6 MB Registration without Disclaimer None documents Extended 1424410582795722817289 /secured/assets/documents/en/application-note/AN4867.pdf 1644736 /secured/assets/documents/en/application-note/AN4867.pdf AN4867 documents Y N 2016-10-31 AN4867: Hardware Design Guidelines for S12ZVC – Application Note /webapp/Download?colCode=AN4867&lang_cd=ja /secured/assets/documents/en/application-note/AN4867.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jul 31, 2016 645036621402383989 Application Note Y N AN4867: Hardware Design Guidelines for S12ZVC – Application Note 11 1 English Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. 1426254102361716153980 PSP 425.8 KB None None documents None 1426254102361716153980 /docs/en/application-note/AN5082.pdf 425820 /docs/en/application-note/AN5082.pdf AN5082 documents N N 2016-10-31 AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf /docs/en/application-note/AN5082.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 15, 2015 645036621402383989 Application Note Y N AN5082: MagniV MCUs in 24V Applications – Application Note 12 0 English Providing details about the S12ZVC family, offering smart and optimized integration of high voltage components, with a high-reliability certification from its automotive context. This offers several advantages that can be leveraged in the industrial sector. 1424928459674726100533 PSP 202.4 KB None None documents None 1424928459674726100533 /docs/en/application-note/AN5090.pdf 202384 /docs/en/application-note/AN5090.pdf AN5090 documents N N 2021-07-21 AN5090: Using the S12ZVC Device for Industrial Applications – Application Note /docs/en/application-note/AN5090.pdf /docs/en/application-note/AN5090.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 25, 2015 645036621402383989 Application Note Y N AN5090: Using the S12ZVC Device for Industrial Applications – Application Note 13 0 English Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. 1407932756289724724697 PSP 745.5 KB None None documents None 1407932756289724724697 /docs/en/application-note/AN4975.pdf 745522 /docs/en/application-note/AN4975.pdf AN4975 documents N N 2016-10-31 AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf /docs/en/application-note/AN4975.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 11, 2014 645036621402383989 Application Note Y N AN4975: Using MSCAN on the MagniV Family – Application Note 14 0 English Explaning the functions and advantages of the special high-resolution timers and PWM available in the MC9S12VC devices and their role in advanced timing applications. The TIM16B8CV3 module consists of a 16-bit software programmable counter driven by a flexible programmable Pre-scaler. This timer can be used for many purposes, including input waveform measurements while simultaneously generating an output waveform. 1387789947689696996386 PSP 157.9 KB None None documents None 1387789947689696996386 /docs/en/application-note/AN4851.pdf 157909 /docs/en/application-note/AN4851.pdf AN4851 documents N N 2021-07-21 AN4851: Using the High-Resolution Timer and PWM in the S12ZVC – Application Note /docs/en/application-note/AN4851.pdf /docs/en/application-note/AN4851.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 23, 2013 645036621402383989 Application Note Y N AN4851: Using the High-Resolution Timer and PWM in the S12ZVC – Application Note 15 0 English Describing the Single Edge Nibble Transmission (SENT) transmitter module in the S12VC 16-bit MCU while detailing how to use the SENT module in a typical application. 1387794422591724191286 PSP 342.5 KB None None documents None 1387794422591724191286 /docs/en/application-note/AN4852.pdf 342547 /docs/en/application-note/AN4852.pdf AN4852 documents N N 2021-07-21 AN4852: Using the SENT Transmitter Module in S12ZVC Devices – Application Note /docs/en/application-note/AN4852.pdf /docs/en/application-note/AN4852.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 23, 2013 645036621402383989 Application Note Y N AN4852: Using the SENT Transmitter Module in S12ZVC Devices – Application Note ユーザ・ガイド User Guide 1 16 1 Chinese Unified bootloader基于Unified 诊断服务(UDS)，传输协议和网络层服务协议(TP)。Unified bootloader旨在： ● 通过在新部件上使用现有的协议栈来提高bootloader的效率。 ● 通过重复使用久经验证的平台，提供高质量的新bootloader。 ● 向客户提供专业/生产级引导加载程序解决方案 1585586778554717783858zh PSP 2.0 MB Registration without Disclaimer None documents Extended 1585586778554717783858 /secured/assets/documents/zh/user-guide/UBLUG.pdf 1953836 /secured/assets/documents/zh/user-guide/UBLUG.pdf UBLUG documents Y N 2020-03-30 Unified Bootloader – User Guide /secured/assets/documents/zh/user-guide/UBLUG.pdf https://www.nxp.com.cn/webapp/Download?colCode=UBLUG&docLang=zh User Guide N 132339537837198660 2024-07-15 zh Mar 30, 2020 132339537837198660 User Guide Y N Unified bootloader用户指南 1 English User Guide for the Unified Bootloader for the S32K1x, S12ZVC and S12ZVM MCUs 1585586778554717783858 PSP 2.0 MB Registration without Disclaimer None documents Extended 1585586778554717783858 /secured/assets/documents/en/user-guide/UBLUG.pdf 1953836 /secured/assets/documents/en/user-guide/UBLUG.pdf UBLUG documents Y N 2020-03-30 Unified Bootloader – User Guide /webapp/Download?colCode=UBLUG&lang_cd=ja /secured/assets/documents/en/user-guide/UBLUG.pdf User Guide N 132339537837198660 2024-07-15 pdf Y en Mar 30, 2020 132339537837198660 User Guide Y N Unified Bootloader – User Guide アプリケーション・ノート・ソフトウェア Application Note Software 4 17 0 English AN12086, This application note covers the operation and use of a simple serial Bootloader for the S12Z microcontroller families. 1519031338444714652439 PSP 2.0 MB None None documents None 1519031338444714652439 /docs/en/application-note-software/AN12086SW.ZIP 1999011 /docs/en/application-note-software/AN12086SW.ZIP AN12086SW documents N N 2018-02-19 AN12086SW - Application note software for AN12086 /docs/en/application-note-software/AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP Application Note Software N 789425793691620447 2024-07-15 ZIP N en Feb 18, 2018 789425793691620447 Application Note Software Y N AN12086SW - Application note software for AN12086 18 0 English AN4975SW: This application note provides a simple MSCAN driver which will allow the user to enable CAN communications on any of the MagniV<sup>&#174;</sup> devices. 1407931813427736255742 PSP 814.0 KB None None documents None 1407931813427736255742 /docs/en/application-note-software/AN4975SW.zip 813956 /docs/en/application-note-software/AN4975SW.zip AN4975SW documents N N 2016-10-31 AN4975SW: Using MSCAN on the MagniV Family - Application notes software /docs/en/application-note-software/AN4975SW.zip /docs/en/application-note-software/AN4975SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Aug 12, 2014 789425793691620447 Application Note Software Y N AN4975SW: Using MSCAN on the MagniV Family - Application notes software 19 0 English AN4852: This application note describes the Single Edge Nibble Transmission (SENT) transmitter module in the S12VC 16-bit microcontroller devices. SENT is targeted for use in those applications where high-resolution data is transmitted from a sensor to the ECU. 1387794286646713223077 PSP 246.6 KB None None documents None 1387794286646713223077 /docs/en/application-note-software/AN4852SW.zip 246587 /docs/en/application-note-software/AN4852SW.zip AN4852SW documents N N 2013-12-23 AN4852, Using the SENT Transmitter Module in S12ZVC Devices - Application Notes Software /docs/en/application-note-software/AN4852SW.zip /docs/en/application-note-software/AN4852SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Dec 23, 2013 789425793691620447 Application Note Software D N AN4852, Using the SENT Transmitter Module in S12ZVC Devices - Application Notes Software 20 0 English AN4721: This application note explains the functions and advantages&#13;&#10;of the special high resolution timers and PWM available in the MC9S12VC devices and their role in advanced timing applications.&#13;&#10; 1387789420313693098310 PSP 248.8 KB None None documents None 1387789420313693098310 /docs/en/application-note-software/AN4851SW.zip 248780 /docs/en/application-note-software/AN4851SW.zip AN4851SW documents N N 2013-12-23 AN4721, S12ZVH: Hardware Design Guidelines - Application Notes software /docs/en/application-note-software/AN4851SW.zip /docs/en/application-note-software/AN4851SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Dec 23, 2013 789425793691620447 Application Note Software D N AN4721, S12ZVH: Hardware Design Guidelines - Application Notes software カタログ Brochure 1 21 0 English Simplify your system design and reduce time to market with integrated S12 MagniV® solutions 1630535268286723864752 PSP 1.8 MB None None documents None 1630535268286723864752 /docs/en/brochure/MAGNIVFAMBR.pdf 1823754 /docs/en/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/en/brochure/MAGNIVFAMBR.pdf /docs/en/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 en Sep 1, 2021 712453003803778552 Brochure Y N MagniV mixed-signal microcontrollers – Brochure 0 Japanese 統合されたS12 MagniV®ソリューションで、システム設計を簡素化するとともに市場投入までの期間を短縮できます 1630535268286723864752ja PSP 1.8 MB None None documents None 1630535268286723864752 /docs/ja/brochure/MAGNIVFAMBR.pdf 1823754 /docs/ja/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/ja/brochure/MAGNIVFAMBR.pdf /docs/ja/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 pdf N ja Nov 1, 2023 712453003803778552 Brochure Y N MagniV®ミックスド・シグナルMCU_パンフレット エンジニアリング・ブリテン Technical Notes 1 22 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=ja /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin エラッタ Errata 2 23 28 MAY 2021 English S12ZVC_0N23N/1N23N/0P81C/1P81C: This report applies to mask 0N23N/1N23N/0P81C/1P81C for S12ZVC families. 1623094910936716846012 PSP 146.1 KB None None documents None 1623094910936716846012 /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf 146110 /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf S12ZVC_0N23N_1N23N_0P81C_1P81C documents N N 2021-06-07 S12ZVC_0N23N/1N23N/0P81C/1P81C, Mask Set Errata for Mask 0N23N/1N23N/0P81C/1P81C /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf Errata N 155452329886410597 2022-12-07 pdf N en May 28, 2021 155452329886410597 Errata Y N S12ZVC_0N23N/1N23N/0P81C/1P81C, Mask Set Errata for Mask 0N23N/1N23N/0P81C/1P81C 24 06 MAR 2015 English S12ZVC_0N23N: This report applies to mask 0N23N for S12ZVC families. 1426310592641695514204 PSP 200.4 KB None None documents None 1426310592641695514204 /docs/en/errata/S12ZVC_0N23N.pdf 200356 /docs/en/errata/S12ZVC_0N23N.pdf S12ZVC_0N23N documents N N 2015-03-13 S12ZVC_0N23N, Mask Set Errata for Mask 0N23N /docs/en/errata/S12ZVC_0N23N.pdf /docs/en/errata/S12ZVC_0N23N.pdf Errata N 155452329886410597 2022-12-07 pdf N en Mar 13, 2015 155452329886410597 Errata Y N S12ZVC_0N23N, Mask Set Errata for Mask 0N23N false 0 S12ZVC downloads ja true 1 Y PSP Y Y アプリケーション・ノート 9 /docs/en/application-note/AN10365.pdf 2016-10-08 1442088340466730481306 PSP 7 Oct 1, 2021 Application Note This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. PDF None /docs/en/application-note/AN10365.pdf English documents 1359519 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN10365.pdf AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf documents 645036621402383989 Application Note N en None Y pdf 8.0 N N AN10365, Surface mount reflow soldering - Application note 1.4 MB AN10365 N 1442088340466730481306 /docs/en/application-note/AN12943.pdf 2020-08-09 1597036142864696703430 PSP 8 Jun 30, 2020 Application Note Describing how the Spurious interrupt in S12Z family is a protective mechanism for unknown interrupt sources and makes CPU run under predictable action. The root cause to enter spurious interrupt is that an interrupt request becomes inactive after the interrupt has been recognized, but before the vector request. The synchronous and sequential operation could make the system robust and lower the possibility of entering the protective system mechanism. None /docs/en/application-note/AN12943.pdf English documents 311289 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN12943.pdf AN12943: Spurious interrupt on MagniV – Application Note /docs/en/application-note/AN12943.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN12943: Spurious interrupt on MagniV – Application Note 311.3 KB AN12943 N 1597036142864696703430 /secured/assets/documents/en/application-note/AN12086.pdf 2018-02-15 1518690072353719323097 PSP 9 Feb 18, 2018 Application Note Covering the operation and use of a simple serial Bootloader for the S12Z microcontroller families. The Bootloader can be a convenient way to support programming during production or “in-system”, where support for the dedicated Background Debug interface (BDM) may not be available. Users must pre-program the S12Z MCU with the Bootloader during production or at a programming vendor. Registration without Disclaimer /secured/assets/documents/en/application-note/AN12086.pdf English documents 530397 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN12086&lang_cd=ja AN12086: Simple Serial Bootloader for S12Z – Application Note /secured/assets/documents/en/application-note/AN12086.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN12086: Simple Serial Bootloader for S12Z – Application Note 530.4 KB AN12086 N 1518690072353719323097 /secured/assets/documents/en/application-note/AN4867.pdf 2016-10-31 1424410582795722817289 PSP 10 Jul 31, 2016 Application Note Containing hardware guidelines for designing with the S12ZVC family of S12 MagniV Mixed-signal MCUs. The S12 MagniV MC9S12ZVC family integrates a battery level (12 V) voltage regulator, supply voltage monitoring, high voltage inputs, and a CAN physical interface targeting CAN nodes like sensors, switch panels, or small actuators. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4867.pdf English documents 1644736 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4867&lang_cd=ja AN4867: Hardware Design Guidelines for S12ZVC – Application Note /secured/assets/documents/en/application-note/AN4867.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN4867: Hardware Design Guidelines for S12ZVC – Application Note 1.6 MB AN4867 N 1424410582795722817289 /docs/en/application-note/AN5082.pdf 2016-10-31 1426254102361716153980 PSP 11 Mar 15, 2015 Application Note Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. None /docs/en/application-note/AN5082.pdf English documents 425820 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5082.pdf AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5082: MagniV MCUs in 24V Applications – Application Note 425.8 KB AN5082 N 1426254102361716153980 /docs/en/application-note/AN5090.pdf 2021-07-21 1424928459674726100533 PSP 12 Feb 25, 2015 Application Note Providing details about the S12ZVC family, offering smart and optimized integration of high voltage components, with a high-reliability certification from its automotive context. This offers several advantages that can be leveraged in the industrial sector. None /docs/en/application-note/AN5090.pdf English documents 202384 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5090.pdf AN5090: Using the S12ZVC Device for Industrial Applications – Application Note /docs/en/application-note/AN5090.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5090: Using the S12ZVC Device for Industrial Applications – Application Note 202.4 KB AN5090 N 1424928459674726100533 /docs/en/application-note/AN4975.pdf 2016-10-31 1407932756289724724697 PSP 13 Aug 11, 2014 Application Note Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. None /docs/en/application-note/AN4975.pdf English documents 745522 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4975.pdf AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4975: Using MSCAN on the MagniV Family – Application Note 745.5 KB AN4975 N 1407932756289724724697 /docs/en/application-note/AN4851.pdf 2021-07-21 1387789947689696996386 PSP 14 Dec 23, 2013 Application Note Explaning the functions and advantages of the special high-resolution timers and PWM available in the MC9S12VC devices and their role in advanced timing applications. The TIM16B8CV3 module consists of a 16-bit software programmable counter driven by a flexible programmable Pre-scaler. This timer can be used for many purposes, including input waveform measurements while simultaneously generating an output waveform. None /docs/en/application-note/AN4851.pdf English documents 157909 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4851.pdf AN4851: Using the High-Resolution Timer and PWM in the S12ZVC – Application Note /docs/en/application-note/AN4851.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4851: Using the High-Resolution Timer and PWM in the S12ZVC – Application Note 157.9 KB AN4851 N 1387789947689696996386 /docs/en/application-note/AN4852.pdf 2021-07-21 1387794422591724191286 PSP 15 Dec 23, 2013 Application Note Describing the Single Edge Nibble Transmission (SENT) transmitter module in the S12VC 16-bit MCU while detailing how to use the SENT module in a typical application. None /docs/en/application-note/AN4852.pdf English documents 342547 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4852.pdf AN4852: Using the SENT Transmitter Module in S12ZVC Devices – Application Note /docs/en/application-note/AN4852.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4852: Using the SENT Transmitter Module in S12ZVC Devices – Application Note 342.5 KB AN4852 N 1387794422591724191286 アプリケーション・ノート・ソフトウェア 4 /docs/en/application-note-software/AN12086SW.ZIP 2018-02-19 1519031338444714652439 PSP 17 Feb 18, 2018 Application Note Software AN12086, This application note covers the operation and use of a simple serial Bootloader for the S12Z microcontroller families. None /docs/en/application-note-software/AN12086SW.ZIP English documents 1999011 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN12086SW.ZIP AN12086SW - Application note software for AN12086 /docs/en/application-note-software/AN12086SW.ZIP documents 789425793691620447 Application Note Software N en None Y ZIP 0 N N AN12086SW - Application note software for AN12086 2.0 MB AN12086SW N 1519031338444714652439 /docs/en/application-note-software/AN4975SW.zip 2016-10-31 1407931813427736255742 PSP 18 Aug 12, 2014 Application Note Software AN4975SW: This application note provides a simple MSCAN driver which will allow the user to enable CAN communications on any of the MagniV<sup>&#174;</sup> devices. None /docs/en/application-note-software/AN4975SW.zip English documents 813956 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN4975SW.zip AN4975SW: Using MSCAN on the MagniV Family - Application notes software /docs/en/application-note-software/AN4975SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N AN4975SW: Using MSCAN on the MagniV Family - Application notes software 814.0 KB AN4975SW N 1407931813427736255742 /docs/en/application-note-software/AN4852SW.zip 2013-12-23 1387794286646713223077 PSP 19 Dec 23, 2013 Application Note Software AN4852: This application note describes the Single Edge Nibble Transmission (SENT) transmitter module in the S12VC 16-bit microcontroller devices. SENT is targeted for use in those applications where high-resolution data is transmitted from a sensor to the ECU. None /docs/en/application-note-software/AN4852SW.zip English documents 246587 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4852SW.zip AN4852, Using the SENT Transmitter Module in S12ZVC Devices - Application Notes Software /docs/en/application-note-software/AN4852SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N AN4852, Using the SENT Transmitter Module in S12ZVC Devices - Application Notes Software 246.6 KB AN4852SW N 1387794286646713223077 /docs/en/application-note-software/AN4851SW.zip 2013-12-23 1387789420313693098310 PSP 20 Dec 23, 2013 Application Note Software AN4721: This application note explains the functions and advantages&#13;&#10;of the special high resolution timers and PWM available in the MC9S12VC devices and their role in advanced timing applications.&#13;&#10; None /docs/en/application-note-software/AN4851SW.zip English documents 248780 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4851SW.zip AN4721, S12ZVH: Hardware Design Guidelines - Application Notes software /docs/en/application-note-software/AN4851SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N AN4721, S12ZVH: Hardware Design Guidelines - Application Notes software 248.8 KB AN4851SW N 1387789420313693098310 エラッタ 2 /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf 2021-06-07 1623094910936716846012 PSP 23 May 28, 2021 Errata S12ZVC_0N23N/1N23N/0P81C/1P81C: This report applies to mask 0N23N/1N23N/0P81C/1P81C for S12ZVC families. None /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf English documents 146110 None 155452329886410597 2022-12-07 N /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf S12ZVC_0N23N/1N23N/0P81C/1P81C, Mask Set Errata for Mask 0N23N/1N23N/0P81C/1P81C /docs/en/errata/S12ZVC_0N23N_1N23N_0P81C_1P81C.pdf documents 155452329886410597 Errata N en None Y pdf 28 MAY 2021 N N S12ZVC_0N23N/1N23N/0P81C/1P81C, Mask Set Errata for Mask 0N23N/1N23N/0P81C/1P81C 146.1 KB S12ZVC_0N23N_1N23N_0P81C_1P81C N 1623094910936716846012 /docs/en/errata/S12ZVC_0N23N.pdf 2015-03-13 1426310592641695514204 PSP 24 Mar 13, 2015 Errata S12ZVC_0N23N: This report applies to mask 0N23N for S12ZVC families. None /docs/en/errata/S12ZVC_0N23N.pdf English documents 200356 None 155452329886410597 2022-12-07 N /docs/en/errata/S12ZVC_0N23N.pdf S12ZVC_0N23N, Mask Set Errata for Mask 0N23N /docs/en/errata/S12ZVC_0N23N.pdf documents 155452329886410597 Errata N en None Y pdf 06 MAR 2015 N N S12ZVC_0N23N, Mask Set Errata for Mask 0N23N 200.4 KB S12ZVC_0N23N N 1426310592641695514204 エンジニアリング・ブリテン 1 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 22 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=ja MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 カタログ 1 /docs/ja/brochure/MAGNIVFAMBR.pdf 2021-09-01 1630535268286723864752ja PSP 21 Nov 1, 2023 Brochure 統合されたS12 MagniV®ソリューションで、システム設計を簡素化するとともに市場投入までの期間を短縮できます None /docs/ja/brochure/MAGNIVFAMBR.pdf Japanese documents 1823754 None 712453003803778552 2025-02-07 N /docs/ja/brochure/MAGNIVFAMBR.pdf MagniV®ミックスド・シグナルMCU_パンフレット /docs/ja/brochure/MAGNIVFAMBR.pdf documents 712453003803778552 Brochure N ja None Y pdf 0 N N MagniV mixed-signal microcontrollers – Brochure 1.8 MB MAGNIVFAMBR N 1630535268286723864752 ファクト・シート 1 /docs/ja/fact-sheet/S12ZVCFS.pdf 2013-03-19 1362777600432704840519ja PSP 3 Nov 1, 2023 Fact Sheet ファクト・シート The S12ZVC family is part of the S12 MagniV<sup>&#174;</sup> portfolio of mixed-signal MCUs offering smart and optimized integration of high-voltage components. This new family is built upon LL18UHV technology that combines highly reliable 180 nm non-volatile memory along with the integration of high-voltage analog components on a single piece of silicon. None /docs/ja/fact-sheet/S12ZVCFS.pdf Japanese 278300 None Fact Sheet 2022-12-07 N /docs/ja/fact-sheet/S12ZVCFS.pdf S12 MagniV S12ZVC Family Fact Sheet /docs/ja/fact-sheet/S12ZVCFS.pdf documents 736675474163315314 Fact Sheet N Y ja None Y t523 1 N N S12 MagniV<sup>&#174;</sup> S12ZVC Family Fact Sheet 278.3 KB S12ZVCFS N 1362777600432704840519 ホワイト・ペーパ 1 /docs/en/white-paper/BODYDELECTRWP.pdf 2013-03-22 1363973213998718373269 PSP 4 Mar 22, 2013 White Paper ホワイト・ペーパ Drivers today are looking for new levels of comfort, safety, efficiency and consumer features in their vehicles. These requirements in the automotive world mirror those of society in general, with the &#8220;connected world&#8221; and machine-to-machine (M2M) communications being the current buzz. None /docs/en/white-paper/BODYDELECTRWP.pdf English 1444568 None White Paper 2023-06-19 N /docs/en/white-paper/BODYDELECTRWP.pdf Advancements in Body Electronics /docs/en/white-paper/BODYDELECTRWP.pdf documents 918633085541740938 White Paper N Y en None Y t530 pdf 0 N N Advancements in Body Electronics 1.4 MB BODYDELECTRWP N 1363973213998718373269 ユーザ・ガイド 2 /secured/assets/documents/en/user-guide/UBLUG.pdf 2020-03-30 1585586778554717783858 PSP 16 Mar 30, 2020 User Guide User Guide for the Unified Bootloader for the S32K1x, S12ZVC and S12ZVM MCUs Registration without Disclaimer /secured/assets/documents/en/user-guide/UBLUG.pdf English documents 1953836 None 132339537837198660 2024-07-15 Y /webapp/Download?colCode=UBLUG&lang_cd=ja Unified Bootloader – User Guide /secured/assets/documents/en/user-guide/UBLUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 1 Y N Unified Bootloader – User Guide 2.0 MB UBLUG N 1585586778554717783858 /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf 2016-10-31 1427754773142711857357 PSP 1 Apr 20, 2015 User Guide ユーザ・ガイド The MC9S12ZVC-Family is a new member of the S12 MagniV<sup>&#174;</sup> product line integrating a battery level (12V) voltage regulator, supply voltage monitoring, high voltage inputs and a CAN physical interface. Registration without Disclaimer /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf English 2446472 None User Guide 2023-06-18 Y /webapp/Download?colCode=GETTING-STARTED-S12ZVC&docLang=en Getting Started with the S12ZVC /secured/assets/documents/en/user-guide/GETTING-STARTED-S12ZVC.pdf documents 132339537837198660 User Guide N Y en Extended Y t792 pdf 1.0 Y N Getting Started with the S12ZVC 2.4 MB GETTING-STARTED-S12ZVC N 1427754773142711857357 リファレンス・マニュアル 3 /secured/assets/documents/en/reference-manual/DRM167.zip 2016-10-31 1439362214409704804278 PSP 5 Aug 11, 2015 Reference Manual DRM167: This design reference manual describes the design of a steering wheel controller using two buttons layout located at the sides of the wheel.&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/reference-manual/DRM167.zip English documents 4424645 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=DRM167&lang_cd=ja DRM167, Steering Wheel Controls Reference Design with S12ZVC Family /secured/assets/documents/en/reference-manual/DRM167.zip documents 500633505221135046 Reference Manual N en Extended Y zip 0 Y N DRM167, Steering Wheel Controls Reference Design with S12ZVC Family 4.4 MB DRM167 N 1439362214409704804278 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2016-10-31 1360836753606710339755 PSP 6 Jan 13, 2013 Reference Manual S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf English documents 2981526 None 500633505221135046 2024-07-15 Y /webapp/Download?colCode=S12ZCPURM&lang_cd=ja CPU S12Z Reference Manual - Reference Manual /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1.01 Y N CPU S12Z Reference Manual - Reference Manual 3.0 MB S12ZCPURM N 1360836753606710339755 /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf 2016-10-31 1425536851164718777256 PSP 2 Jun 20, 2023 Reference Manual リファレンス・マニュアル MC9S12ZVCRMV1: This document presents information about MC9S12ZVC-Family that offers various low-power modes and wakeup management to address state of the art power consumption requirements.&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf English 5400948 None Reference Manual 2023-06-21 Y /webapp/Download?colCode=MC9S12ZVCRM&docLang=en MC9S12ZVC-Family Reference Manual and Datasheet /secured/assets/documents/en/reference-manual/MC9S12ZVCRMV1.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 2.4 Y N MC9S12ZVC-Family Reference Manual and Datasheet 5.4 MB MC9S12ZVCRM N 1425536851164718777256 true Y Products

ドキュメント

クイック・リファレンス ドキュメンテーションの種類.

フィルタ

1-10 の 24 ドキュメント

コンパクトリスト

アプリケーション・ノート (9)
アプリケーション・ノート・ソフトウェア (4)
エラッタ (2)
エンジニアリング・ブリテン (1)
カタログ (1)
ファクト・シート (1)
ホワイト・ペーパ (1)
ユーザ・ガイド (2)
リファレンス・マニュアル (3)

デザイン・ファイル

クイック・リファレンス 設計・ファイルの種類.
フィルタ

2 設計・ファイル

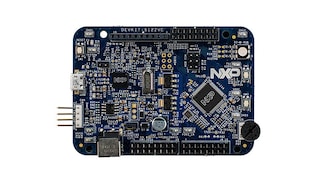

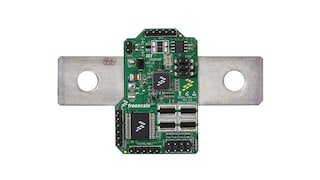

ハードウェア
