Enhanced Serial (Dual Ethernet, High-Speed USB) Tower System Module

TWR-SER2 アクティブ

画像にカーソルを合わせると拡大表示されます。

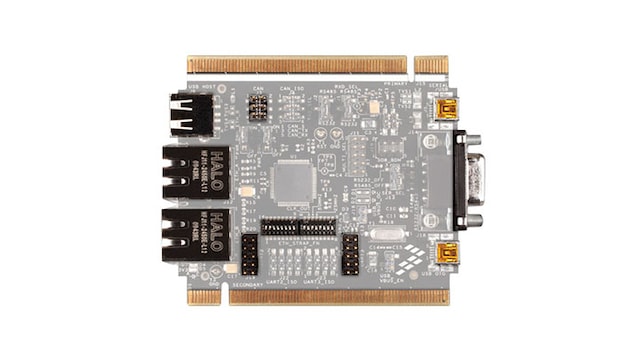

Offered as an enhanced module for the Tower® System, the TWR-SER2 serial module enables high-speed connectivity through dual Ethernet and high-speed USB.

  • This module provides Tower System designs with additional interfaces commonly required by feature-rich MPUs, including USB and dual-Ethernet, along with traditional CAN and RS485 features.
  • Simply connect this module to your MPU-based Tower System and get started designing quickly and easily.
  • Designed to be combined and used with other MCU and peripheral modules in the Tower System.
  • For a look at the standard serial module in the Tower System, with fewer features at a lower price, please click here.

製品詳細

Features

Connectivity

  • Industrial Ethernet PHY configurable as:
    • 10/100 dual or single port RMII
    • 10/100 single port MII
  • Industrial high-speed dual role USB (hostdDevice) over UPLI
  • Dedicated host mode USB port

Components

  • Four concurrent RS-232 serial transceivers, including one S08JS16 based serial-to-USB
  • RS485 transceiver
  • CAN transceiver

購入オプション

TWR-SER2-Image

クリックして展開

  • TWR-SER2
    アクティブ

  • Tower System, Peripheral Module, Enhanced Serial Connectivity, Dual Ethernet, High-Speed USB.

    • TWR-SER2 module
    • 1 Ethernet Cable
    • 1 USB Cable
    • Getting Started CD
    • Quick Start Guide document
  • の数量に対して 1
代理店からの注文
