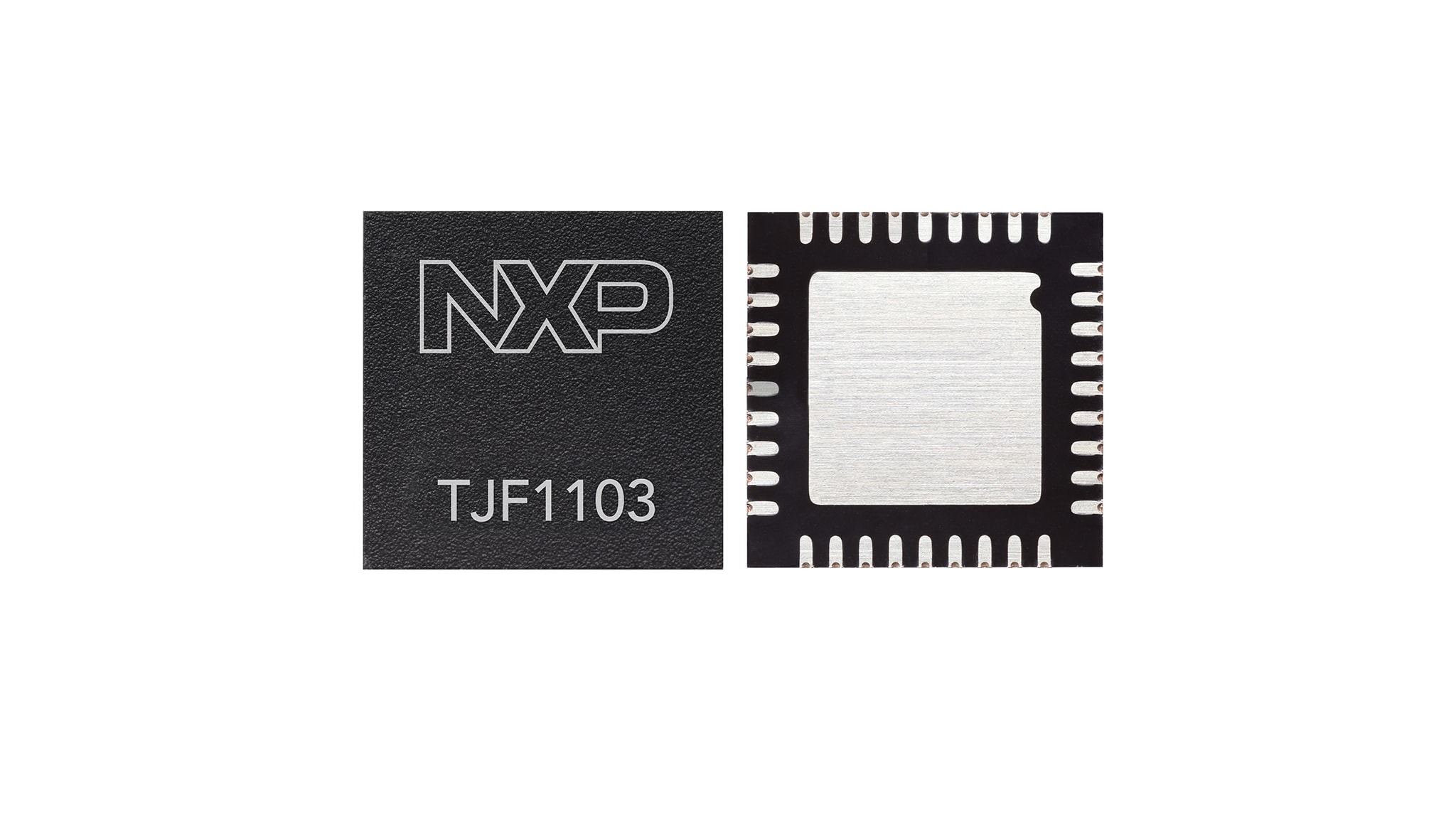

TJF1103, Industrial Ethernet 100BASE-T1 PHY Transceiver
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
TJF1103 is the third-generation product of NXP’s successful family of 100BASE-T1 Ethernet PHYs. It is perfectly suited to support the rapid expansion of Ethernet in the industrial space.
TJF1103 complies with all state-of-the-art conformance test specifications and is designed according to the QM requirement, providing enhanced monitoring and diagnostic features.
製品詳細
Features
Key Features
- Functional safety QM compliant
- IEEE802.3bw compliant 100BASE-T1 PHY
- OPEN Alliance TC-1 advanced PHY features
- Single supply capability
- HVQFN36 (6 x 6 mm) with wettable flanks
- Optimized for industrial use cases
- Includes startup self test
- Support -40 °C to 125 °C temperature grade
Important Information
- TJF1103 silicon, documentation and software are available for NDA customers only. For additional information, please contact support or your local sales representative
