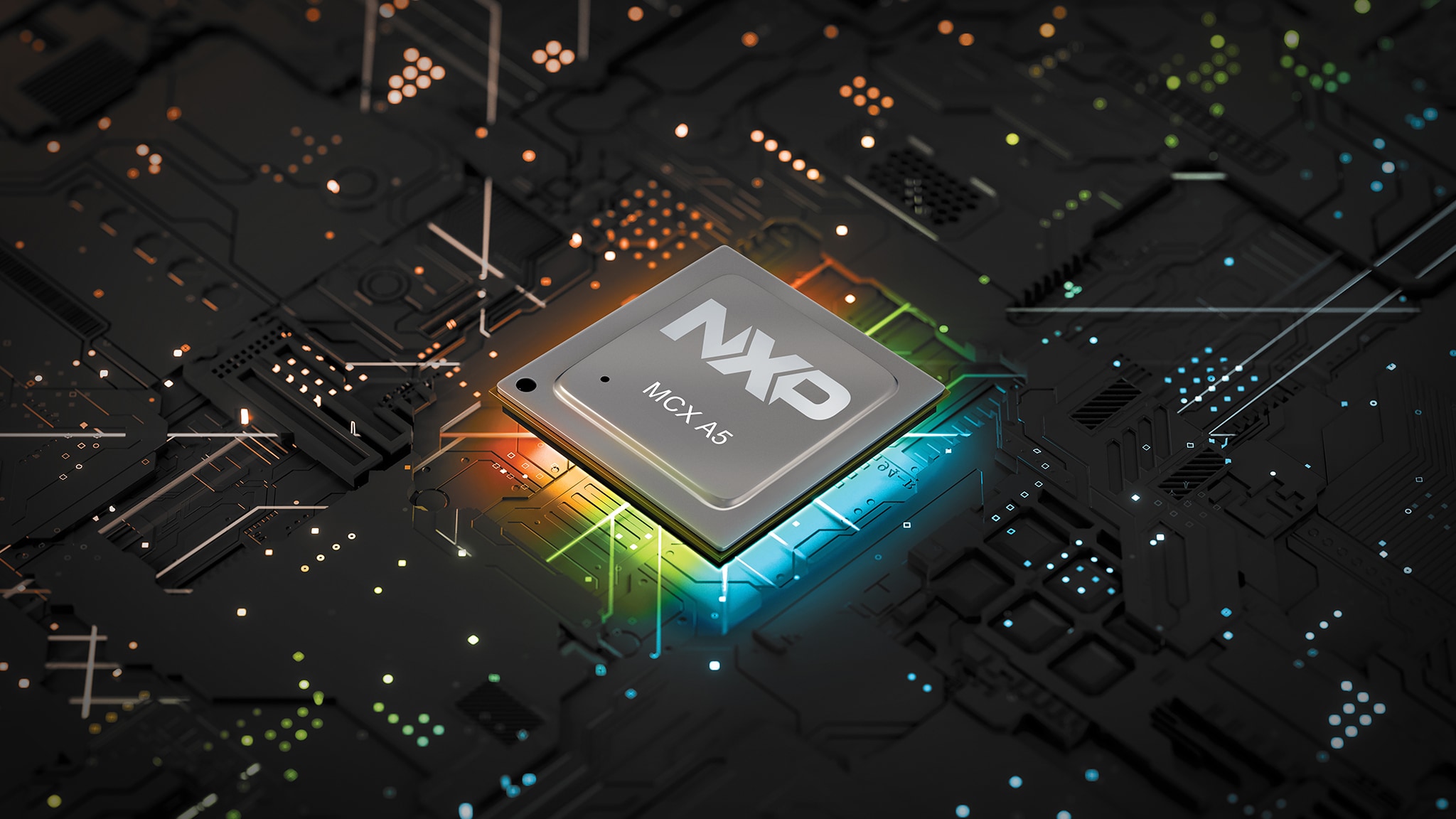

MCX A5 Series: 240 MHz Arm® Cortex®-M33 MCUs with Advanced Connectivity, Security and Rich Integration

MCX-A5
製造開始前
  • 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。

画像をクリックすると拡大します。

The MCX A5 devices are scalable microcontrollers in the MCX A Series designed for high-performance motor control and connected embedded control.

Optimized for connected industrial and secure edge applications, MCX A5 combines a 240 MHz Arm® Cortex®-M33 core with up to 2 MB Flash and 640 kB SRAM with advanced connectivity, rich analog integration, versatile serial interfaces and enhanced security capabilities. Integrated 10/100M Ethernet MAC and 10BASE-T1S (TJA1410) digital PHY helps simplify industrial networking, delivering the performance and integration needed to build reliable, connected and secure next-generation industrial and IoT systems. Along with our TJJF1410 10BASE-T1S PMD transceiver, NXP provides a complete system solution for the last mile Ethernet networking.

The MCUXpresso Developer Experience provides software tools, application examples and expansion resources to support development, including the Expansion Board Hub (EBH) for add-on boards and the Application Code Hub (ACH) for software examples, with evaluation available through the FRDM-MCXA577 development boards to simplify prototyping and feature exploration.

ブロック図

MCX A5

MCX A5 Arm® Cortex-M33 MCUs
図を取得する PDF

Features

Core and Performance

  • Arm Cortex-M33 up to 240 MHz with 988.8 CoreMark (4.12 CoreMark/MHz)
  • FPU, DSP, MPU and TrustZone support
  • SmartDMA co-processor

Memory

  • Up to 2 MB dual-bank Flash with ECC and read-while-write
  • 16 kB cache engine
  • Up to 640 kB SRAM, configurable as up to 64 kB RAM with ECC
  • 24 kB RAM retained down to VBAT mode

Security

  • Enhanced security with secure boot, secure firmware update, secure debug and life cycle management, hardware crypto acceleration, key management and PQC-capable security support
  • Designed with a security architecture targeting PSA Level 3 and SESIP Level 3 certification

Serial Interfaces

  • Up to 6x LPUART
  • Up to 5x LPI²C
  • Up to 6x LPSPI
  • Up to 4x I3C
  • Up to 1x FlexIO

Connectivity

  • Up to 1x USB High-Speed Host/Device with on-chip HS PHY
  • Up to 2x CAN FD
  • Up to 1x FlexSPI
  • eSPI
  • TSI

Ethernet Connectivity

  • Up to 1x 10BASE-T1S Digital PHY
  • Up to 1x Ethernet MAC can support MII / RMII / Ethernet interface depending on device configuration

Analog

  • Up to 2x 16-bit ADC
  • Up to 2x 12-bit DAC
  • Analog comparators
  • Voltage reference
  • Integrated temperature sensor

Timers and Control Peripherals

  • Up to 5x 32-bit timers
  • Low-power timer
  • Frequency measurement
  • Up to 2x Windowed watchdog timers
  • Wake timer
  • Micro-tick timer
  • OS event timer
  • RTC
  • PWM / event timing resources

GPIO and Packages

  • Up to 134 GPIOs
  • Up to 4x high-drive 20 mA I/Os
  • WFBGA169
  • LQFP144
  • LQFP100

Power and Operating Range

  • 1.71 V to 3.6 V operating voltage
  • 1.2 V independent I/O supply support
  • Low-power modes
  • Wake-up sources down to deep power-down mode
  • Operating temperature range up to 125° C junction temperature
