8-bit USB Cost-Effective JM MCUs

The S08JM family extends NXP’s entry-level USB portfolio. Featuring on-chip USB 2.0 full-speed device support, it provides a fast, economical and easy way to standardize serial communications in industrial and consumer applications. All MCUs in the S08JM family use the enhanced S08 core. Additionally, NXP® provides two complimentary USB software stacks to help designers simplify applications with USB functionality: USB-LITE Stack by CMX and the USB-MINI Stack by NXP.

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

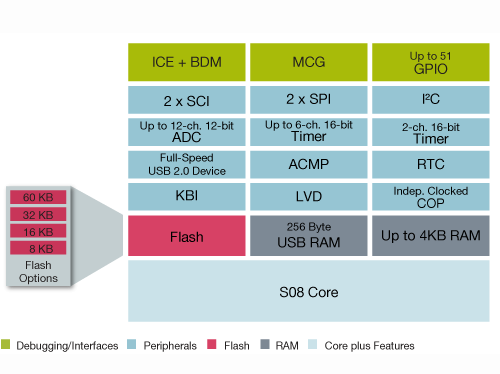

Freescale S08JM Microcontroller Block Diagram

図を取得する PDF

Features

8-bit HCS08 Central Processing Unit (CPU)

Up to 24 MHz internal bus (48 MHz HCS08 core) frequency offering 2.7 to 5.5V across temperature range of -40°C to +85°C
Support for up to 32 peripheral interrupt/reset sources

On-Chip Memory

Up to 60K flash read/program/erase over full operating voltage and temperature
Up to 4K RAM
256 Byte USB RAM

Power-Saving Modes

Wait plus two stop modes
Multi-purpose clock generator (MCG)

Peripherals

USB Device Module
Analog comparators (ACMP)—Analog comparator with option to compare to internal reference
Analog to digital converter (ADC)—12-channel, 12-bit resolution
Two serial communications interface (SCI) modules offering asynchronous communications
I²C with up to 100 kbps maximum bus loading
- multi-controller operation
- programmable target address
- interrupt driven byte-by-byte data transfer
- supports broadcast mode and 10-bit addressing
SPI—Two serial peripheral interfaces with full-duplex or single-wire bidirectional
- double-buffered transmit and receive
- leader or follower mode;
- MSB-first or LSB-first shifting
Timer pulse width modulation (TPM)—Up to eight channels

Input/Output

Up to eight keyboard interrupt (KBI) pins with selectable polarity
51 general-purpose input/outputs (GPIO) and one input-only and one output-only pin

System Protection

Watchdog computer operating properly (COP) reset
- option to run from dedicated 1 kHz internal clock source or bus clock
Low-voltage detection with reset or interrupt
- selectable trip points
Illegal op code detection with reset
Flash block protection

Hardware Development Support

Single-wire background debug interface
Breakpoint capability
On-chip in-circuit emulator (ICE) debug module
