MPC561/2/3/4 General Purpose Evaluation Board

MPC564EVB

画像にカーソルを合わせると拡大表示されます。

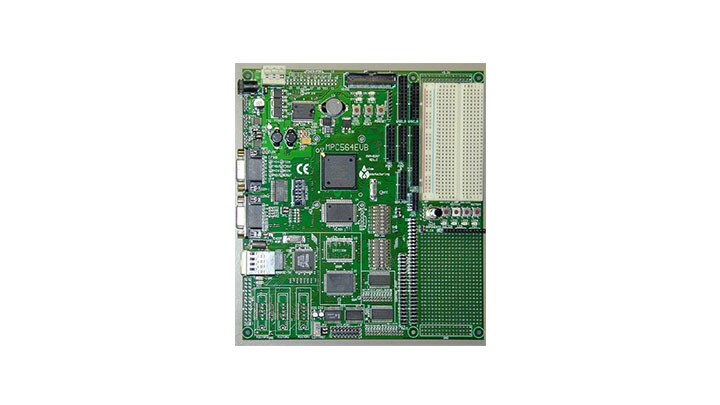

The MPC564EVB is an MPC564-based evaluation board that can be used for the development and test of MCU systems. The evaluation board is a development and test platform for software and hardware for the MPC564. The system provides for development of target applications for the similar MPC561, MPC562, or MPC563 MCUs also. It can be used by software and hardware developers to test programs, tools, or circuits without having to develop a complete MCU system.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

5xxコントローラ

  • MPC561: 32-bit Microcontrollers
  • MPC562: 32-bit Microcontrollers
  • MPC563: 32-bit Microcontrollers
  • MPC564: 32-bit Microcontrollers

Features

Memory

  • Standard 32-bit data memory: 512 kB Fast SRAM, 2 MB Flash EPROM

Connectivity

  • BDM Debug development connector
  • Nexus 5001 50 pin standard connector
  • 10/100 Ethernet MAC+PHY
  • 2 CAN Ports with transceivers (PCA82C250)
  • 2 serial ports with DB-9 connectors
  • All I/O connectors on 0.1" grid

Power Management

  • MC33394 Multi-Output Power Supply with 1 CAN Port and transceiver
  • Power Port with power supply access
  • 6 to 25 VDC Input
  • Typical Operating Power: 400 ma @ 40 MHz

Display

  • LCD Interface Connector with Contrast Adjust, Memory Mapped (80 or 160 character)
  • Evaluation Board and Power Supply have CE Certification
  • Solderless and Standard Prototyping areas provided
  • Includes a wiggler for interface to a computer
  • User Manual included in kit
