Multimedia Applications Processors - Low-Power, High-Performance, Arm9™ Core

i.MX280 アクティブ

動画の上をクリックすると再生されます。

The i.MX280 is a low-power, high-performance applications processor optimized for the general embedded industrial and consumer markets. The core of the i.MX280 is Our fast, proven, power-efficient implementation of the Arm926EJ-S™ core, with speeds of up to 454 MHz. Ideal for building applications that do not require a display such as media and smart energy gateways/managers, handheld printers and scanners or communications modules, the i.MX280 comes with a comprehensive suite of software and tools to get you started today.

ブロック図

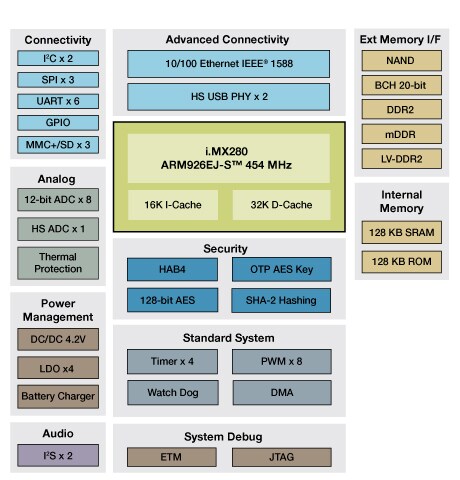

i.MX280 Applications Processor Block Diagram

i.MX280 Multimedia Applications Processor Block Diagram
図を取得する PDF

Features

  • NAND support – SLC/MLC and eMMC 4.4 managed
  • Hardware BCH (up to 20-bit correction)
  • 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support
  • Dual High-speed USB with embedded PHY
  • 8 General purpose 12-bit ADC channels and single 2 Msps ADC channel
  • Temperature sensor for thermal protection
  • Multiple connectivity ports (UART, SSP, SDIO, SPI, I2C, I2S)
  • 3.3V I/O, 10 year lifetime (Industrial)
  • Package and Temperature
    • 289 BGA 14x14mm .8mm
    • -20C to +70C (Consumer)
  • -40C to +85C (Industrial)
  • This product is included in NXP's product longevity program, with assured supply for a minimum of 15 years after launch
