TWRPI-KEYPAD - Schematics
12-key Capacitive Touch Keypad Plug-In for the Tower System
TWRPI-KEYPAD アラートの受信

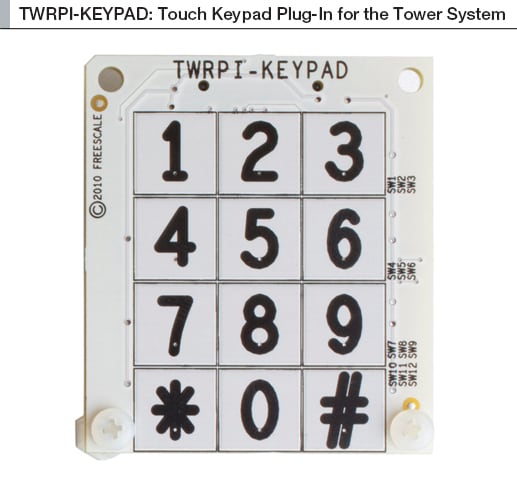

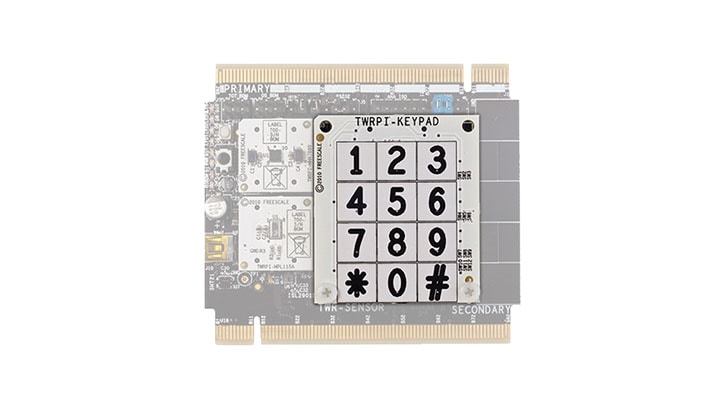

The TWRPI-KEYPAD capacitive touch keypad plug-in for the NXP® Tower® System lets you add keypad functionality to your embedded designs. This plug-in, or daughter card, is compatible with Tower System modules that feature touch pad Tower plug-in sockets. Simply place the TWRPI-KEYPAD onto a parent controller or peripheral module, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
K6xイーサネット
K7xグラフィックLCD
- K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core
Features
- 12 discrete capacative electrodes
- Electrodes are arranged in a 12-key numeric telephone-keypad layout
- Supported by the TSS library
- Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets
