10BASE-T1S PMD Industrial Transceiver
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

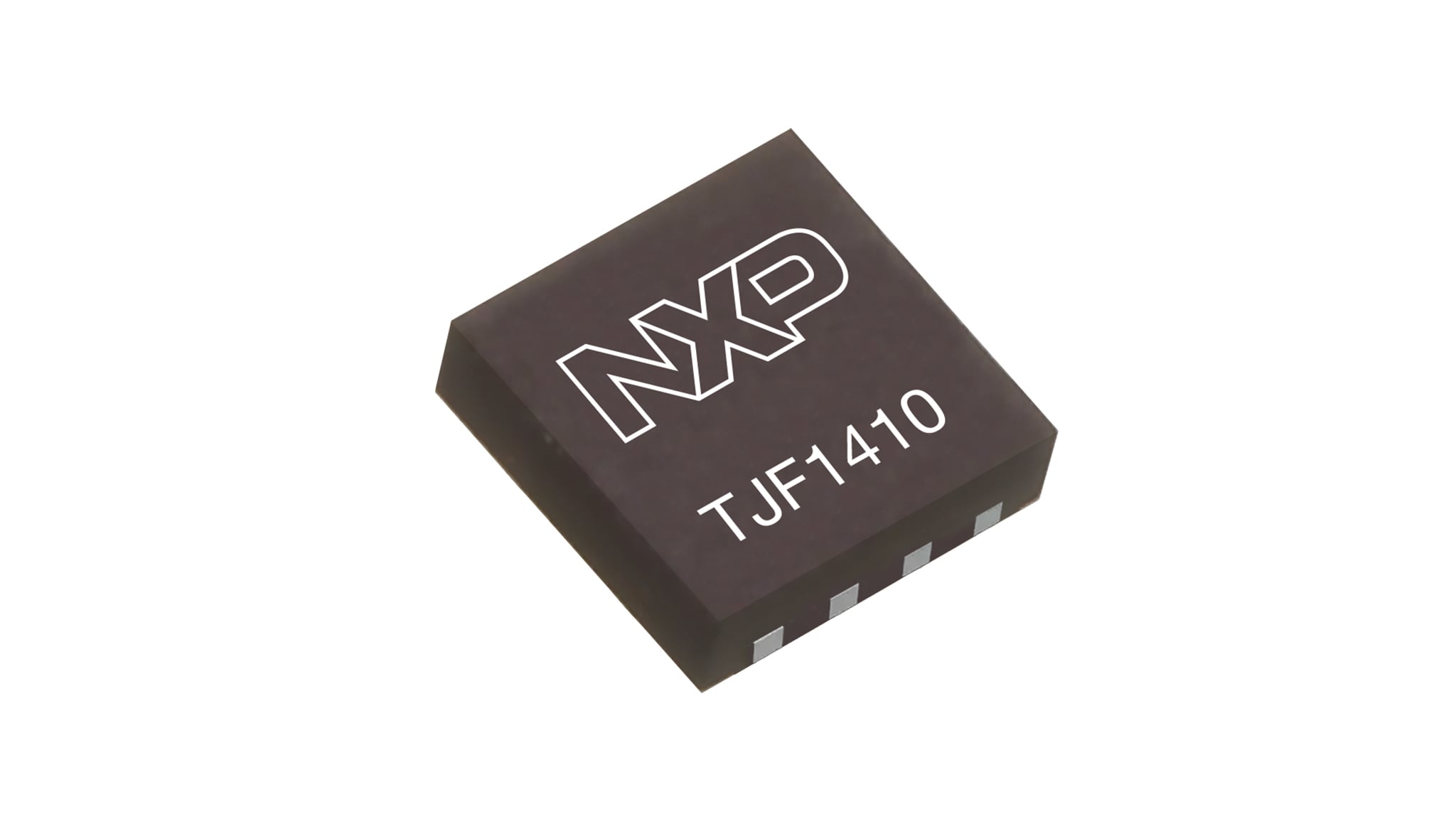

TJF1410 is NXP’s 10BASE-T1S OA TC14 specification compliant PMD transceiver for 10 Mbps industrial Ethernet applications. It communicates over the OA 3-pin interface with a host MCU or switch, which must have the 10BASE-T1S digital PHY. The device is a cost-effective solution for 10BASE-T1S connectivity, and comes in a compact HVSON8 (3 x 3 mm) low footprint package. It ensures high signal quality even in challenging electromagnetic environments, while having a low quiescent current and supporting advanced diagnostics features such as topology discovery as specified in OA TC14. The TJF1410 complies with all OA TC14 conformance test specifications. It also supports OPEN Alliance TC10-TC14 wake signal over the ethernet data line and is fully compatible with a power over data line implementation. It can support use cases up to 32 nodes on a 10BASE-T1S bus and cable lengths up to 100m.
製品詳細
Features
General
- Low footprint HVSON8 (3 mm x 3 mm) package
- Compatible with Power Over Data Line
- Supports up to 32 nodes
- Supports up to 100m cables
- Best-in-class EMC performance
Power Consumption
- Low quiescent current
Compliance
- Compliant to IEEE802.3cg and OPEN Alliance TC14 specifications
- OPEN Alliance TC14-TC10 wake support
- OPEN Alliance TC14 advanced diagnostics topology discovery
