2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution
IW416 アラートの受信

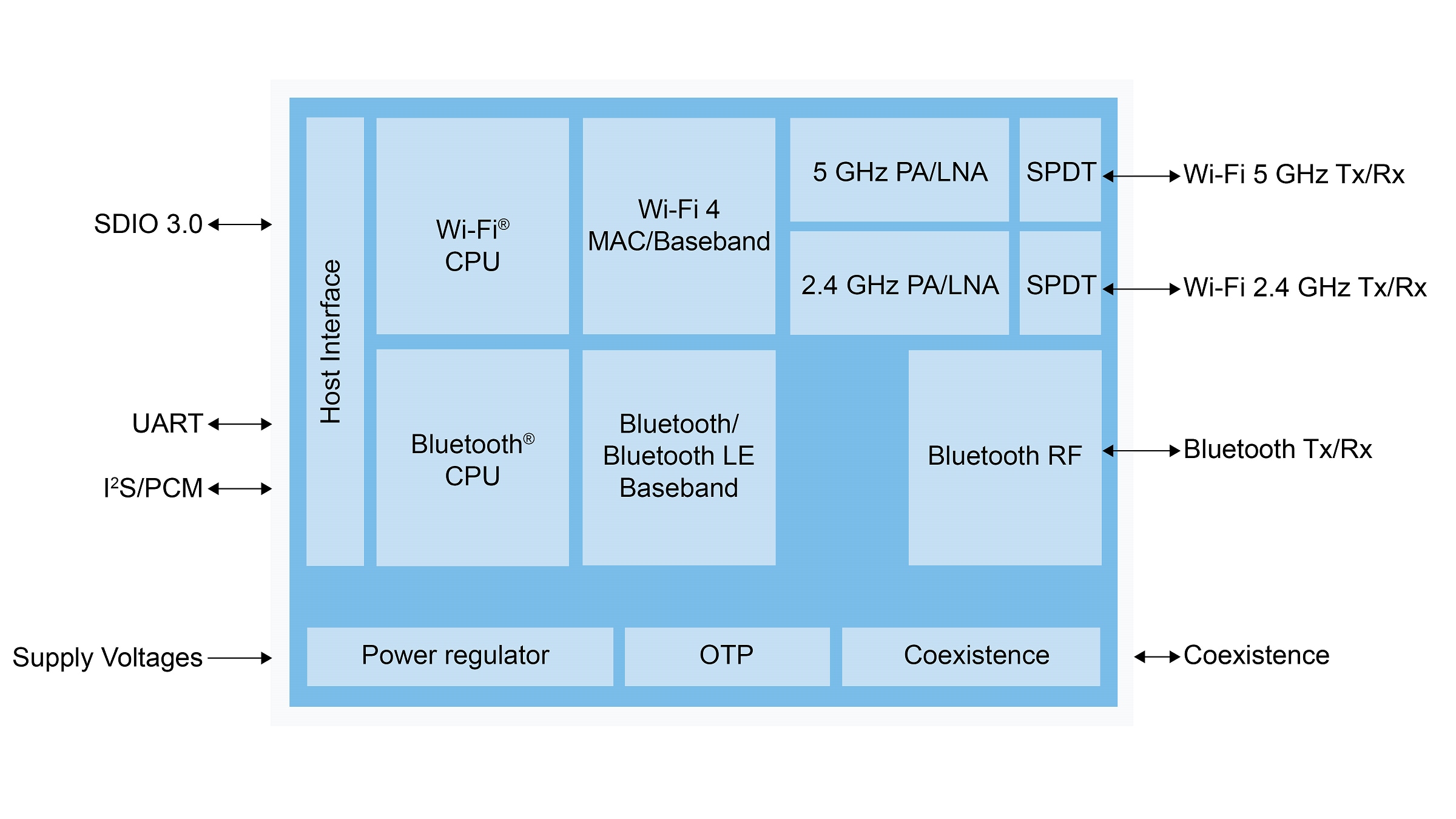

The IW416 is a highly integrated Wi-Fi 4 and Bluetooth 5.2 System-on-Chip (SoC) enabling a low-cost connectivity solution. Supporting a 1x1 SISO Wi-Fi operation in the 2.4 GHz and the 5 GHz band, the SoC provides a full-feature Wi-Fi subsystem with a peak PHY date rate of 150 Mbit/s. In addition to classic Bluetooth features, the IW416 enables Bluetooth 5.2 capabilities including Low Energy (LE), LE long range, LE 2 Mbps, and Periodic Advertising Sync Transfer (PAST).

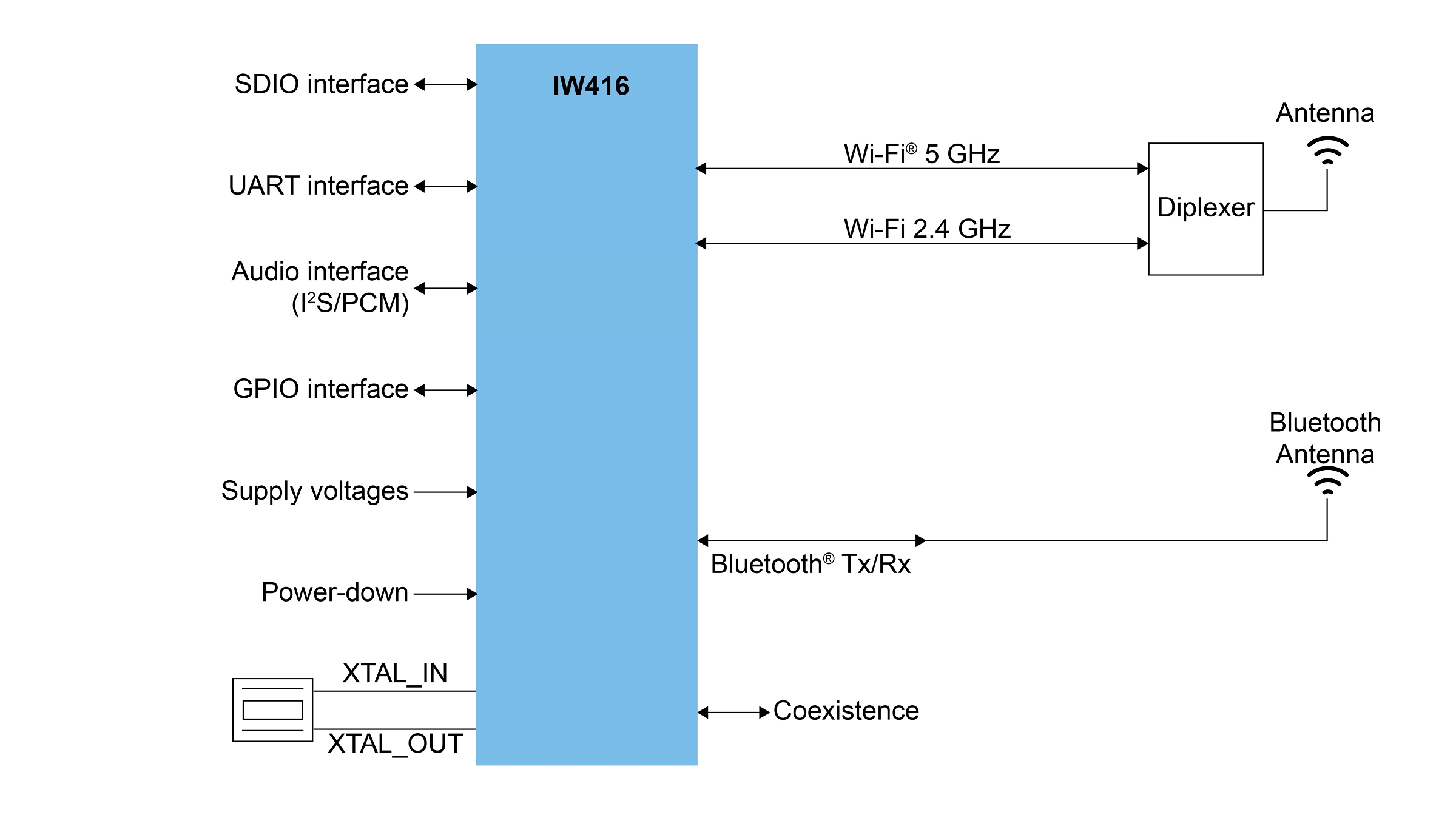

With integrated transmit (Tx) PAs, receive (Rx) LNAs and Tx/Rx switches for the Wi-Fi and Bluetooth radios, the IW416 simplifies design allowing quick integration of either dual or single-antenna operation. The dual-antenna configuration enables simultaneous Wi-Fi and Bluetooth operation. With the single-antenna configuration, simultaneous 5 GHz Wi-Fi and Bluetooth is supported. In the 2.4 GHz band, the single-antenna configuration allows arbitrated transmit and receive operation of Wi-Fi and Bluetooth.
Promoting synergistic operation, the IW416 implements advanced Wi-Fi and Bluetooth co-existence hardware in conjunction with algorithms to optimize collaborative performance. In addition, support for external radio co-existence is provided through an external interface.
Available in both HVQFN and WLCSP packages, the IW416 supports an SDIO host interface for the Wi-Fi radio and a UART host interface for Bluetooth.
Wireless modules based on the NXP IW416 are offered by leading module manufacturers.
製品詳細
Features
Wi-Fi Key Features
- Support 802.11a/b/g/n
- Dual band: 2.4 GHz and 5 GHz
- Single stream 802.11n with 20 MHz and 40 MHz channels
- Up to MCS7 data rates (150 Mbit/s)
- Dynamic Rapid Channel Switching (DRCS) for simultaneous operation in 2.4 GHz and 5 GHz bands
- IEEE 802.15.2 packet traffic arbiter (PTA) coexistence interface to coexist with 802.15.4, and other external radios
- Security: WPA3, WPA2, WPA2-WPA mixed mode
- SDIO host interface
Bluetooth Key Features
- Bluetooth 5.2 support
- Long range - 4x coverage
- 2 Mbit/s data rate - 2x faster
- Improved advertisement capacity- enables more IoT services
- I2S and PCM interfaces
- AES Security
- UART host interface
Operating Temperature Range
- 0 to 70°C
- -40 to 85°C
Partner Modules
Wi-Fi 4 (802.11n) 2.4/5 GHz Dual-Band 1x1 + Bluetooth® 5.2

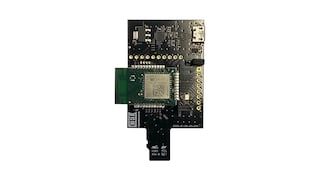

| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
| AW-AM457-D |
SDIO | UART | 0 to 70 | Antenna pin(s) | 2 | SMD | 15 x 15 x 2.5 | CE, FCC, IC | i.MX / i.MX RT |
| AW-AM457MA-D |
SDIO | UART | 0 to 70 | U.FL Connector(s) | 2 | M.2 E-Key | 30 x 22 x 2.85 | CE, FCC, IC | i.MX / i.MX RT |
| AW-AM510 |
SDIO | UART | 0 to 70 | Antenna pin(s) | 1 | SMD | 12 x 12 x 2 | CE, FCC, IC | i.MX / i.MX RT |
| AW-AM510-I |
SDIO | UART | -40 to 85 | Antenna pin(s) | 1 | SMD | 12 x 12 x 2 | CE, FCC, IC, Japan | i.MX / i.MX RT |
| AW-AM510MA |
SDIO | UART | 0 to 70 | U.FL Connector(s) | 1 | M.2 E-Key | 30 x 22 x 2.85 | CE, FCC, IC | i.MX / i.MX RT |
| CMP9010-1-B |
SDIO | UART | -40 to 85 | On-board | 1 | SMD | 16.64 x 27.8 x 3.47 | FCC IC CE | i.MX / i.MX RT |
| CMP9010-1C-B |
SDIO | UART | -40 to 85 | External | 1 | SMD | 16.64 x 27.8 x 3.47 | FCC IC CE | i.MX / i.MX RT |
| CMP9010-1C-R |
SDIO | UART | -40 to 85 | External | 1 | SMD | 16.64 x 27.8 x 3.47 | FCC IC CE | i.MX / i.MX RT |
| CMP9010-1-R |
SDIO | UART | -40 to 85 | On-board | 1 | SMD | 16.64 x 27.8 x 3.47 | FCC IC CE | i.MX / i.MX RT |
| CMP9010-9-R |
SDIO | UART | -40 to 85 | External | 1 | SMD | 12 x 12 x 1.85mm | N/A | i.MX / i.MX RT |
| LBEE5CJ1XK-687 |
SDIO | UART | -40 to 85 | 1 | SMD | 9.1 x 8.3 x 1.3 | CE, FCC, IC MIC (Japan) | i.MX / i.MX RT | |
| LBEE5ZZ2XK-845 |
SDIO | UART | -40 to 85 | 2 | SMD | 9.1 x 8.3 x 1.3 | CE, FCC, IC MIC (Japan) | i.MX / i.MX RT | |
| M2-MAYA-W161 |
SDIO | UART, PCM/I²S | -40 to 85 | U.FL Connectors | 2 | M.2 card | 22.0 x 30.0 x 2.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
| M2-MAYA-W166 |
SDIO | UART, PCM/I²S | -40 to 85 | Embedded antenna | 1 | M.2 card | 22.0 x 30.0 x 2.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
| MAYA-W160-00B |
SDIO | UART, PCM/I²S | -40 to 85 | U.FL connectors(s) | 2 | SMD | 10.4 x 14.3 x 1.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
| MAYA-W161-00B |
SDIO | UART, PCM/I²S | -40 to 85 | Antenna pins | 2 | SMD | 10.4 x 14.3 x 1.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
| MAYA-W166-00B |
SDIO | UART, PCM/I²S | -40 to 85 | Embedded antenna | 1 | SMD | 10.4 x 14.3 x 1.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
| MAYA-W166-01B |
SDIO | UART, PCM/I²S | -40 to 85 | Emb. Antenna / pin | 1 | SMD | 10.4 x 14.3 x 1.8 | ISO-16750 | i.MX 6/7/8 i.MX RT |
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
設計・リソース
ハードウェア
1-5 の 6 ハードウェア提供
-
評価・開発ボードAW-AM510 Evaluation Board
-
-
評価・開発ボードMCU/RTOSホスト型Matter開発プラットフォーム
-
追加ハードウェアを利用可能 パートナー・ソリューションの特集を表示.
-

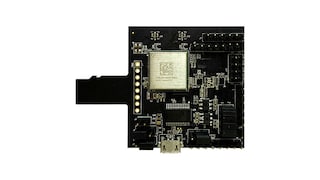

評価・開発ボードAW-AM457-D Evaluation Board
-
