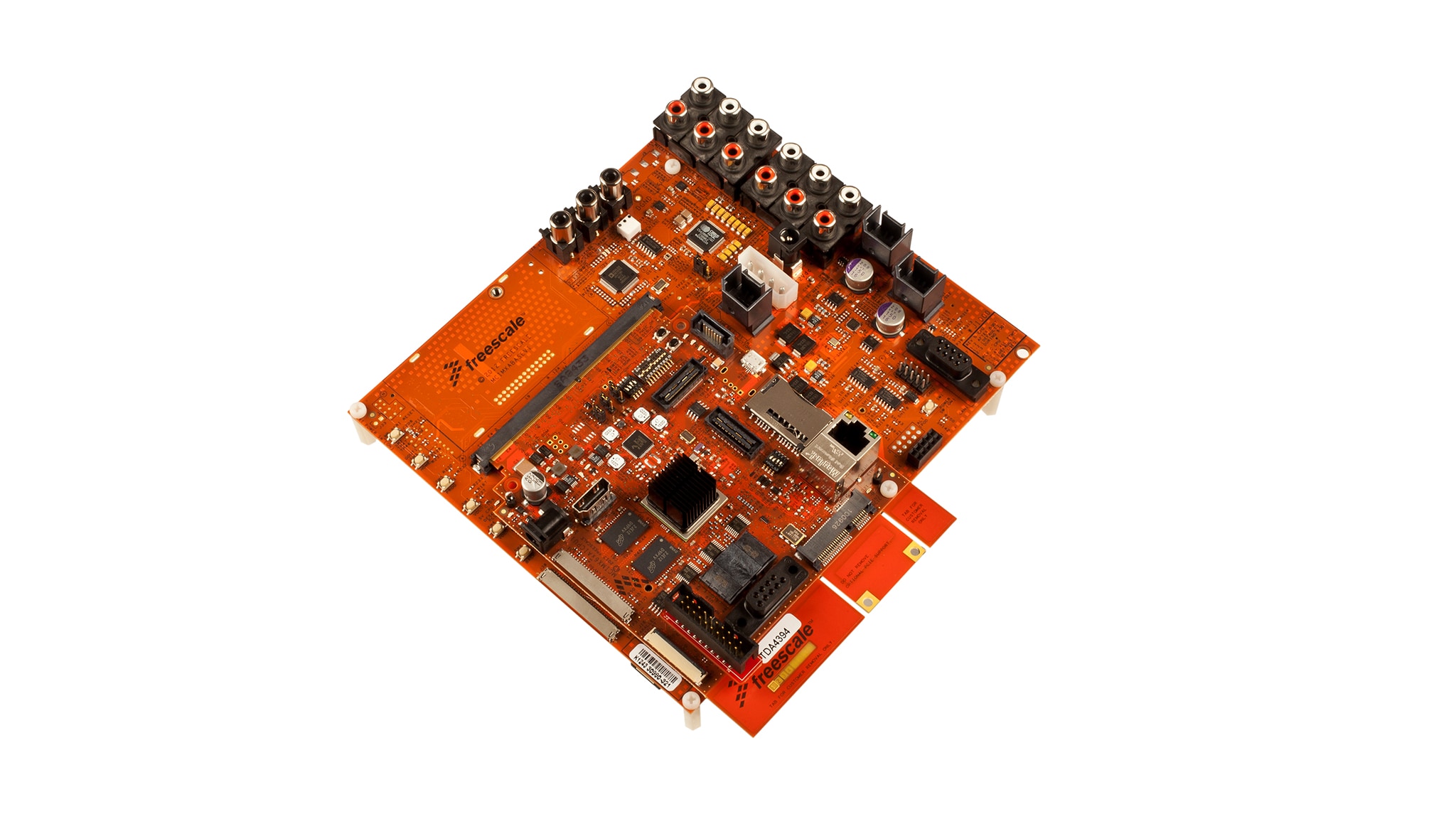

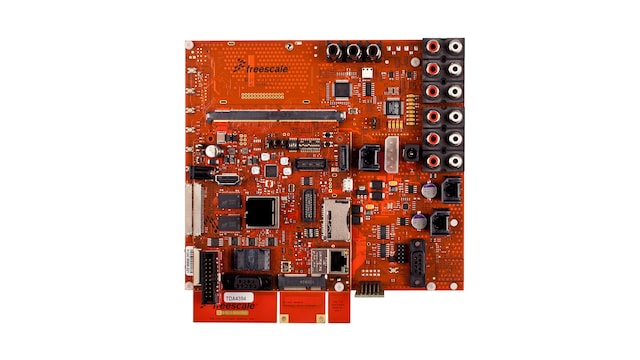

SABRE for Automotive Infotainment Based on the i.MX 6 Series

RDIMX6SABREAUTO アクティブ

画像にカーソルを合わせると拡大表示されます。

The Smart Application Blueprint for Rapid Engineering (SABRE) for automotive infotainment offers a solid foundation for the next-generation infotainment, instrument cluster, telematics and rear seat entertainment designs.

  • Based on i.MX 6 series of applications processors, our scalable implementation of the Arm® Cortex®-A9 CPU cores
  • Single-, dual- and quad-core offerings, processing speeds up to 1 GHz, and a high level of automotive-specific integration, the SABRE for automotive infotainment enables customers to rapidly deploy today's consumer user experiences in the car

対応製品

プロセッサ＆マイクロコントローラ

i.MX 6プロセッサ

  • i.MX6DL: i.MX 6DualLite Processors – Dual-Core, 3D Graphics, HD Video, Arm® Cortex®-A9 Core
  • i.MX6Q: i.MX 6Quad Processors - High-Performance, 3D Graphics, HD Video, Arm® Cortex®-A9 Core
  • i.MX6QP: i.MX 6QuadPlus Processor - Quad-Core, High-Performance, Advanced 3D Graphics, HD Video, Advanced Multimedia, Arm® Cortex®-A9 Core

Features

Processor

  • i.MX 6QuadPlus processor running up to 1 GHz, i.MX 6Quad processor running up to 1 GHz or i.MX 6Dual Lite processor running up to 800 MHz * i.MX 6QuadPlus, i.MX 6Quad and i.MX 6Dual Lite can be configured as an i.MX 6DualPlus, i.MX 6Dual, and i.MX 6Solo processor for lower CPU load applications

Connectivity

  • MIPI CSI interface
  • SD Card Interface
  • High-speed USB OTG interface
  • 1.5 Gb/s SATA interface (i.MX 6Quad only)
  • Ethernet interface
  • MLB 150 INIC interface

Display

  • LVDS output
  • HDMI display interface

Memory

  • 2 GB x 64 DDR3 running up to 532 MHz (1066 MHz DDR): i.MX 6Quad Plus and i.MX 6Quad CPU cards
  • 2 GB x 64 DDR3 running up to 400 MHz (800 MHz DDR): i.MX 6Dual Lite CPU card
  • 32 MB 16-bit parallel NOR flash
  • 8-bit NAND flash socket

Debug

  • JTAG and UART interfaces

Connectivity

  • I²C module connector
  • De-serializer input for video/camera input
  • Triple video DAC with analog video inputs for video/camera input
  • Dual USB host connectors
  • GPS module connector (UART)
  • Bluetooth® module connector (I²S + UART)
  • SD card interface (Wi-Fi® modules or data cards)
  • MLB 25/50 INIC interface
  • Low and high-speed CAN interfaces

Display

  • Second LVDS output

Audio

  • Multichannel audio codec and I/O for up to eight channel outputs, one stereo line input, and two microphone inputs
  • Broadcast tuner module connector
  • Sirius/XM radio module connector
  • S/PDIF receive interface

購入オプション

MCIMXABASEV1-Image

クリックして展開

  • MCIMXABASEV1
    アクティブ

  • SABRE Automotive Platform, Hardware, i.MX 6Quad/6Dual/6DualLite/6Solo, Expansion Board.

  • の数量に対して 1
代理店からの注文
MCIMX6QAICPU2-Image

クリックして展開

  • MCIMX6QAICPU2
    アクティブ

  • SABRE Automotive Platform, Hardware, i.MX 6Quad/6Dual, No Display, No Camera.

  • $1299.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
MCIMX6QPAICPU3-Image

クリックして展開

  • MCIMX6QPAICPU3
    アクティブ

  • i.MX 6QuadPlus/DualPlus SABRE Automotive Platform CPU Card.

  • $799.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
