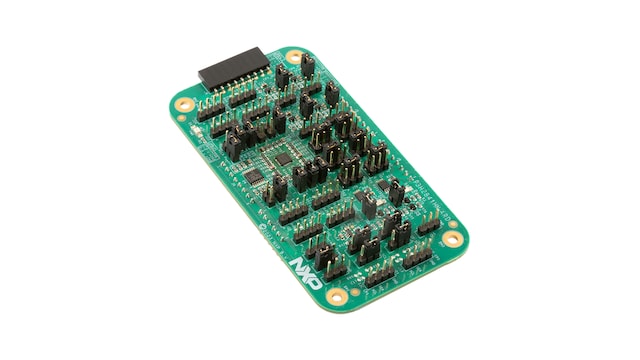

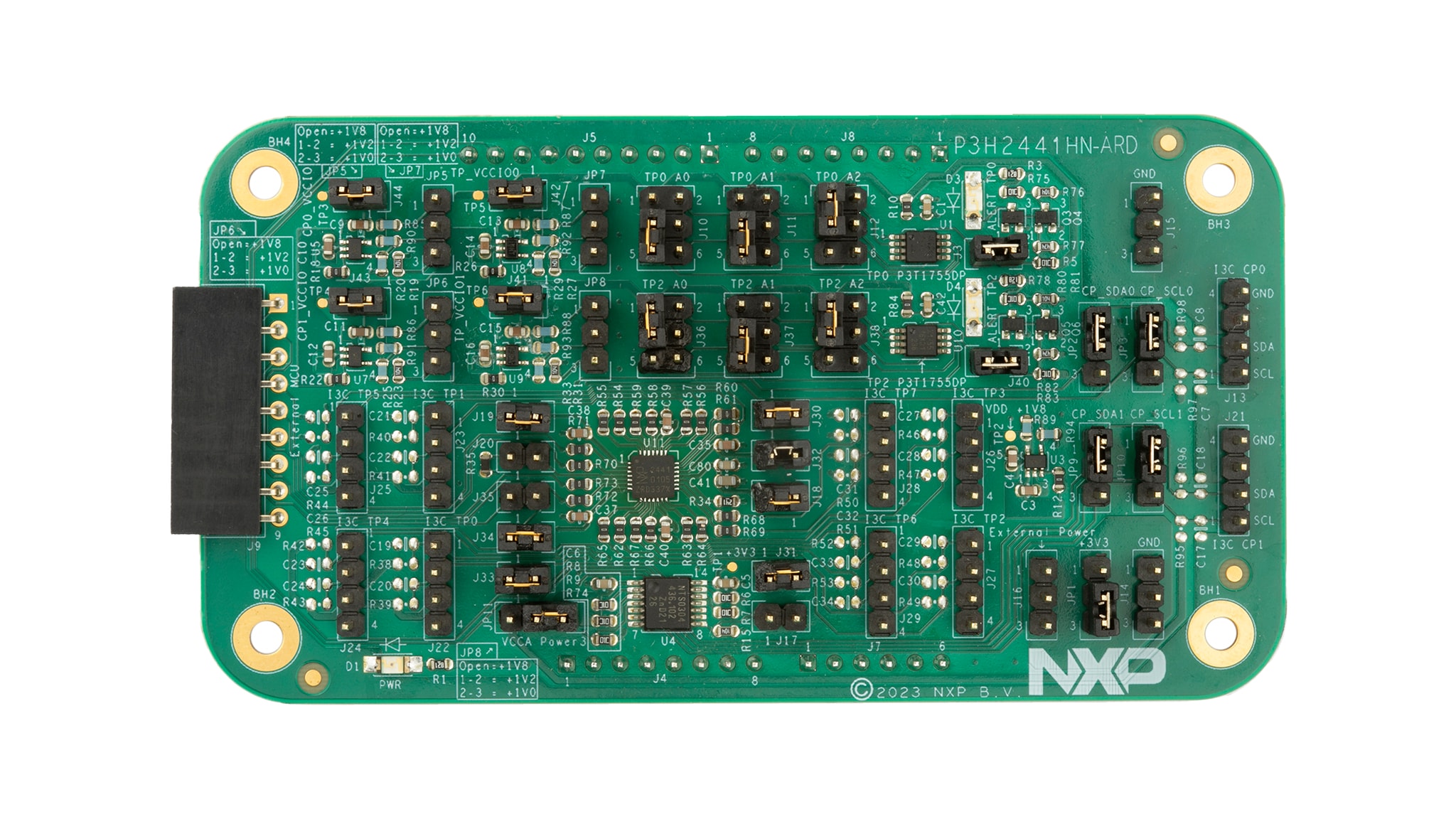

I3C Hub Arduino Shield evaluation boards are a complete evaluation platform for the P3H2440HN/P3H2441HN, 2 controller port connectors and 4 target ports connectors and for P3H2840HN/P3H2841HN, 2 controller and 8 target ports Connector.
On-board, it has 1.0 V/1.2 V/1.8 V LDOs for controller and target ports, power supply configuration and two temperature sensors (P3T1755DP) with alert LEDs providing complete system validation.
Moreover, the P3H2440HN / P3H2441HN / P3H2840HN / P3H2841HN are equipped with convenient test points for easy scope measurements and signal access, a USB interface to the host PC, a Windows GUI software and a power supply from USB port or external power supply that can be used to power evaluation board.
| Part Number | Description |
|---|---|
| P3H2840HN-ARD | I3C Hub with 2 controller ports and 8 target ports (default configuration) |
| P3H2841HN-ARD | I3C Hub with 2 controller ports and 8 target ports (debug configuration) |
| P3H2440HN-ARD | I3C Hub with 2 controller ports and 4 target ports (default configuration) |
| P3H2441HN-ARD | I3C Hub with 2 controller ports and 4 target ports (debug configuration) |
