FRDM Automotive S32K118 Development Board for General Purpose

このページでは、試作品の情報を掲載しています。ここに記載されている仕様や情報は、予告なく変更されることがあります。追加情報については、または営業担当者にお問い合わせください。

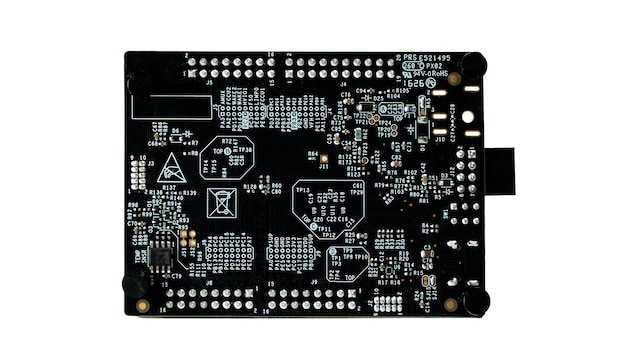

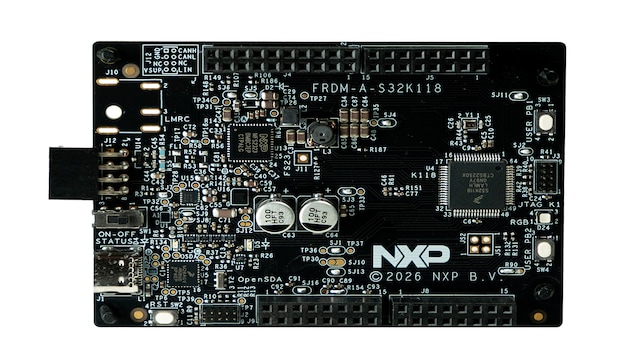

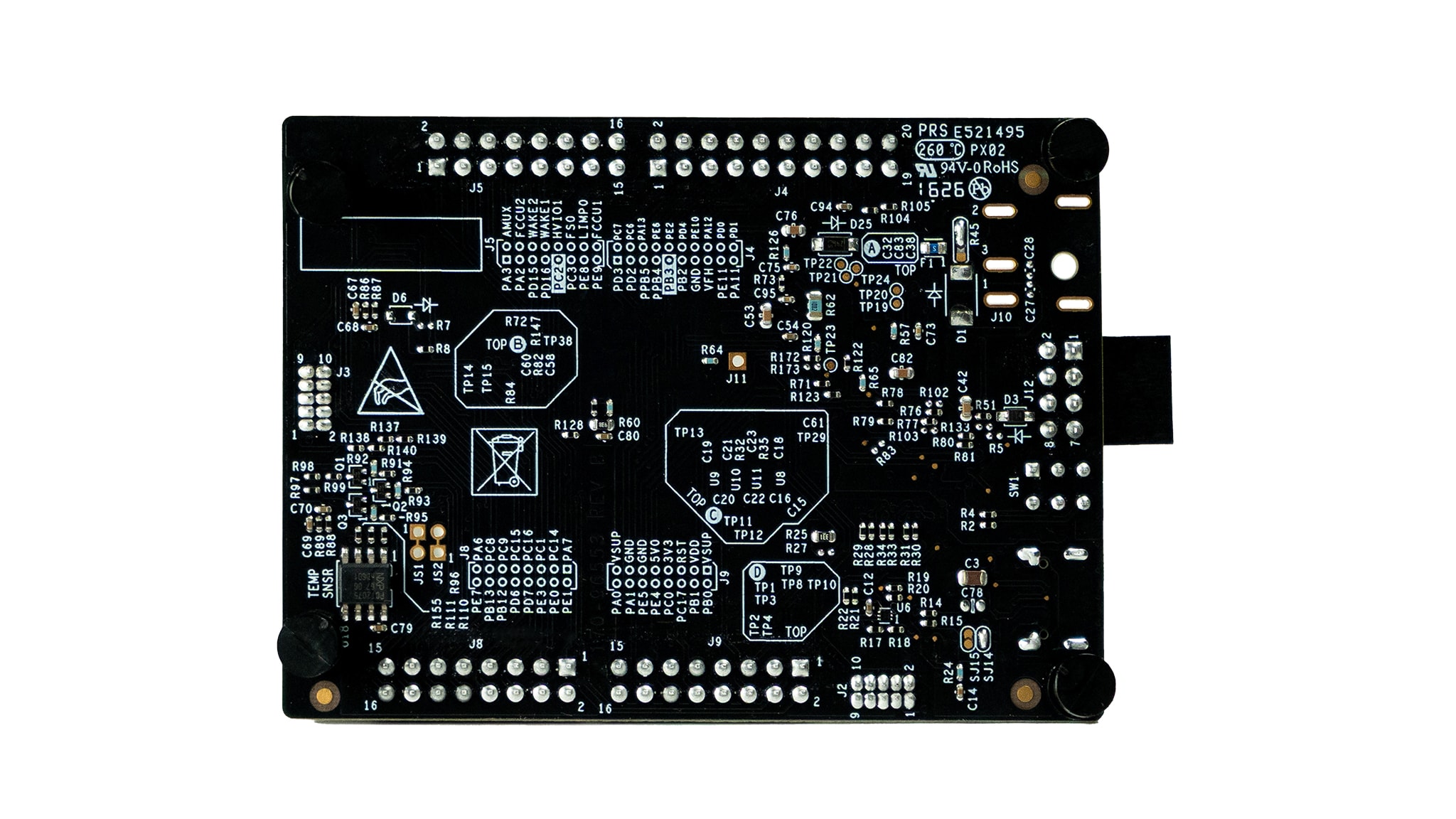

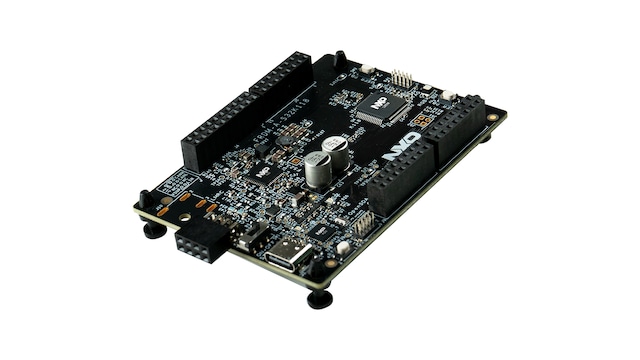

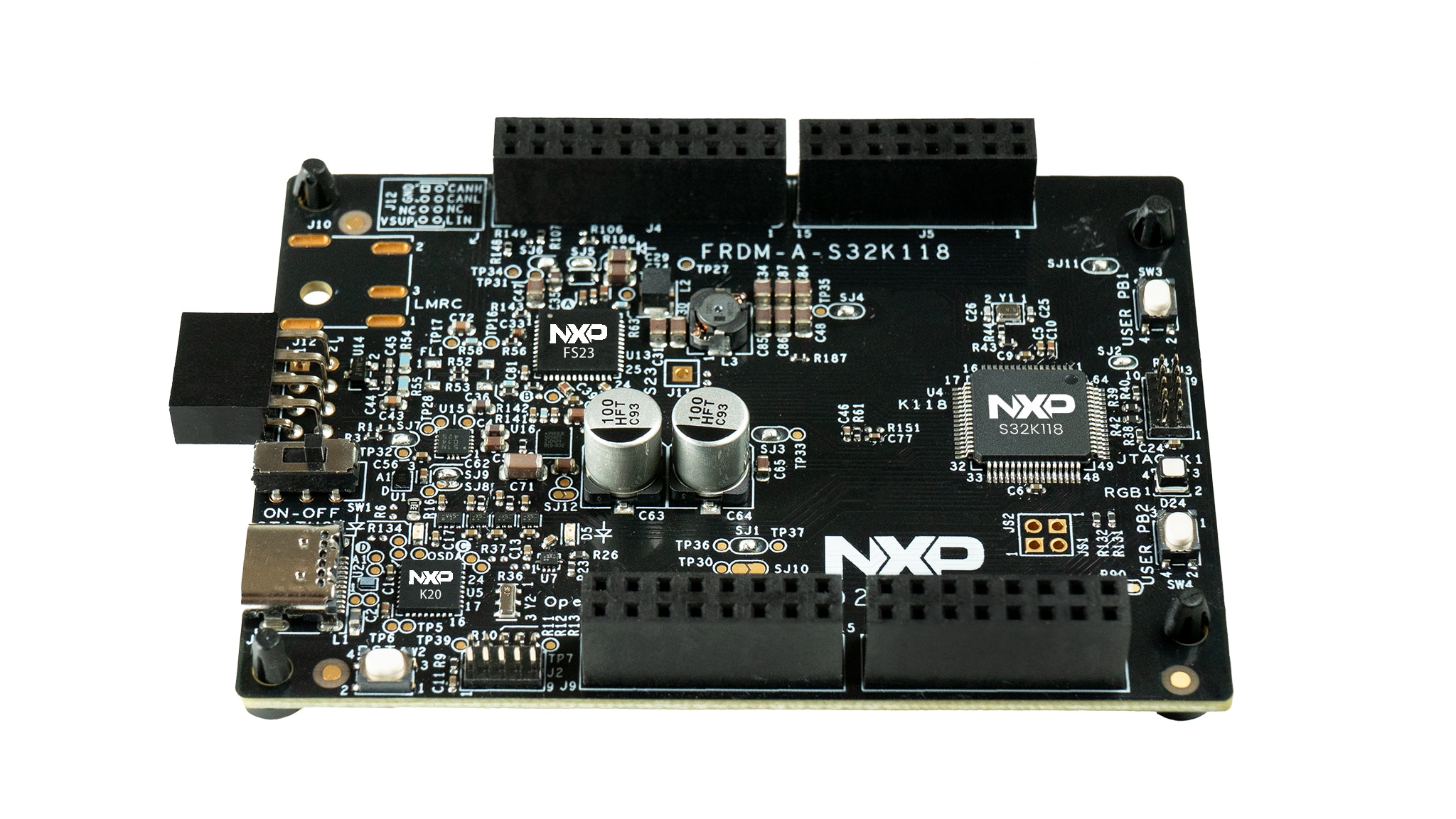

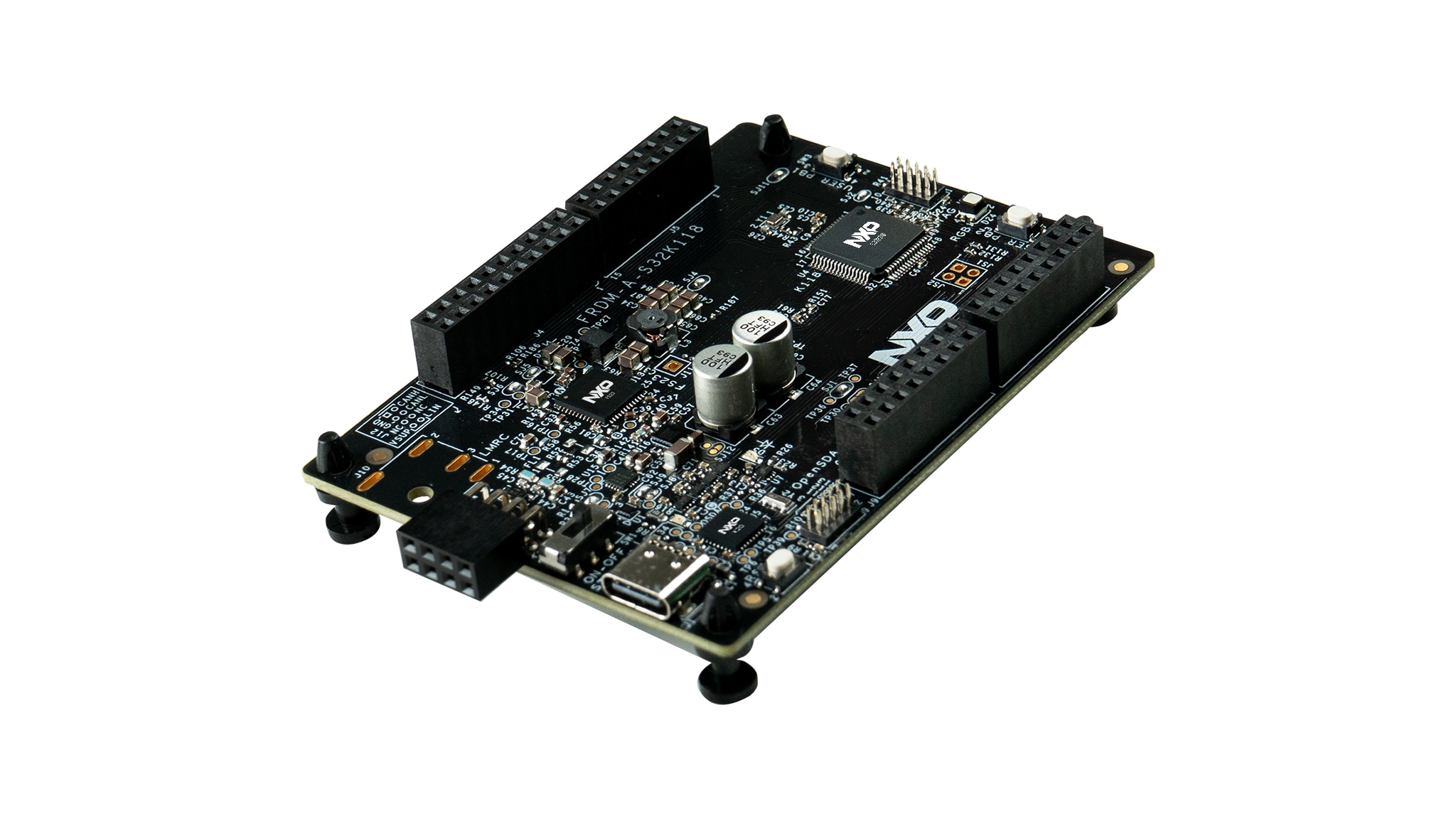

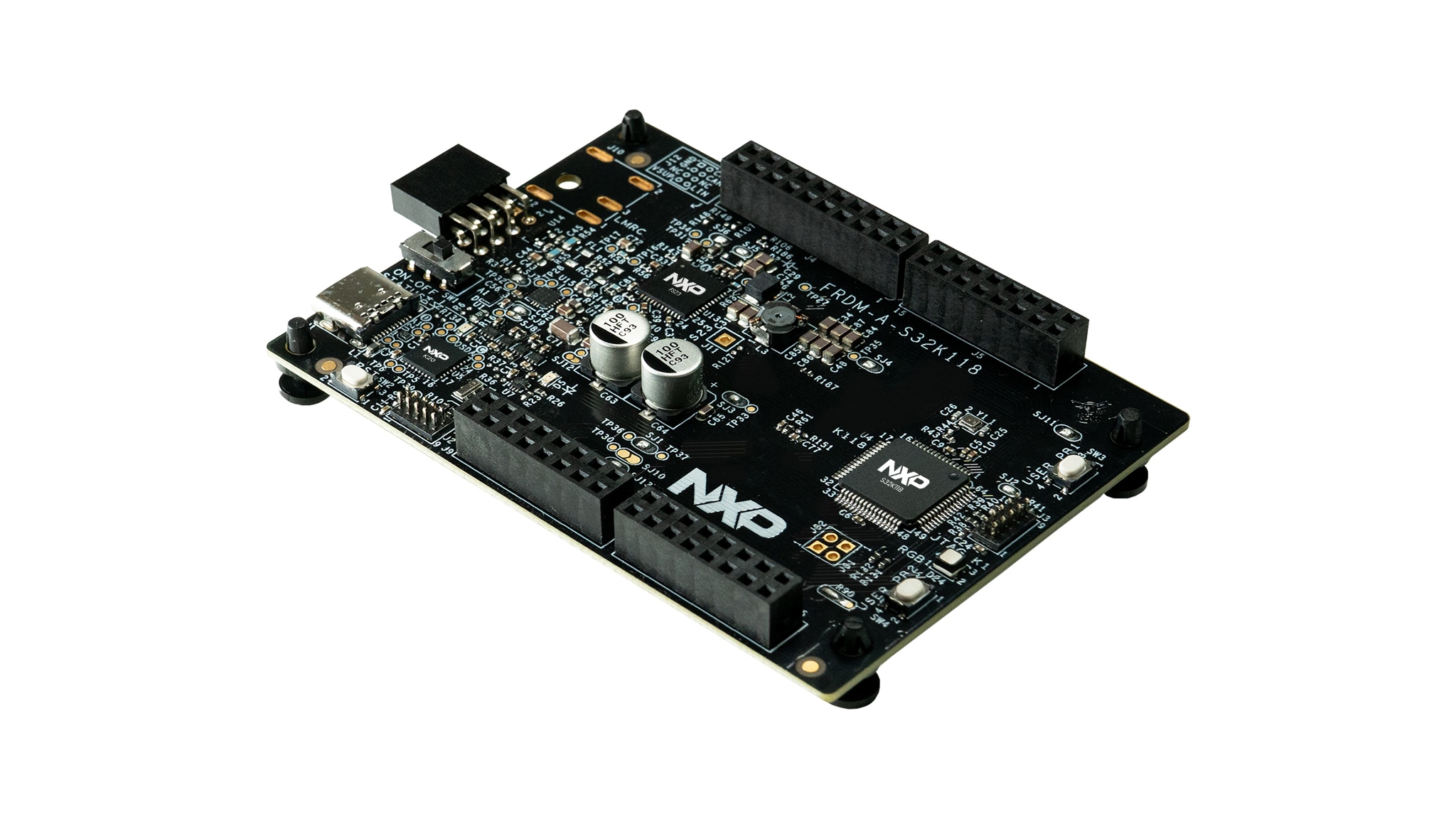

The FRDM Automotive S32K118 is a development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M0+ S32K1 microcontroller unit (MCU), the FRDM Automotive S32K118 offers CAN and LIN through NXP FS23, robust two-way power delivery supply with USB Type-C® and DNP Power JACK connectors, temperature sensor, JTAG and a on-board debugger with NXP K20 MCU.

The FRDM Automotive S32K118 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

ソフトウェア

製品詳細

ブロック図

FRDM-A-S32K118 Block Diagram

FRDM Automotive S32K118 Development Board Features

対応製品

インターフェース

USBインターフェース

PTN5110: USB PD TCPC PHY IC

センサ

I3C/I²Cデジタル温度センサ

PCT2075: I²CバスFm+、1°C精度、デジタル温度センサ、温度ウォッチドッグ

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

S32K 車載汎用MCU

S32K1: S32K1 車載向け汎用マイクロコントローラ

パワーマネージメント

VBUS保護

NX20P3483UK: USB PDおよびType-C高電圧シンク/ソース・コンボ・スイッチ、保護機能搭載

データ保護

NX20P0407: USB Type-C-CCおよびSBU保護IC

12 V、24 V、および48 V SBCソリューション

FS23: パワー・マネジメント、CAN、LINの機能を備えたセーフティ・システムベーシス・チップ (SBC) ファミリ

Features

Hardware Features

Power supply switch
MCU voltage measurement and power delivery PHY
Temperature sensor
2x user push-buttons
User red-green-blue (RGB) LED
CAN and LIN communication

Software Features:

Free-of-charge Real-Time Drivers (RTD) ASIL D compliant for AUTOSAR® and non-AUTOSAR use
Free-of-charge Safety Peripheral Drivers (SPD)
Free-of-charge Model-Based Design Toolbox (MBDT) for MATLAB®
Free-of-charge Inter-Platform Communication Framework (IPCF)

Compatibility:

Arduino UNO pinout compatible with support for expansion shields
Expansion options using the DEVKIT-MOTORGD and DEVKIT-COMM boards

Interfaces:

On-board Controller Area Network Flexible Data-rate (CAN FD) through NXP FS23
On-board Local Interconnect Network (LIN) through NXP FS23
On-board Serial Wire Debug (SWD) and Joint Test Action Group (JTAG) interfaces for debugging S32K1 MCUs through NXP K20

Enablement:

Free-of-charge S32 Design Studio IDE (Eclipse-based, with GCC and an integrated debugger)
Free-of-charge S32 Config Tools (pins, clocks, peripherals), with support for third-party compilers and debuggers

購入オプション

クリックして展開

FRDM-A-S32K118
認定中

FRDM Automotive S32K118 Development Board for General Purpose.

キットの内容

Note: S32K118 is now FRDM-A-S32K118, joining the FRDM ecosystem.
