Find accessory boards designed to work with NXP i.MX evaluation kits to speed up development.
The available accessory boards are listed below and may be used with a range of hardware development platforms, including select i.MX development boards for i.MX Applications Processors based on Arm® Cortex®-A cores.
| Accessory Board | Compatible Development Board | |||||
|---|---|---|---|---|---|---|
| i.MX 8M EVK | i.MX 8M Mini EVK | i.MX 8M Nano EVK | i.MX 8QXP MEK (CPU board) | i.MX 8QM MEK (CPU board) | i.MX8M PLUS EVK | |
| IMX-MIPI-HDMIMIPI to HDMI adapter card (mini SAS) | ||||||

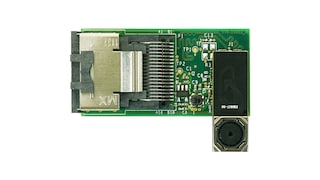

| MINISASTOCSIOV5640 MIPI CSI board (mini SAS) | - | |||||

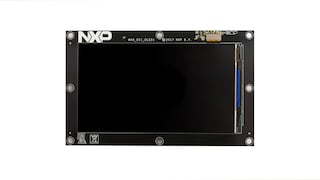

| MX8-DSI-OLED1AMIPI-DSI 1080p OLED Display | ||||||
| 8MIC-RPI-MX88-microphone array proto board for voice enablement | - | - | - | |||
| IMXAI2ETH-ATHAtheros Ethernet add on card for MCIMX6QAICPU2 | - | - | - | - | ||
| IMX-LVDS-HDMILVDS to HDMI adapter card (mini SAS) | - | - | - | |||
| IMX-RMII-BRPHYENET 100 Mbps Daughter Card with NXP Auto BR-PHY | - | - | - | - | ||

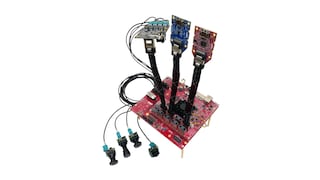

| MCIMX8-8X-BBi.MX 8QuadXPlus Multisensory Enablement Kit (MEK) Base Board | - | - | - | - | ||
|
MX8XMIPI4CAM24 camera board with miniSAS connector for OV10635 MIPI Camera |
- | - | - | - | ||
| IMX-OS08A204K MIPI CMOS Camera Module | - | - | - | - | - | |
| Accessory Board | Compatible Development Board | ||||
|---|---|---|---|---|---|
| i.MX91 EVK | i.MX93 QSB | i.MX93 EVK | i.MX93 Auto EVK | FRDM-IMX93 | |
| MX93AUD-HATAudio HAT w/ 2x20 PIN GPIO interface | |||||
| 8MIC-RPI-MX88-microphone array proto board for voice enablement | |||||
| M2-NOR-FLASHM.2 to QSPI NOR flash convert board | |||||
| M2-NAND-FLASHM.2 to QSPI NAND flash convert board | - | - | - | - | |
| IMX-MIPI-HDMIMIPI DSI to HDMI convert board (1080P) | - | - | - | ||
| IMX-DSI-SDSBMIPI Serializer & De-Serializer board Maxim GMSL2 | - | - | - | ||
| IMX-LVDS-HDMILVDS to HDMI convert board | - | - | - | - | |
| X-MX8-DSI-OLED2MIPI DSI to OLED Panel | - | - | - | ||
| RPi-CAM-MIPIAR0144 with external ISP AP1302 | - | - | ① | ||
| MINISASTOCSIOV5640 MIPI-CSI Camera Module | - | - | ① | ① | |
| RPi-CAM-MiniSASMIPI CSI (FPC)-MiniSAS connector converter | - | - | |||
