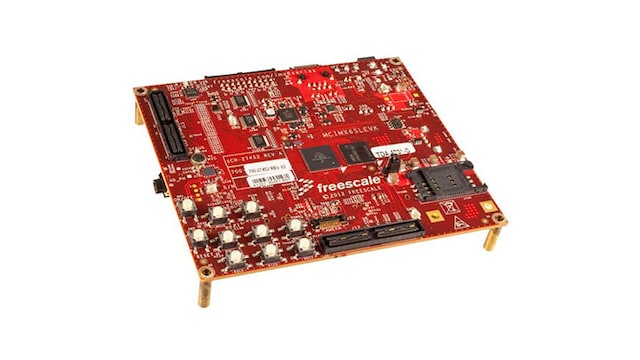

NXP^® delivers highly-flexible, market-focused development tools with an Evaluation Kit (EVK) based on the i.MX 6SoloLite applications processor.

The i.MX 6SoloLite is the first system-on-a-chip (SoC) with a high-performance 1 GHz Arm^® Cortex^®-A9 CPU and integrated E Ink^® and Sipix^® display controllers to drive current and next-generation electronic paper display (EPD) panels.

This EVK enables EPD and/or LCD or HDMI display, touch control, audio playback as well as the ability to add WLAN, a 3G modem or Bluetooth^® technology. The EVK was designed to facilitate software development with the goal of faster time to market through the support of both Linux^® and Android^™ operating systems.

デザイン・ファイル

ソフトウェア

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

i.MX 6プロセッサ

i.MX6SL: i.MX 6SoloLite Processors – Single-Core, Low-Power, EPD Controller, Arm^® Cortex^®-A9 Core

パワーマネージメント

PMIC

MMPF0100: 14-Channel Configurable PMIC

Features

Processor

i.MX 6SoloLite 1 GHz based on Arm Cortex-A9 core
NXP PF0100 PMIC

Memory

1 GB LPDDR2 running at 400 MHz
Footprint for managed NAND (eMMC/eSD)
SPI flash
Three secure digital (SD)/multimedia card (MMC) sockets

Display Board Interface

E Ink EPD board with MMA8450QT three-axis digital accelerometer
LCD daughter card
HDMI daughter card

Audio

Wolfson WM8962 audio codec
Audio HP jack
External speaker connection
Microphone

Connectivity

USB host connectors
Micro USB OTG connector
Ethernet (10/100T) connector
SIM card socket
Mini PCI Express^® connector

Debug

JTAG connector
One console UART

購入オプション

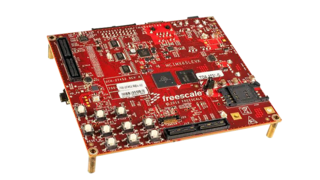

MCIMX6SLEVK-Image

クリックして展開

MCIMX6SLEVK
アクティブ

Evaluation Kit, Hardware, i.MX 6SoloLite, No Display.

代理店からの注文

販売代理店	地域	在庫	在庫日	注文

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

クリックして展開

IMXEBOOKDC3-E
アクティブ

Accessory Board, Hardware, i.MX 6SoloLite, i.MX 6Solo, i.MX 6DualLite, E-Ink Daughter Card.

代理店からの注文

販売代理店	地域	在庫	在庫日	注文

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

クリックして展開

IMXEBOOKDC4
アクティブ

IMXEBOOKDC4.

代理店からの注文

販売代理店	地域	在庫	在庫日	注文

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
