i.MX RT600オーディオ評価キット

MIMXRT685-AUD-EVK
アクティブ

画像にカーソルを合わせると拡大表示されます。

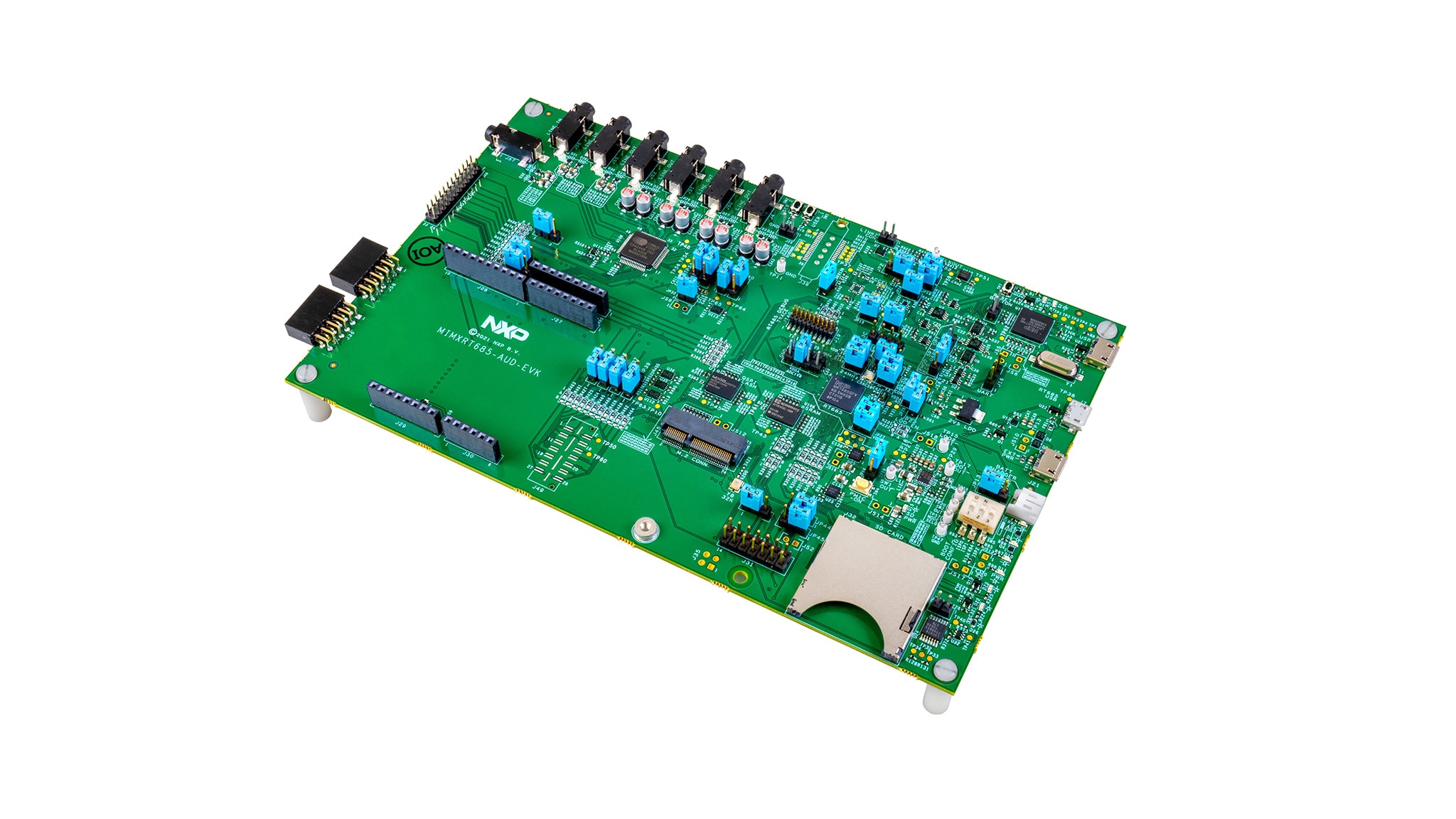

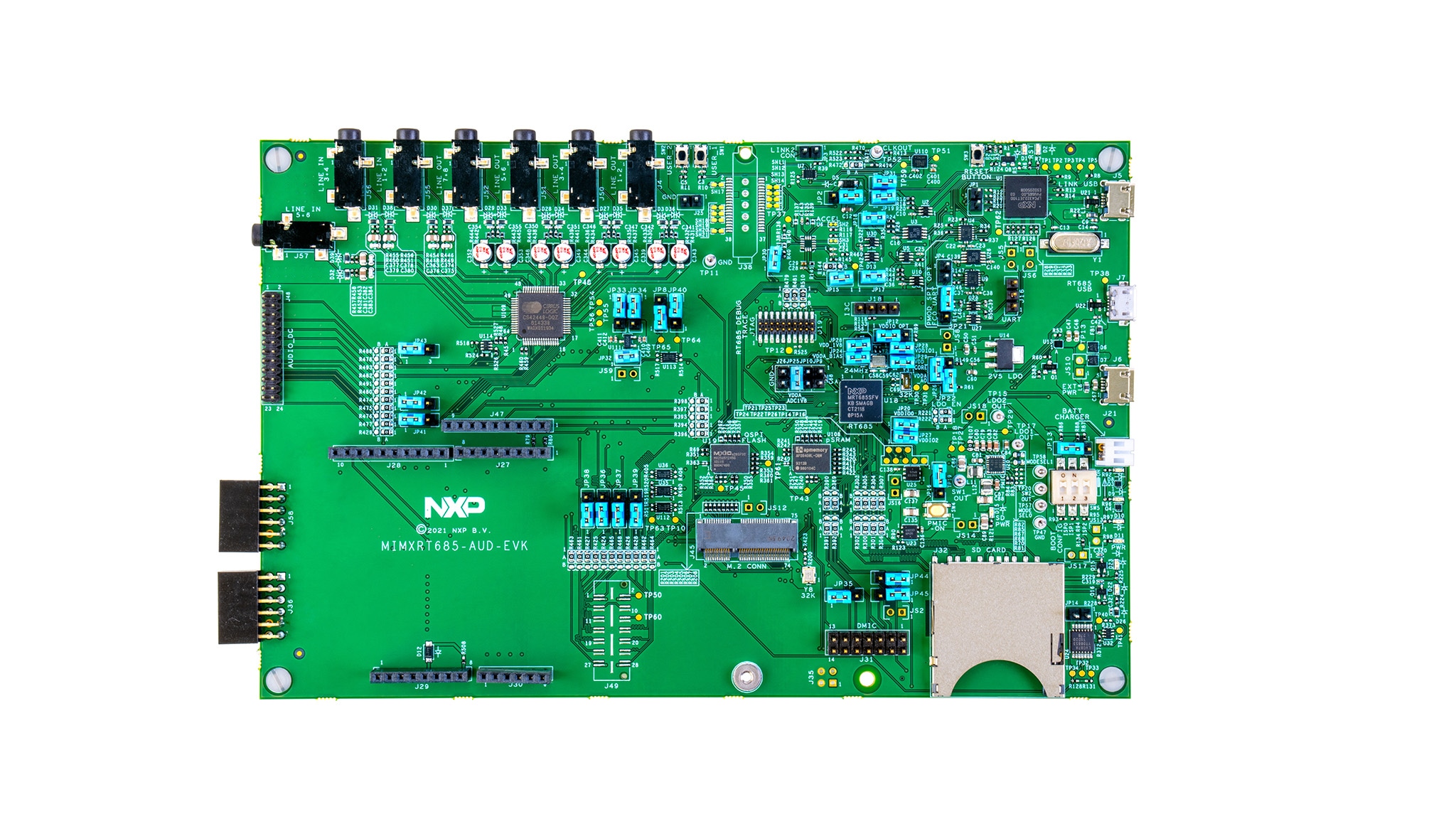

IMXRT600-AUD-EVK評価ボードは、MCUXpressoスイートのソフトウェアとツールを使用してi.MX RT600シリーズ・クロスオーバーMCUの評価とプロトタイピングを実施できる、パワフルで拡張可能なプラットフォームです。Arduino UNO、M.2、PMod(R)およびディスプレイ・コネクタによって柔軟な拡張オプションが可能となり、エッジ接続やスタンドアロンでの音声用途、オーディオ用途、ML用途のプロトタイプ作成に役立ちます。このボードは、オプションでファームウェアを簡単にアップデートできる高速USBデバッグ・プローブを搭載し、CMSIS-DSPに加え、SEGGERのJ-link LITEの特別バージョンをサポートします。

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

i.MX RTクロスオーバーMCU

  • i.MX-RT600: i.MX RT600 Arm® Cortex®-M33およびDSPコア搭載クロスオーバーMCU

特長

オーディオ

  • Cirrus Logic CS42448 6入力 / 8出力コーデック
  • オーディオ拡張コネクタ
  • 1/4インチ・ステレオ出力ジャック x 4
  • 1/4インチ・ステレオ入力ジャック x 2

デバッグ機能

  • オンボードLPC-Link2タイプ・デバッグ・プローブ、VCOMおよびCMSIS-DAPまたはJ-linkファームウェア（オプション）
  • USB-SPI変換ブリッジ
  • 20ピンCoresightデバッグ・コネクタ、外部デバッグ/トレース・プローブの使用をサポート
  • Miktorトレース・コネクタ

コネクティビティ

  • ホストまたはデバイス機能用のmicro-A/Bコネクタを備えた高速/フルスピードUSBポート

センサ

  • オンボードSPH0641lM4Hデジタル・マイク
  • InvenSense ICM 42688-P 6軸I3Cモーション・センサ

ボード・メモリ

  • 64 MB Macronix MX25U51245GXDI00クアッドSPIフラッシュ
  • 64 MB APメモリAPS6408L-OBM-BA PSRAM

拡張コネクタ

  • Arduino®拡張コネクタ
  • PMOD拡張
  • 最大8つのデジタル・マイク用拡張コネクタ
    （NXP 8チャネルDMICボードをサポート）
  • I3Cヘッダ

プロセッサ

  • Arm® Cortex®-M33/Cadence® Tensilica® HiFi 4オーディオDSP
  • 最大300 MHzのArm Cortex-M33コア

ユーザー・インターフェース

  • ソフトウェア機能を簡単にテストするためのリセット・ボタンとユーザー・ボタン
  • ユーザーLED

ワイヤレス

  • SDカード・スロットまたはM.2コネクタを使用したオプションのNXP Wi-Fiアドオン・カード

購入オプション

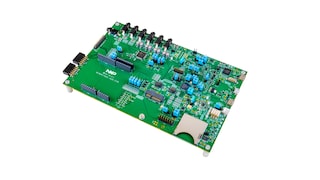

IMXRT600-AUD-EVK-Image

クリックして展開

  • IMXRT600-AUD-EVK
    アクティブ

  • i.MX RT600 Evaluation Kit.

  • キットの内容

    • EVKハードウェア
    • マイクロUSBケーブル
    • クイック・スタート・ガイド
  • $171.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 19
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文

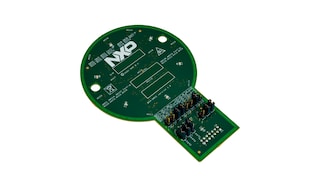

8CH-DMIC-Image

クリックして展開

  • 8CH-DMIC
    アクティブ

  • Configurable Digital Microphone Board.

  • $90.85 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 21
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
