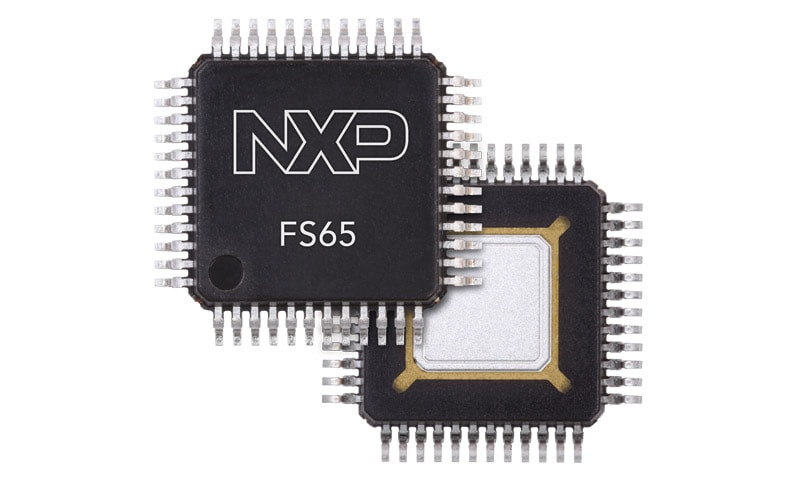

Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

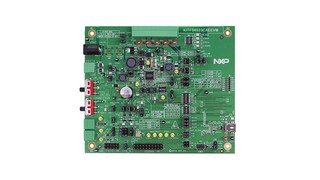

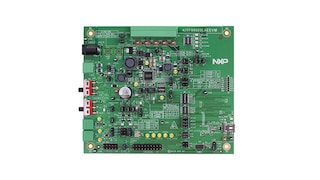

FS6500

画像にカーソルを合わせると拡大表示されます。

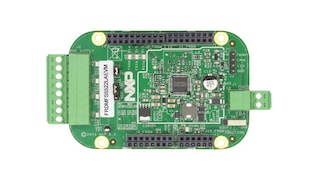

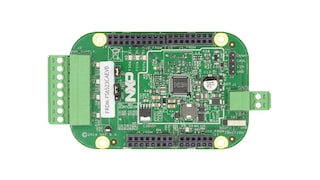

The FS65 system basis chip (SBC) provides power to MCUs and optimizes energy consumption through DC-DC switching regulators, linear regulators and ultra-low-power saving modes.

Featuring:

  • Advanced functional safety measures to target ASIL B/D applications
  • A serial peripheral interface (SPI) to allow control and diagnostics with the MCU
  • Integration of CAN FD and LIN physical interfaces compliant with the ISO 11898-2,-5, LIN 2.2, 2.1 /J2602-2 standards along with the latest automotive OEM standards for EMC and ESD
  • A range of integrated safety features such as monitoring of critical analog parameters, a fail-safe state machine and an advanced watchdog reduce software complexity with dual-core lock-step MCUs
  • High-temperature capability up to TA = 150 °C and TJ = 175 °C, compliant with AEC-Q100 Grade 0 automotive qualification

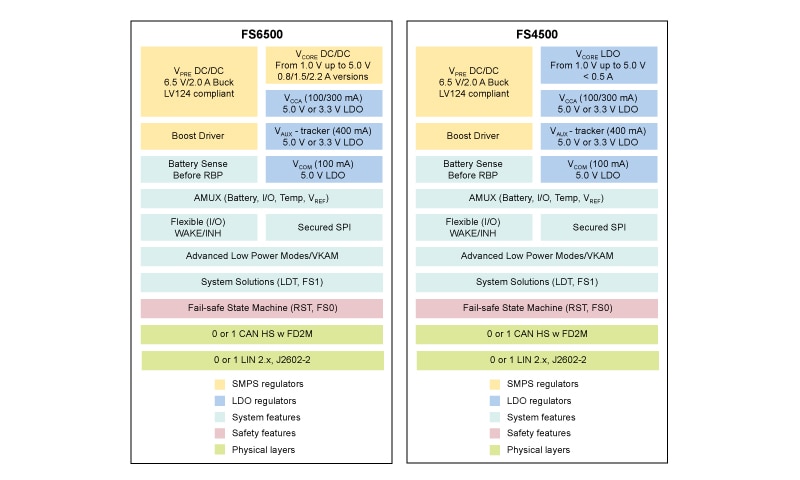

ブロック図

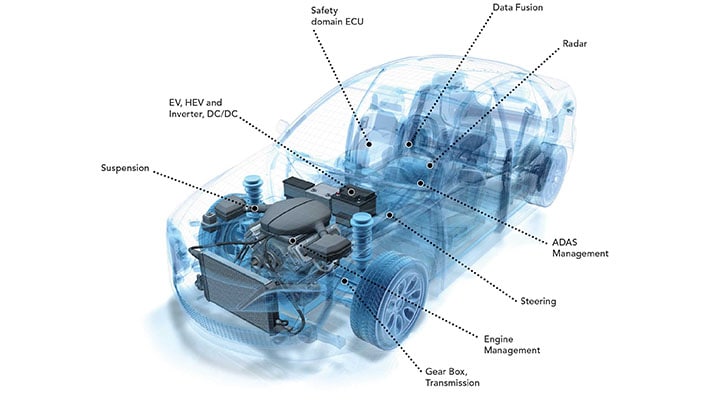

FS6500 Fail Silent SBC with DCDC, ASIL B/D ready

FS6500 Fail Silent SBC with DCDC, ASIL B/D ready
図を取得する PDF

Features

MC33FS6500xxx (Grade 1 Automotive) Features

  • MC33FS6500xxx are compliant with Grade 1 automotive qualification (up to TA=125°C and TJ=150°C)
  • Battery voltage sensing and MUX output pin
  • Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck
  • The family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A, 1.5 A or 2.2 A) or LDO (0.5 A)
  • 36 V maximum input operating voltage
  • Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (VCCA tracker or independent), 5.0 V or 3.3 V
  • Linear voltage regulator dedicated to MCU A/D reference voltage or I/Os supply (VCCA), 5.0 V or 3.3 V
  • 3.3 V keep alive memory supply available in low-power mode
  • Long duration timer, counting up to 6 months with 1.0 s resolution
  • * Multiple wake-up sources in low-power mode: CAN, LIN, IOs, LDT (Long Duration Timer)
  • Five configurable I/Os
  • MC33FS6500xxx datasheet

MC35FS6500xxx (Grade 0 Automotive) Features

  • High-temperature capability up to TA = 150 °C and TJ = 175 °C, compliant with AECQ100 Grade 0 automotive qualification
  • Battery voltage sensing and MUX output pin
  • Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck
  • The family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A or 1.5 A) or LDO (0.5 A)
  • Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (VCCA tracker or independent), 5.0 V or 3.3 V
  • Linear voltage regulator dedicated to MCU A/D reference voltage or I/Os supply (VCCA), 5.0 V or 3.3 V
  • 3.3 V keep alive memory supply available in low-power mode
  • Long duration timer, counting up to 6 months with 1.0 s resolution
  • Multiple wake-up sources in low-power mode: CAN, IOs, LDT (Long Duration Timer)
  • Five configurable I/Os
  • MC35FS6500xxx short datasheet

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The FS6500 is included in the 15-year program

Recommended Supersets for ASIL B Only

Part Number FS1B [1] LDT [2] CAN LIN Preferred superset PN w/ Linear VCORE Preferred superset PN w/ DC-DC VCORE

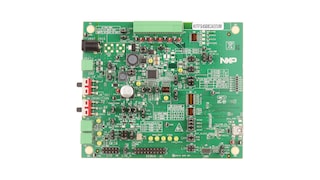

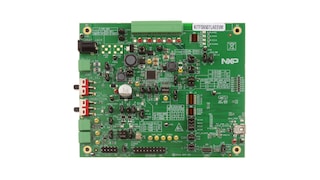

FS45/FS65x5NAE No No No No FS4507L or FS4508C FS6527L or FS6528C
FS45/FS65x5CAE No No Yes No FS4507L or FS4508C FS6527L or FS6528C
FS45/FS65x5KAE No No No Yes FS4507L FS6527L
FS45/FS65x5LAE No No Yes Yes FS4507L FS6527L
FS45/FS65x6NAE Yes No No No FS4508C FS6528C
FS45/FS65x6CAE Yes No Yes No FS4508C FS6528C
FS45/FS65x7NAE No Yes No No FS4507L or FS4508C FS6527L or FS6528C
FS45/FS65x7CAE No Yes Yes No FS4507L or FS4508C FS6527L or FS6528C
FS45/FS65x7KAE No Yes No Yes FS4507L FS6527L
FS45/FS65x7LAE No Yes Yes Yes FS4507L FS6527L
FS45/FS65x8NAE Yes Yes No No FS4508C FS6528C
FS45/FS65x8CAE Yes Yes Yes No FS4508C FS6528C

[1] Secondary safety output. LIN and FS1B functions are exclusive. The differentiation is made by part numbers. When LIN is available, FS1B is not and vice versa.

[2] Long duration timer.
