Universal 8-Bit GPIO Daughter Card for the Fm+ Development Board

OM13488
アクティブ

画像にカーソルを合わせると拡大表示されます。

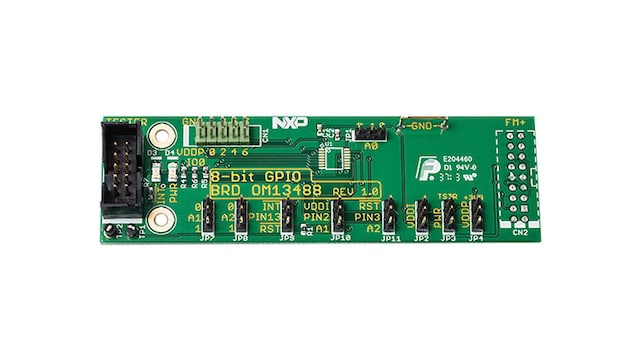

The OM13488 allows one to evaluate almost all of NXP’s 8-bit I²C GPIO Expander portfolio using the Fm+ Development Board and GUI. Pinout differences between devices are handled via jumpers and power supplies can provided by the development board or via an external power supply. No test device is mounted on the board, however a TSSOP16 footprint is provided allowing the user to solder the device he’s interested in onto the board. Connectors allow direct connection to the Fm+ Development Board and the TotalPhase Beagle. The I/O pins of the GPIO Expander may be directly observed and driven using a direct connection to the OM13303 GPIO Target Board.

製品詳細

対応製品

インターフェース

汎用I/O (GPIO)

  • PCA9670PW: Remote 8-Bit I/O Expander for Fm+ I²C-Bus with Reset

Features

Key Features

  • TSSOP16 footprint to solder almost any NXP® 8-bit GPIO Expander

Connectivity

  • Direct plug-in connection to NXP Fm+ Development Board
  • Jumpers to handle pinout differences
  • I/O pins monitored via direct connection to GPIO Target Board OM13303

Power Management

  • Power supply either internal or external

購入オプション

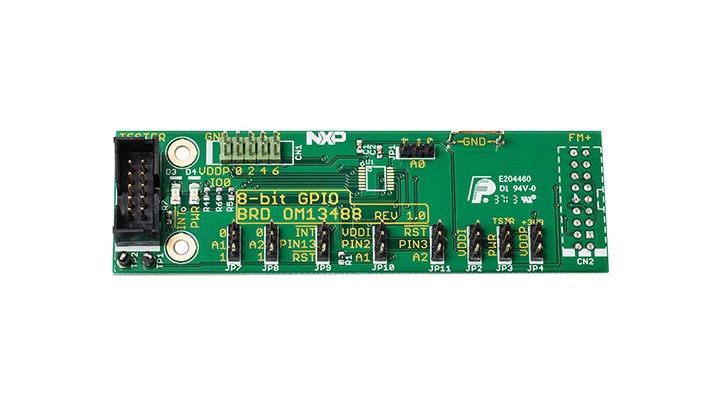

OM13488-Image

クリックして展開

OM13488
アクティブ

Universal 8-bit GPIO Daughter Card for the Fm+ Development Board.

    $56.11 USD
