The TJA144x family of CAN transceivers provides the interface between a CAN or CAN FD protocol controller and a two-wire CAN bus. The family includes the TJA1441, TJA1442, TJA1443, and dual-channel TJA1448, supporting CAN FD communication at data rates up to 5 Mbit/s. Designed as a drop-in replacement for high-speed CAN and CAN FD transceivers, the TJA144x family enables hardware and software compatibility with existing designs. Grade 0 TJR144x variants support operation up to 150 °C ambient temperature, while the TJF1441 variant is optimized for very low-speed industrial applications.
| TJA1441 | TJA1442 | TJA1448 | TJA1443 | |
|---|---|---|---|---|
| Features | Basic CAN | Standby Mode CAN | Dual Channel Standby Mode CAN | Sleep Mode CAN |
| VCC Supply Voltage | 5 V ± 10% | 5 V ± 10% | 5 V ± 10% | 5 V ± 10% |
| VIO Supply Range | 2.95 V - 5.5 V | 2.95 V - 5.5 V | 2.95 V - 5.5 V | 2.95 V - 5.5 V |
| Supply Gap Free Operation | ||||
| CAN FD Maximum Datarate | 5 Mbps | 5 Mbps | 5 Mbps | 5 Mbps |
| CAN Pin Bus Capacitance | 20 pF | 20 pF | 20 pF | 20 pF |
| Standby Mode Current "Only VCC" (Max) | - | 12 µA | 18 µA | - |
| Standby Mode Current "VCC and VIO" (Max) | - | 12 µA | 18 µA | 22 µA |
| Standby Mode Current "Only VIO" (Max) | - | 11 µA | 16 µA | 21 µA |
| Sleep Mode Current (Max) | - | - | - | 28 µA |
| ESD IEC61000-4-2 | ± 8 kV | ± 8 kV | ± 8 kV | ± 8 kV |
| CAN Bus Robustness | -36 V/+40 V | -36 V/+40 V | -36 V/+40 V | -36 V/+40 V |
| WUP Filter Time | - | 0.5 µs - 1.8 µs | 0.5 µs - 1.8 µs | 0.5 µs - 1.8 µs |
| Loop Delay (Max) | 230 ns | 230 ns | 230 ns | 230 ns |
| ISO 11898-2:2016 Compliance | ||||
| SAE J2284-1 to -5 Compliance | ||||
| 3 V 3 MCU Interface Compliance (VIO pin) | TJA1441A | TJA1441A | TJA1448A/C | TJA1443A |
| 5 V 0 MCU Interface Compliance | TJA1441A/B | TJA1441A/B | TJA1448A/B/C | TJA1443A |
| VeLIO Compliance | ||||
| AEC-Q100 Grade-1 | ||||
| AEC-Q100 Grade-0 | TJR1441 | TJR1442 | TJR1448 | TJR1443 |

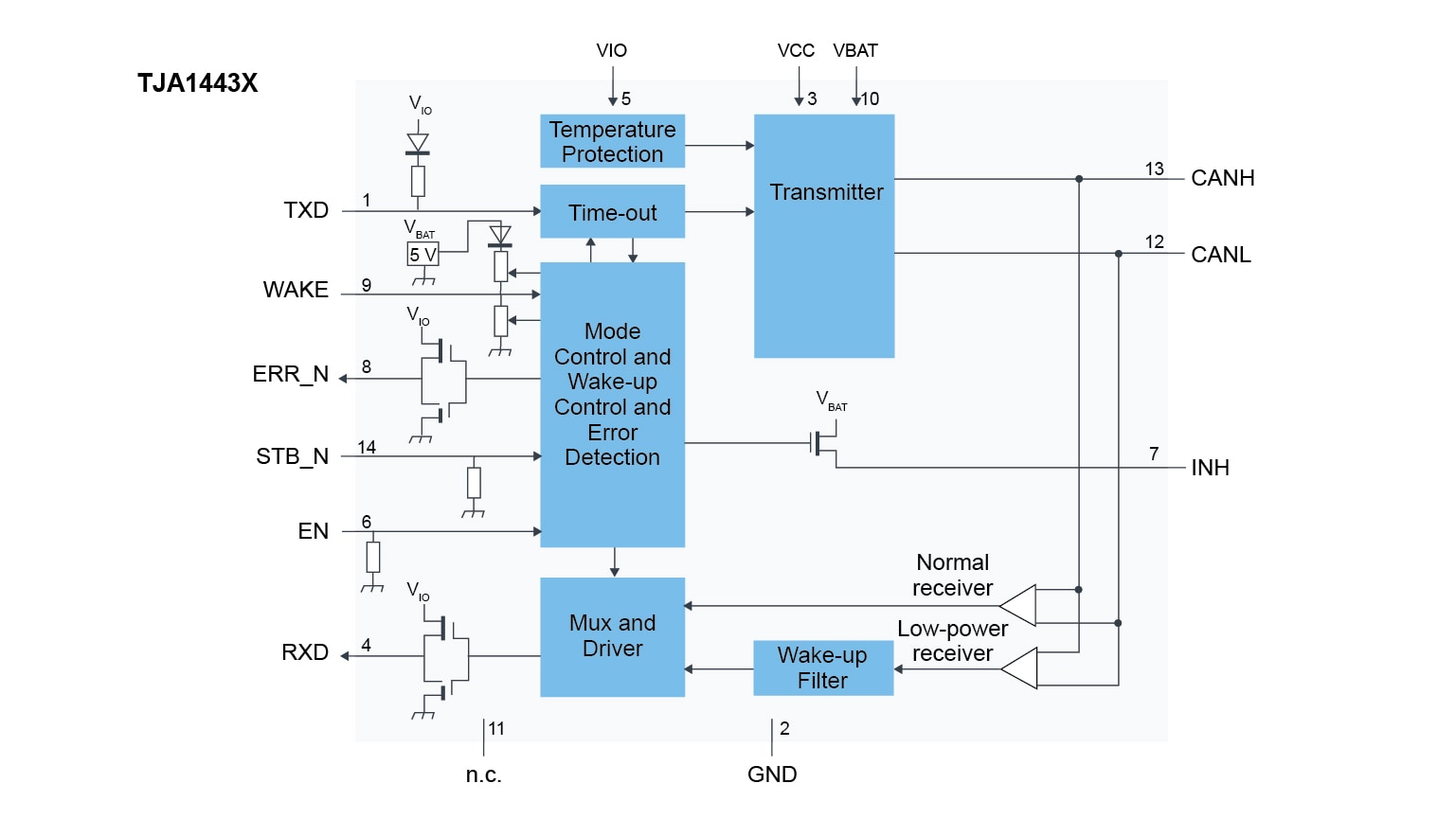

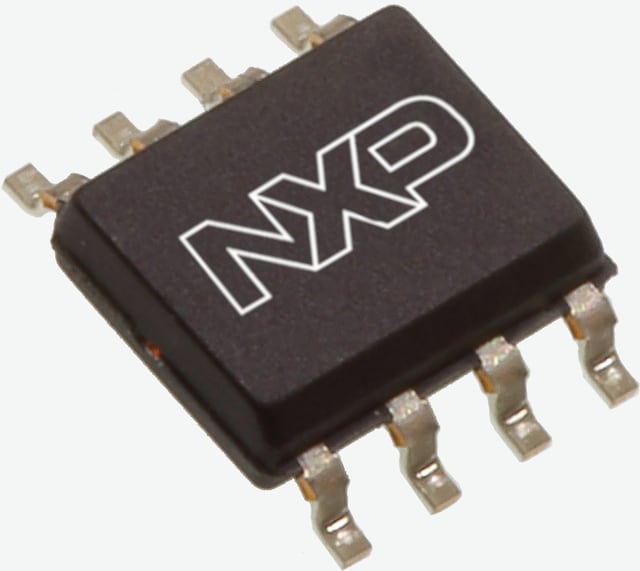

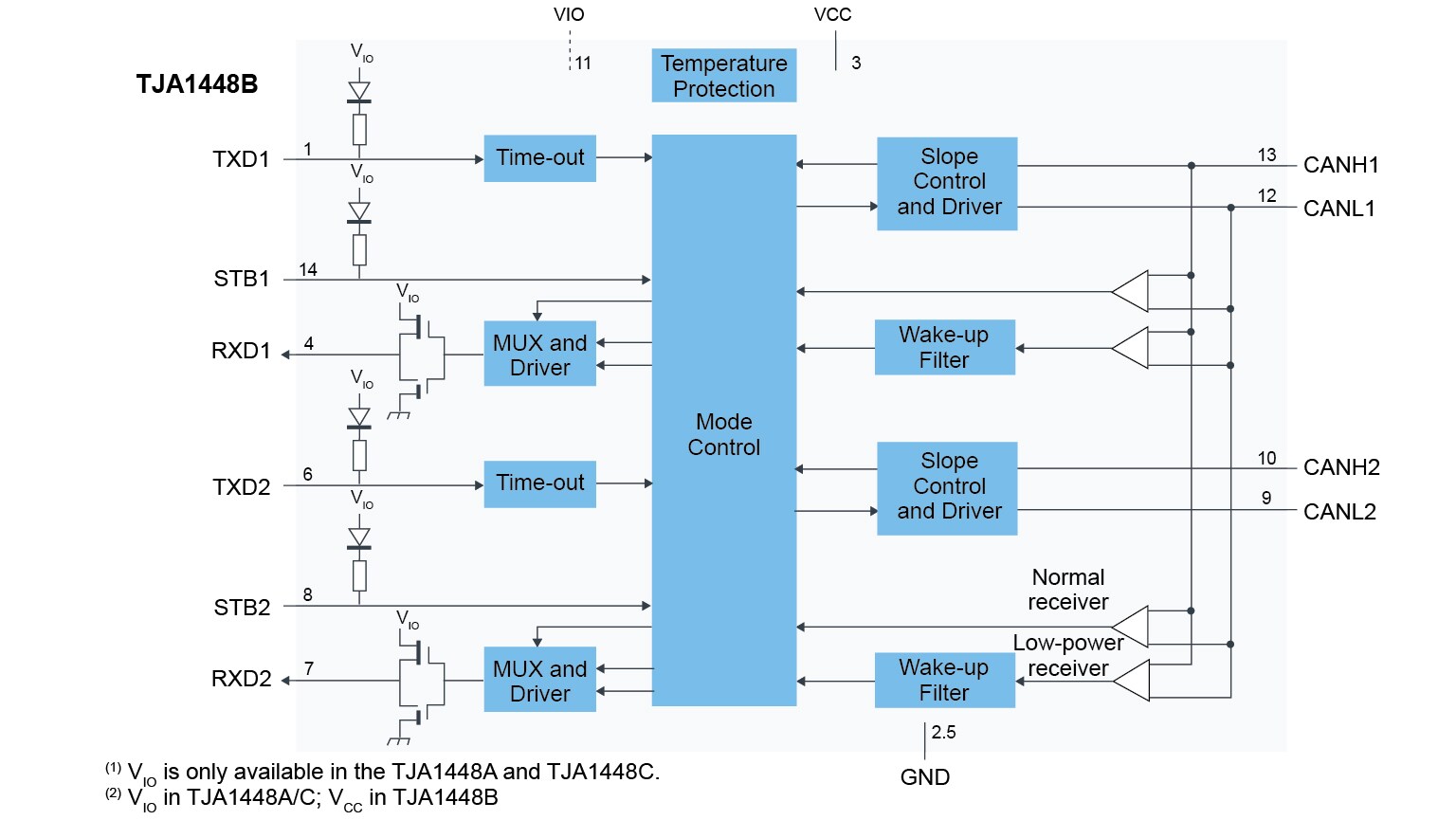

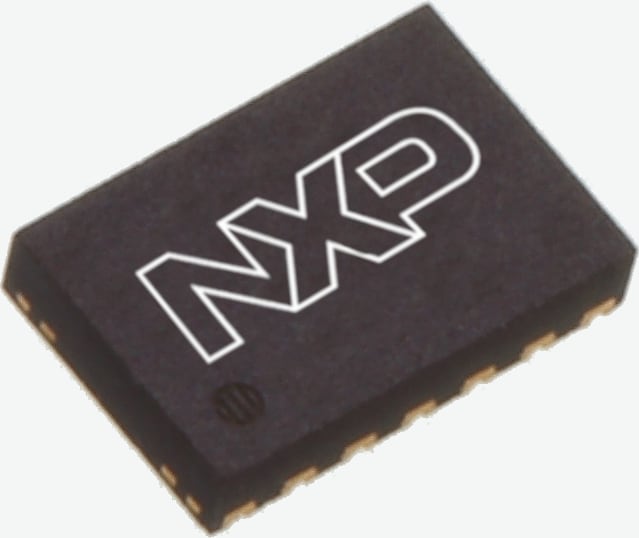

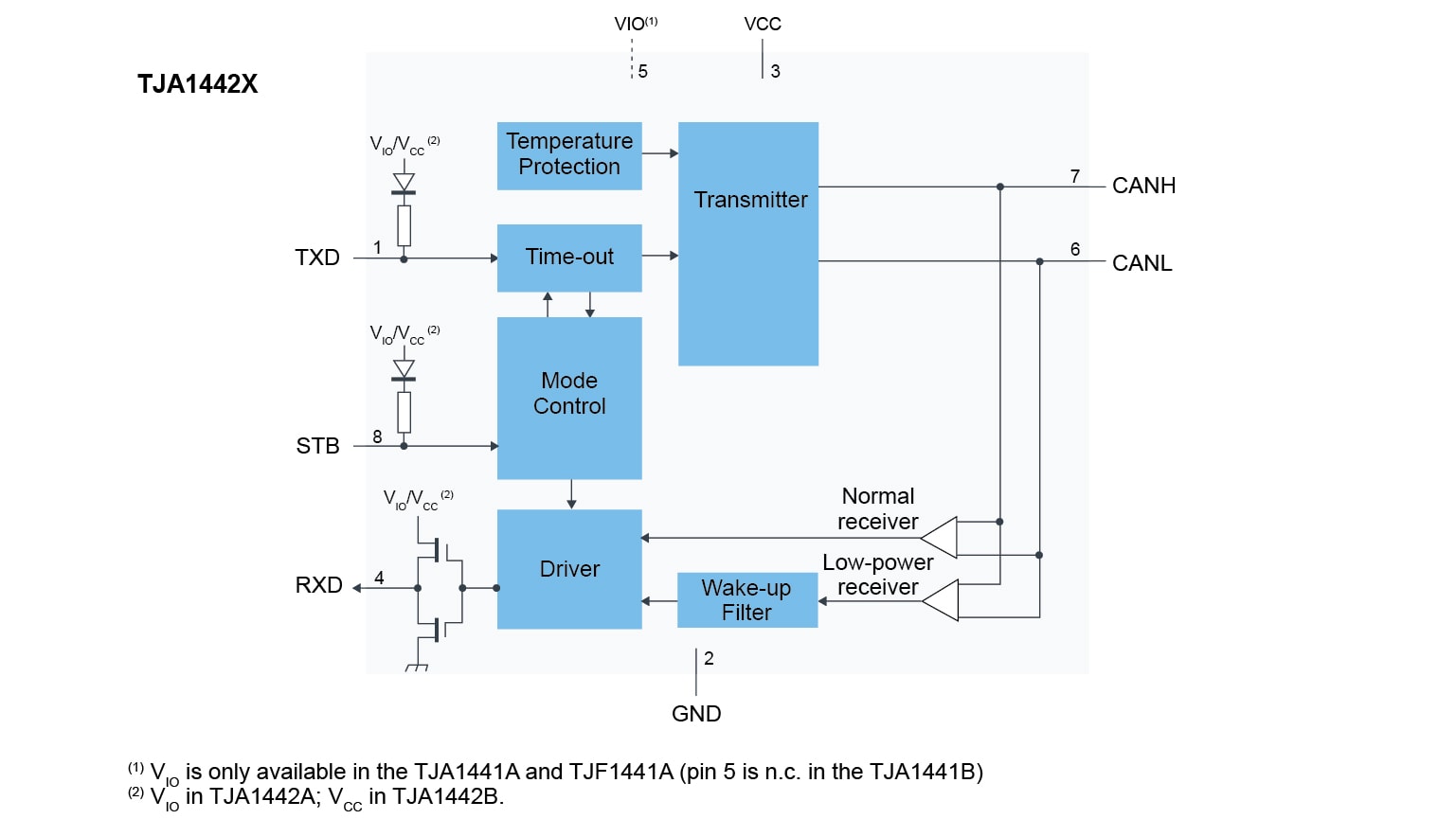

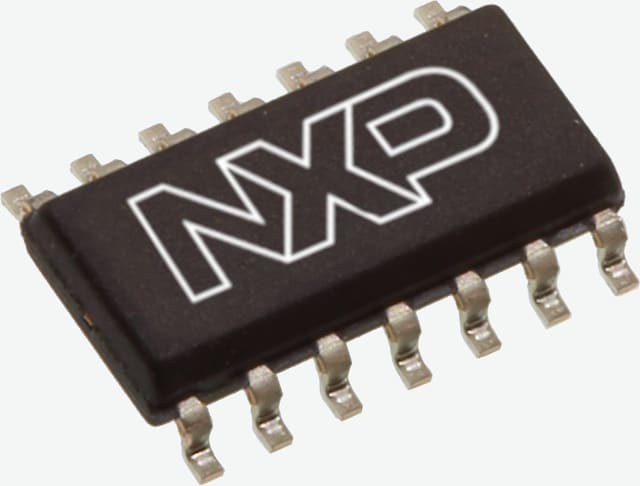

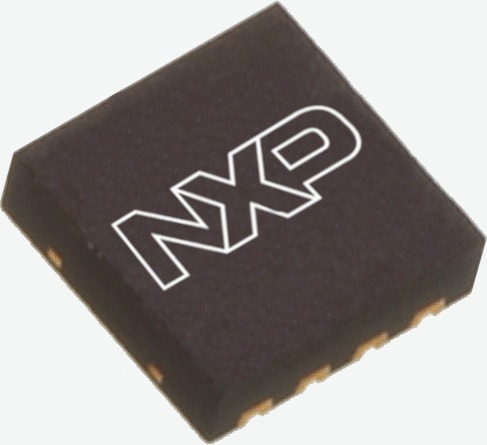

| Packages | SO8, HVSON8 | SO8, HVSON8 | SO14, HVSON14 | SO14, HVSON14 |
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
