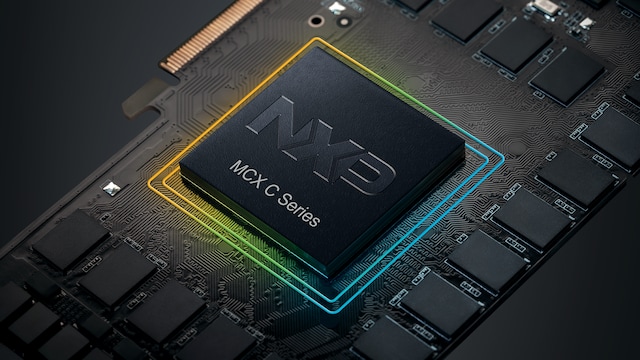

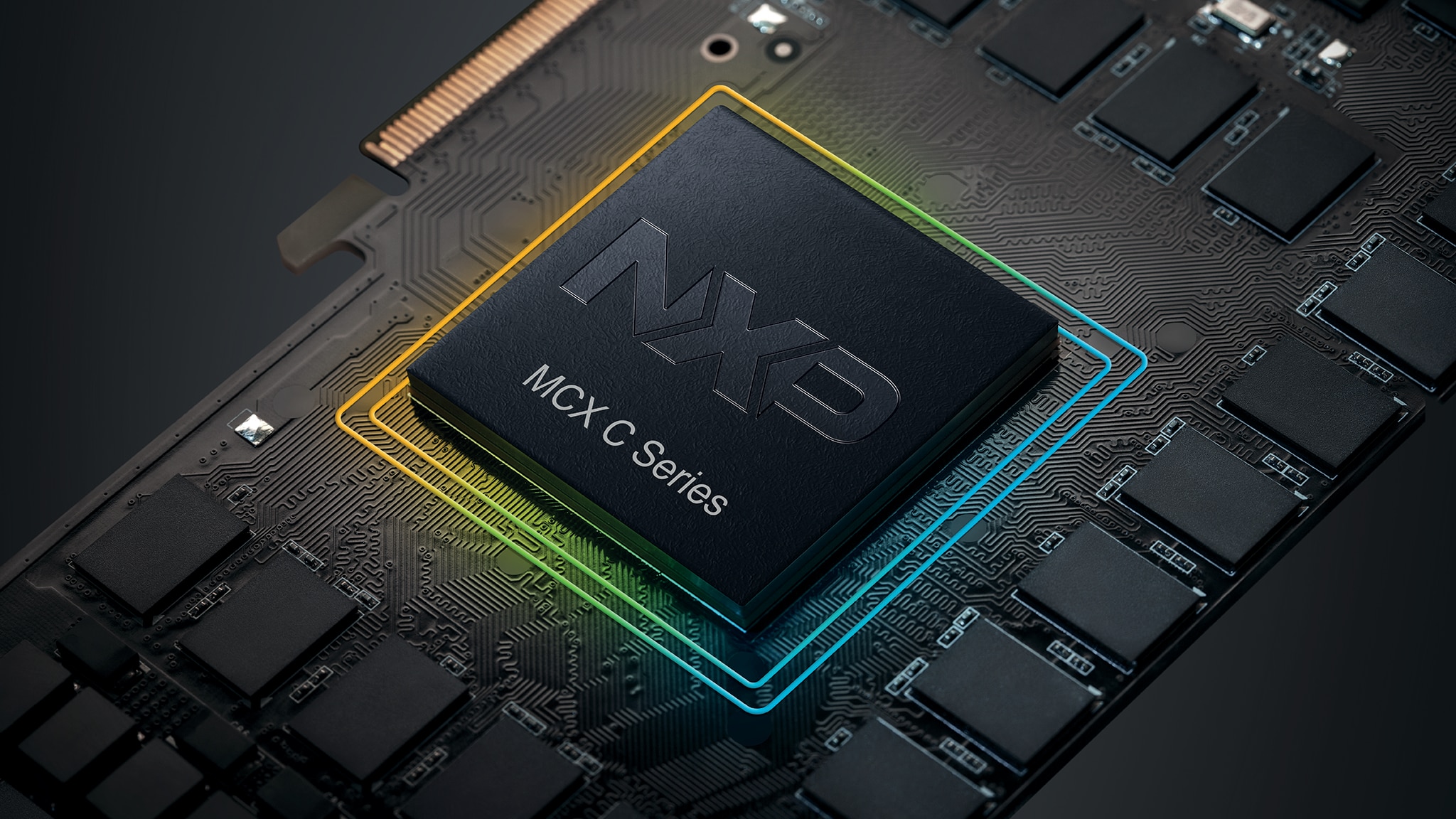

Arm® Cortex® M0+搭載MCX C14x/24x/44x MCU、USB、セグメントLCD、従来のペリフェラルを備えたエントリレベルMCU

MCX-C14x-24x-44x
アクティブ

画像にカーソルを合わせると拡大表示されます。

MCX C14x/24x/44xは、32 KB～256 KBのフラッシュ、最大32 KBのSRAM、16 KBのブートROMという幅広いメモリ・サイズを備えたエントリレベルMCUで、低消費電力のUSBコネクティビティとセグメントLCDを必要とするコスト重視のバッテリー駆動アプリケーション向けに最適化されています。標準およびカスタムのシリアル・ペリフェラルのエミュレーションをサポートするFlexIO。超低消費電力実行モードで54 uA/MHz、ディープ・スリープ・モード（RAM + RTC保持状態）で1.96 uAを実現する最適化された低消費電力モード

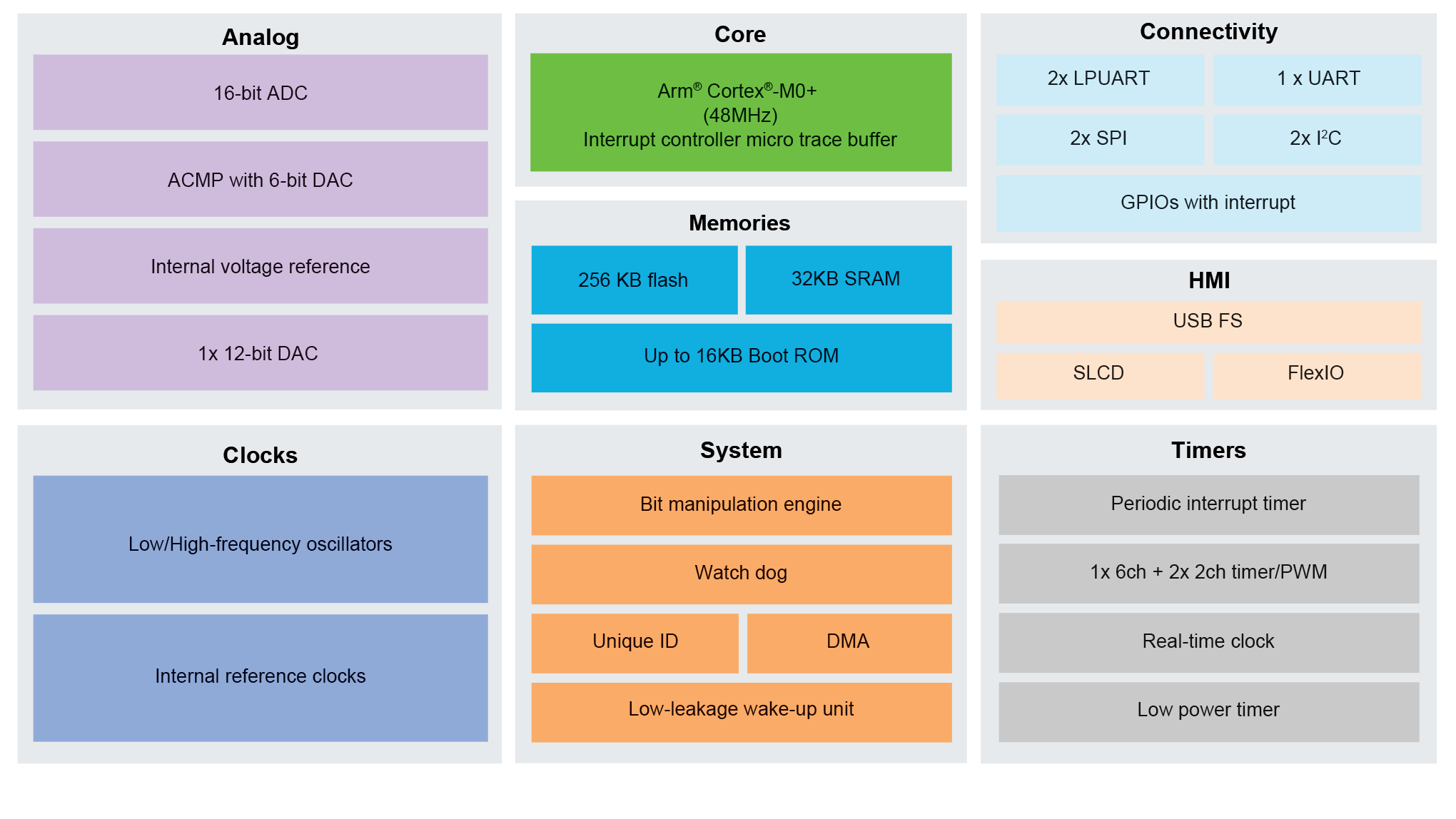

ブロック図

MCX C14x/24x/44x

MCX C14x/24x/44x Block Diagram
図を取得する PDF

特長

コア・プラットフォーム

  • Arm® Cortex®-M0+ @ 48 MHz

低消費電力での高い性能

  • 最も近い8/16ビット製品の2倍以上のCoreMarks®/mA
  • シングルサイクル高速I/Oアクセス・ポートにより、ビット・バンギングやソフトウェア・プロトコル・エミュレーションが容易で、8ビット・マイクロコントローラの「ルック＆フィール」を維持。
  • 多数の柔軟な低消費電力モード（新しい演算処理モードを含む）。ペリフェラルを非同期ストップ・モードにすることで動的消費電力を削減
  • LPUART、SPI、I²C、ADコンバータ (ADC)、LPタイマ、DMAは、コアをウェイクアップせずに低消費電力モードでの動作をサポート

メモリ

  • 16KB ROMと内蔵ブートローダにより、MCUのプログラミングが簡素化され、フラッシュのアップグレードが容易
  • セキュリティ回路により、RAMやフラッシュの内容に対する不正なアクセスを防止

アドバンスト・アナログ

  • 16ビット818 ksps ADC x 1、最大16チャネル
  • 12ビットDAC
  • 1.2 V高精度内部リファレンス電圧
  • 6ビットDACを内蔵した高速コンパレータ

タイマ

  • 周期割込みタイマ
  • 6チャネル x 1および2チャネル x 2、16ビット低消費電力タイマPWMモジュール、DMA対応
  • 低消費電力タイマであり、VLLS0を除くすべての電源モードで動作可能

コネクティビティおよびHMI

  • セグメントLCDインターフェース
  • USB 2.0（フルスピード）

電源および動作

  • 温度範囲：-40°C～125°C (Tj)
  • IO：1.71 V～3.6 V

パッケージ・オプション

  • 32QFN：5 x 5 x 0.9 mm、0.5 mmピッチ
  • 48QFN：7 x 7 x 0.9 mm、0.5 mmピッチ
  • 64LQFP：10 x 10 x 1.6mm、0.5 mmピッチ
  • 64MAPBGA：5 x 5 x 1.23mm、0.5 mmピッチ
