Name: Kinetis K66180 MHz Dual HighSpeed and Fullspeed USBs 2MB Flash Microcontrollers MCUs based on Arm CortexM4 Core
Price: 15.90 USD
Availability: InStock

画像をクリックすると拡大します。

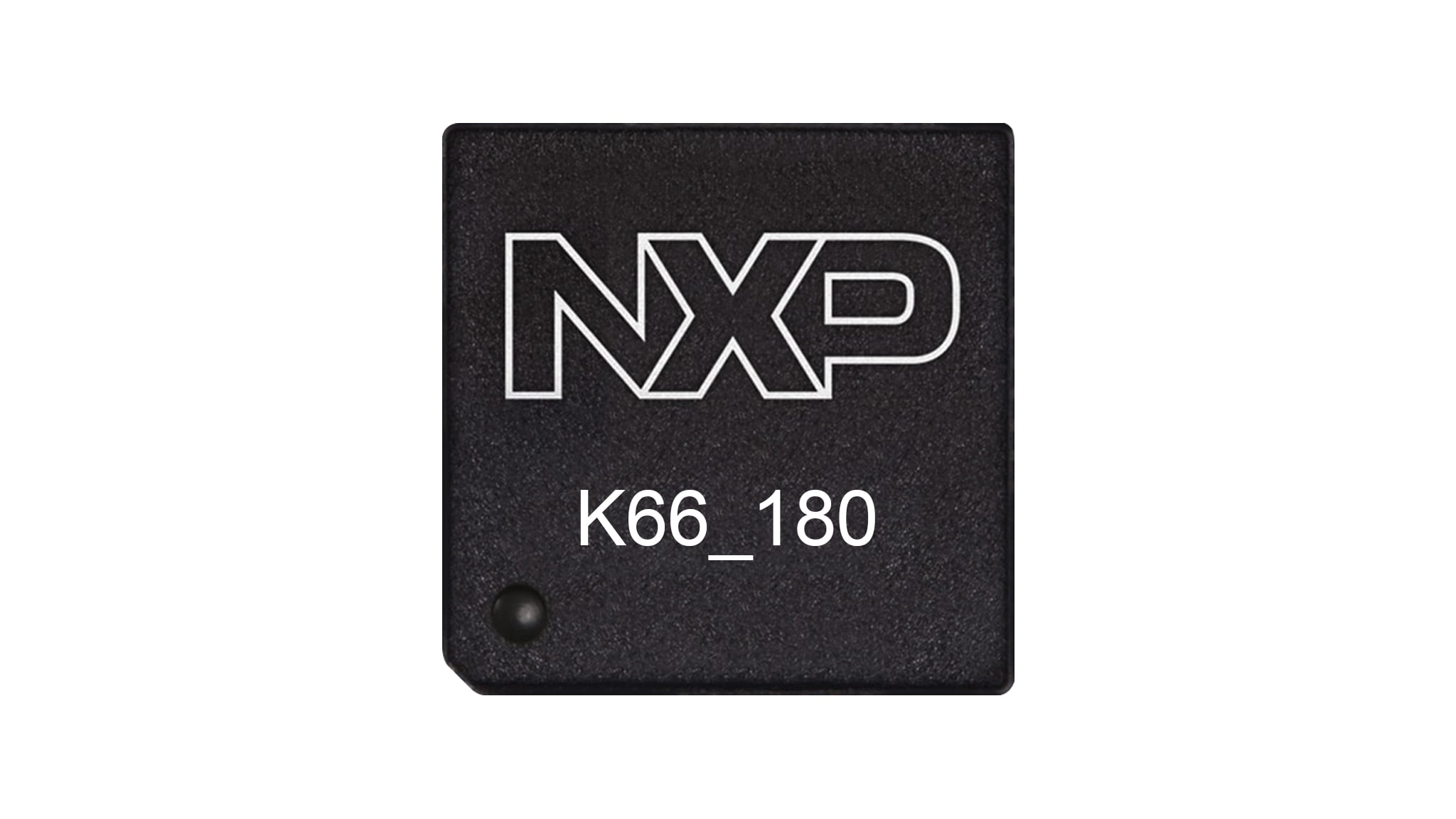

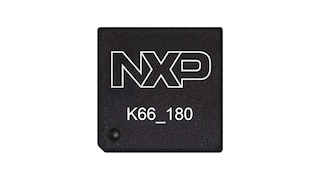

The Kinetis® K66 180MHz IEEE® 1588 Ethernet MCUs are built on the Arm® Cortex®-M4F core and are optimized for applications requiring large memory densities and low-power processing efficiency. This family offers High-Speed USB with integrated HS USB Physical Transceiver, SDRAM Controller, Full Speed Crystal-less USB support, as well as shares the comprehensive enablement and scalability of the Kinetis portfolio.

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

Kinetis K65/K66 MCU Family Block Diagram

図を取得する PDF

Features

Performance

Arm® Cortex®-M4F core running at 180 MHz with single precision floating point unit and 8KB of Cache
Up to 32-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput, with asynchronous support in Stop mode.
Crossbar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Ultra-Low-Power

Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times. Run power consumption down to <250 μA/MH and static power consumption down to 9.0 µA with full state retention and <6 µS wakeup. Lowest static mode down to 254 nA (VLLS0).
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to seven internal modules and over 20 pins as wake-up sources in low-leakage stop (LLS) and very low-leakage stop (VLLS) modes
Low-power timer for continuous system operation in reduced power state

Memory

Up to 2 MB flash. Fast access, high reliability with four-level security protection
256 KB of SRAM
FlexMemory: Up to 4 KB of user-segmentable byte write/erase EEPROM for data tables/system data. In addition, up to 256KB of FlexNVM for extra program code, data or EEPROM backup

Mixed-Signal Capability

Two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution.
Two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
Four high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Timing and Control

Up to two 16-bit low-power timer PWM modules, two 8-channel motor control/general purpose/PWM timers and two 2-ch quad decoder/general purpose timers
16-bit Low Power Timer, as well as four 32-bit Periodic interrupt timers
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides a time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows the use of overlay surfaces up to 5 mm thick

Connectivity and Communications

IEEE 1588 Ethernet MAC with hardware time stamping provides precision clock synchronization for real-time industrial control
Dual USB supporting High-speed (HS), with integrated HS transceiver, and Full-speed (FS), with integrated FS transceiver. Intelligent design with embedded 48 MHz oscillator allowing for FS USB crystal-less system design.
One Low Power UART (LPUART), along with five standard UARTs with ISO7816 smart card support.
Inter-IC Sound (I²S) serial interface for audio system interfacing
Two CAN modules for industrial network bridging
Three SPI and four I²C

Reliability, Safety and Security

Memory protection unit provides memory protection for all leaders on the crossbar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs
System security with hardware encryption, random number generator and real-time clock

MCUXpresso Software and Tools

K64_120

アクティブ

類似

Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

データ・シート:
PDF

K65_180

アクティブ

類似

Kinetis® K65-180 MHz, Dual High-Speed and Full-speed USBs, 2MB Flash, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

データ・シート:
PDF

K26_180

アクティブ

類似

Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

データ・シート:
PDF

購入/パラメータ

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

ドキュメント

クイック・リファレンスドキュメンテーションの種類

7 ドキュメント

コンパクトリスト

Migration from Kinetis K Series to MCXNx4x Series[AN14532]

HTML | PDFJan 16, 2025改訂 1.0
Multiplexing Pins Between SDRAM and FLEXBUS on K65/K66[AN5095]

PDFApr 5, 2015改訂 0

Mask Set Errata for Mask 0N65N[KINETIS_K_0N65N]

PDFJan 14, 2016改訂 17Nov2015

KQRUG, Kinetis K Quick Reference User Guide[KQRUG]注目

PDFMay 30, 2014改訂 3

Kinetis K66: 180MHz Cortex_®-M4F up to 2MB Flash (144pin)[K66P144M180SF5V2]

PDFApr 23, 2017改訂 4

Kinetis^® K6x: Cortex-M4(F) MCUs with Ethernet and USB[KINK6XFS]注目

PDFJun 13, 2016改訂 7

Kinetis K66: 180MHz Cortex_®-M4F up to 2MB Flash (144pin)[K66P144M180SF5RMV2]

PDFMay 29, 2019改訂 4

設計・リソース

デザイン・ファイル

クイック・リファレンス設計・ファイルの種類.

3 設計・ファイル

完全な内訳を受け取ります。 製品の設置面積などについては、 eCad ファイル.

シミュレーションとモデル
K65-K66 2M IBIS Model

ZIP改訂 1.0Jun 13, 2024 08:24:006.28 MBK65-K66-2M-IBIS
ダウンロードToggle Dropdown
- キューに追加
- キューから削除
- ファイルサイズが大きい場合にお勧めします。
- キューを表示
シミュレーションとモデル
BSDL Files for K65-K66

ZIP改訂 1.0Jun 13, 2024 08:12:00255.32 KBK65-K66-2M-BSDL
ダウンロードToggle Dropdown
- キューに追加
- キューから削除
- ファイルサイズが大きい場合にお勧めします。
- キューを表示
シンボルおよびフットプリント
Kinetis^® Symbols, Footprints and Models

INTERNAL改訂 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

ダウンロード

ハードウェア

クイック・リファレンスボードタイプ.

1-5 件/全 12 ハードウェア提供

評価・開発ボード
Kinetis K65 MCU Tower System Module for Kinetis K26, K65, and K66 MCUs注目
アクティブ

TWR-K65F180M
完全なソリューション
モバイル・ロボティクスBuggy3キット、RDDRONE-FMUK66およびペリフェラル付属

MR-BUGGY3
エミュレータ、プローブ、プログラマ
Universal Multilink開発インターフェース
アクティブ

UMultilink
追加ハードウェアを利用可能パートナー・ソリューションの特集を表示.
エミュレータ、プローブ、プログラマ
MCU-Link Debug Probe
アクティブ

MCU-LINK
エミュレータ、プローブ、プログラマ
LPC-Link2
アクティブ

OM13054
エミュレータ、プローブ、プログラマ
Universal Multilink FX高速開発インターフェース
アクティブ

U-MULTILINK-FX
エミュレータ、プローブ、プログラマ
PEmicro Cyclone programmer
アクティブ

CYCLONE
エミュレータ、プローブ、プログラマ
PEmicro Cyclone FX programmer

CYCLONE-FX
エミュレータ、プローブ、プログラマ
MCU-Link Pro Debug Probe
アクティブ

MCU-LINK-PRO
評価・開発ボード
MPC560x Calibration, Debug and Interface Boards
アクティブ

MPC560xBOARDS
評価・開発ボード
Freedom Development Platform for Kinetis^® K66, K65, and K26 MCUs
アクティブ

FRDM-K66F
評価・開発ボード
MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces
アクティブ

MCU-LINK-MR

全て表示

1-5 件/全 8 ハードウェア提供

組み込みボード・ソリューション
uCMK6x IoT SoM

K60/K64 MCU based SoM for secure IoT systems. It includes Mbarx Secure IoT software for connectivity, telemetry, management, OTA firmware updates over Ethernet or Wi-Fi.

By Arcturus Gold パートナー
組み込みボード・ソリューション
uCMK64 VoIP SoM

K64 MCU based SoM for hardened VoIP and IP audio/PA applications. Supports SIP/RTP with audio processing including intelligibility enhancements. SIPxtream + Mbarx secure ...

By Arcturus Gold パートナー
評価・開発ボード
Mikromedia 7 Capacitive

Mikromedia 7 Capacitive is a compact development board designed as a complete solution for the rapid development of multimedia and GUI-centric applications. As a fully fu...

By MIKROE Gold パートナー
評価・開発ボード
Fusion for ARM v8

Fusion for ARM v8 offers universal support for ARM Cortex MO, M3, M4, and M7 Microcontrollers on one board. The development board is equipped with a wide range of superio...

By MIKROE Gold パートナー
評価・開発ボード

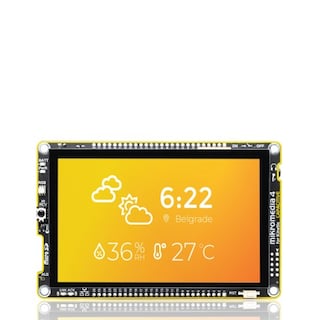

Mikromedia 5 for Kinetis Capacitive
