18 Channel Li-Ion Battery Cell Controller IC ASIL D with EIS
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

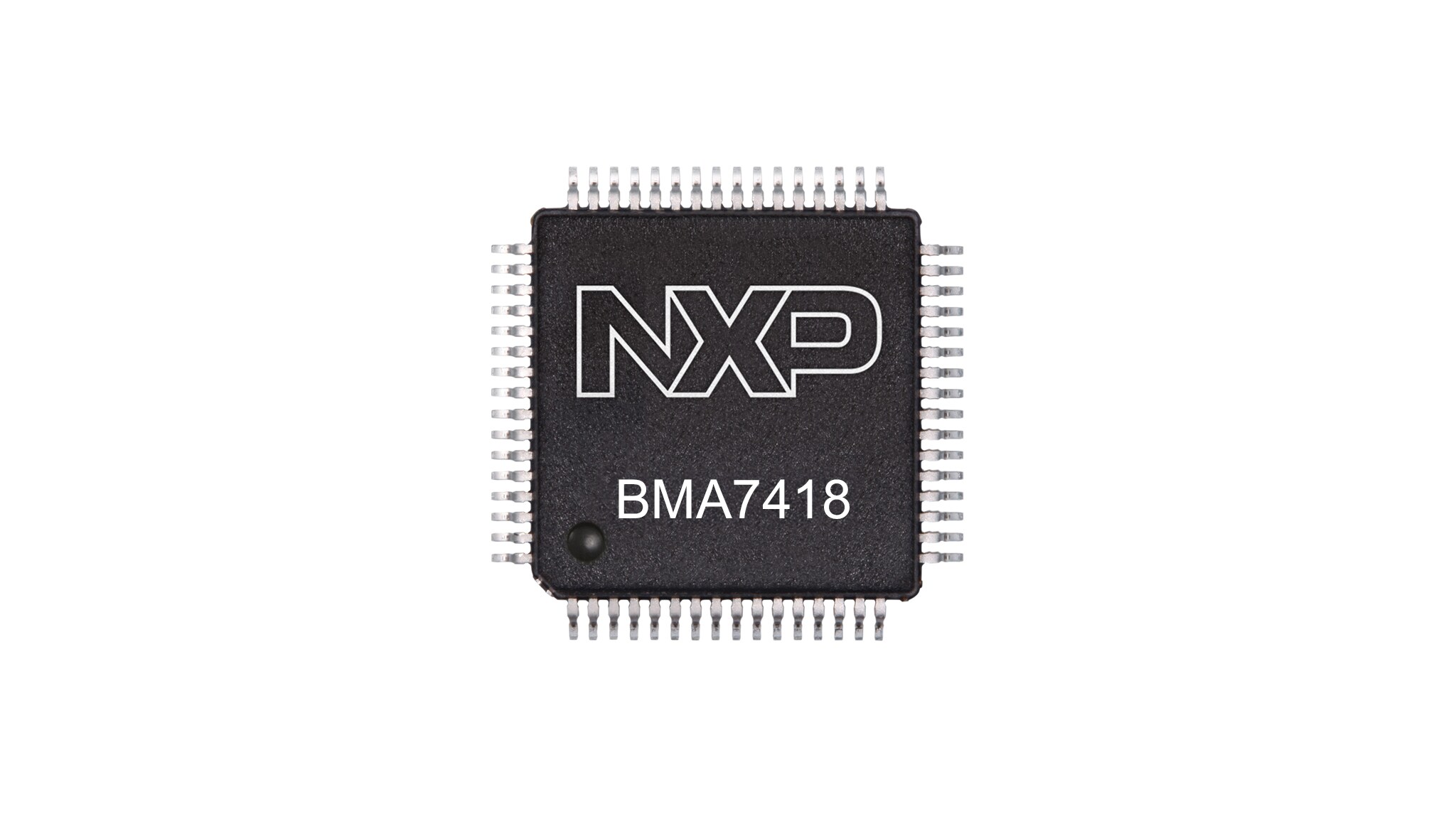

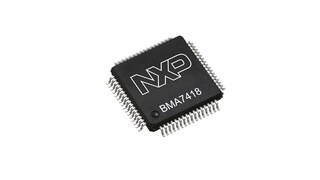

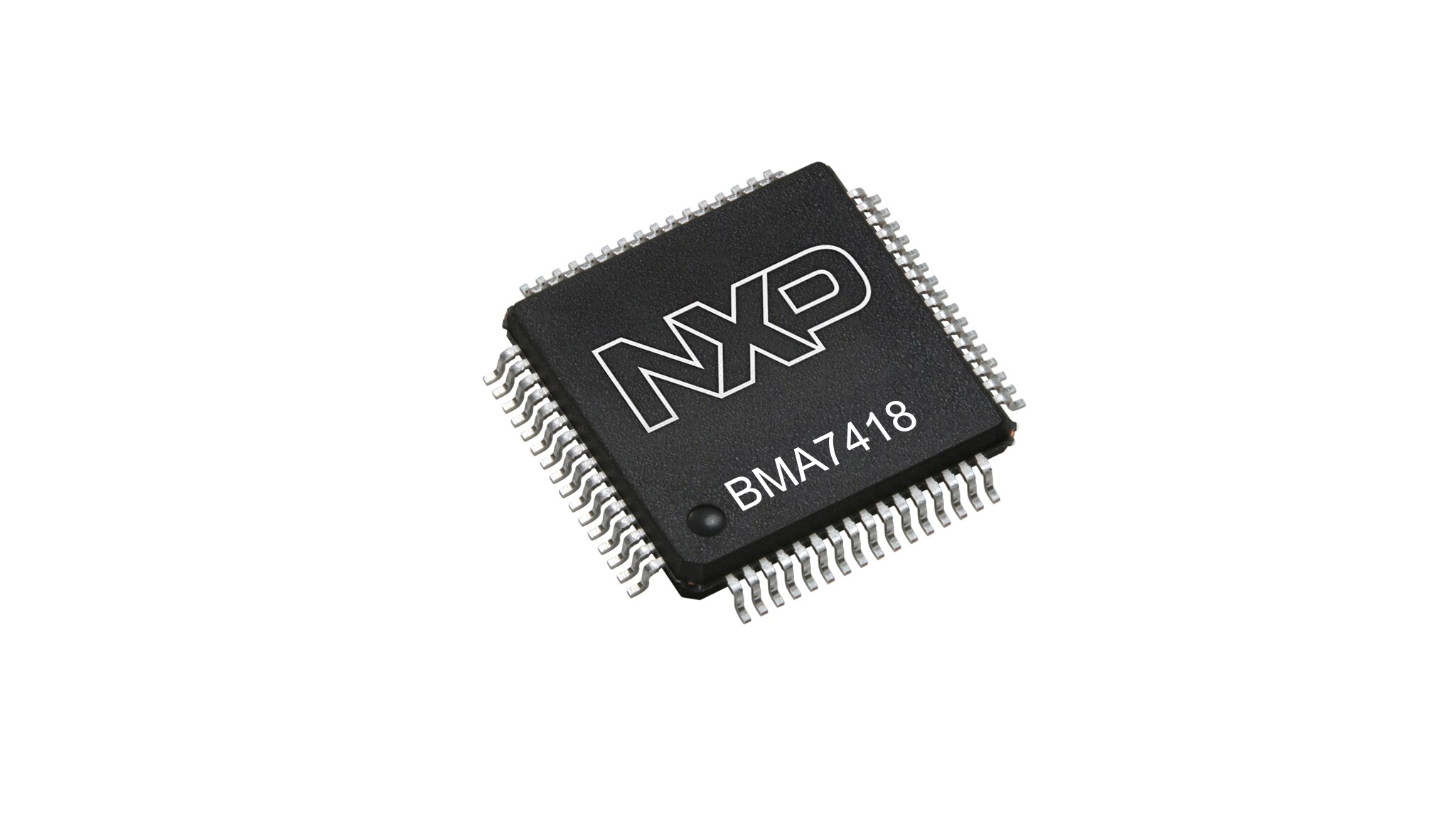

BMA7418 is an automotive lithium-ion (Li-ion) battery cell controller-integrated circuit (IC) with a dedicated, high-accuracy analog-to-digital converter (ADC) per voltage measurement channel. Electrochemical impedance spectroscopy (EIS) is supported by a high synchronization capability and integrated Discrete Fourier Transform (DFT) per measurement channel. With BMA7118 and BMA7418 in the same product family—having pin compatablity and using the same software—the two are interchangeable. BMA7418 offers low 5 mA current consumption due to its integrated DC-to-DC converter. As a fully redundant and independent internal architecture, it achieves automotive safety integrity level ASIL D functional safety.
製品詳細
Features
- Supports 4 to 18 cells per device
- Dedicated, high accuracy ADC per voltage measurement channel with high synchronization capability required for EIS
- High synchronization capability and integrated DFT per measurement channel for EIS
- Typical ±0.8 mV measurement error with ultra-low long-term drift
- ISO 26262 ASIL D support for cell voltage and temperature measurement capability
- External temperature and auxiliary voltage measurements
- Isolated daisy chain up to 62 nodes or serial peripheral interface (SPI) communication
- Diagnostics, functional safety and robustness
- Low external bill of materials (BOM) cost
