Getting Started with the MPC-LS-VNP-EVB

最終更新日時： 2022-12-22 15:56:00サポート MPC-LS Vehicle Network Processing Evaluation Board

このドキュメントの内容

  • 1

    Plug It In

  • 2

    Get Software

  • 3

    Choose, Build and Load

    お客様の MPC-LS Vehicle Network Processing Evaluation Board

    このドキュメントの内容

    1. Plug It In

    Let's take your MPC-LS-VNP Evaluation Board for a test drive.

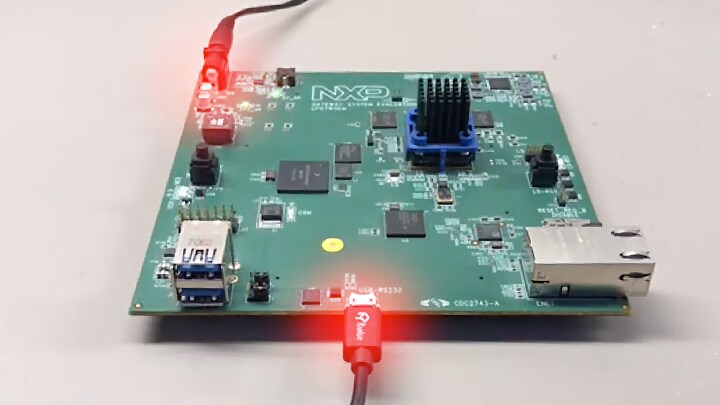

    1.1 Connect the MPC-LS-VNP-EVB

    Attach the 12V power supply for powering both the MPC-LS-VNP-EVB and the micro USB cable.

    次へGet Software

    2. Get Software

    2.1 Download and Install the FTDI Driver

    Download the FTDI Driver

    前へPlug It In
    次へChoose, Build and Load

    3. Choose, Build and Load

    3.1 Choose, Build and Load

    1. Select Browse from my computer for driver software; then select the FTDI driver that has been downloaded

      Note: You might need to restart your computer.

    2. Open Tera Term Console and go to Device Manager and right-click the COM port detected and select Update Driver Software

      Note: If your Serial option is not enabled, be sure your serial port is connected and restart the Tera Term Console.

    3. Go to Setup → Serial port and Select a 115200 baud rate

    4. Reset the MPC-LS-VNP-EVB by pressing the L5 Reset button

      Note: Do NOT press any key while the counter goes down from 10 to 0.

    5. Enter "Root" as Log in and press Enter

      The getting started IPCF application is auto-executed on login.
