MPC5777M Engine Management Evaluation System

MPC5777MEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

The MPC5777MEVB is an evaluation system for engine management and power inverter applications requiring advanced performance, timing systems, and functional safety capabilities.

Based on the 32-bit Power Architecture® MPC5777M ultra-reliable microcontroller, the MPC5777MEVB includes a motherboard and two different (MCU package options) daughterboards working together or as standalone.

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC57xx MCU

  • MPC5777M: Ultra-Reliable MPC5777M MCU for Automotive and Industrial Engine Management

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based >MPC5777M

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

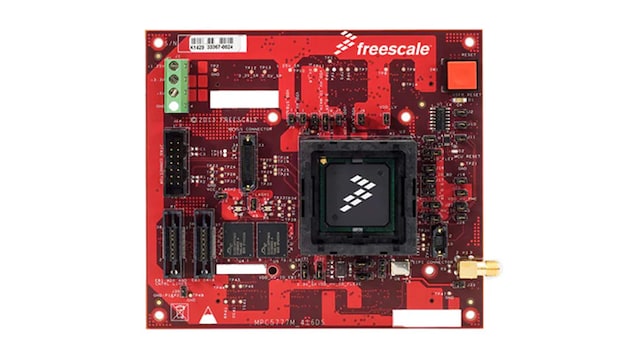

MPC5777M-416DS daughterboard

  • Adapter supports MPC5777M in 416BGA package
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode power)
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

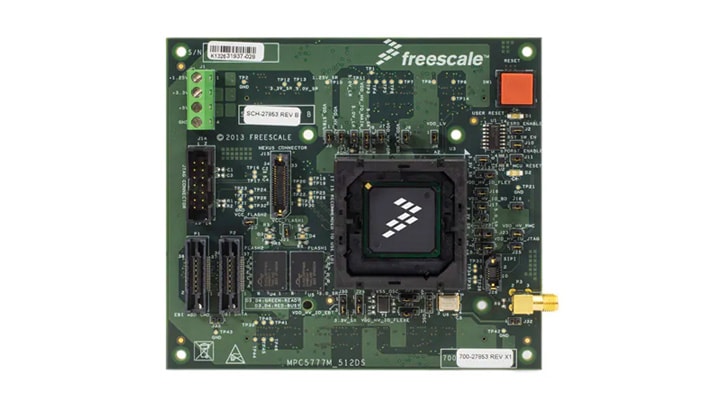

MPC5777M-512DS daughterboard

  • Adapter supports MPC5777M in 512BGA package
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode power)
  • External Synchronous SRAM (4Mbit) with jumper configurable CS0/CS1 chip select
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

購入オプション

MPC5777M-416DS-Image

クリックして展開

  • MPC5777M-416DS
    アクティブ

  • MPC5775C MAPBGA 416 daughtercard for Engine Management.

  • $729.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文

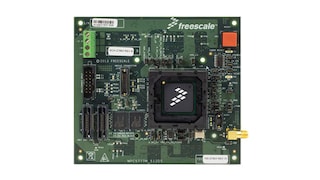

MPC5777M-512DS-Image

クリックして展開

  • MPC5777M-512DS
    アクティブ

  • MPC5775C MAPBGA 512 daughtercard for Engine Management.

  • $639.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
MPC57XXXMB-Image

クリックして展開

  • MPC57XXXMB
    アクティブ

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 8
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
