CAN SIC XL Transceiver with Standby Mode
- 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。

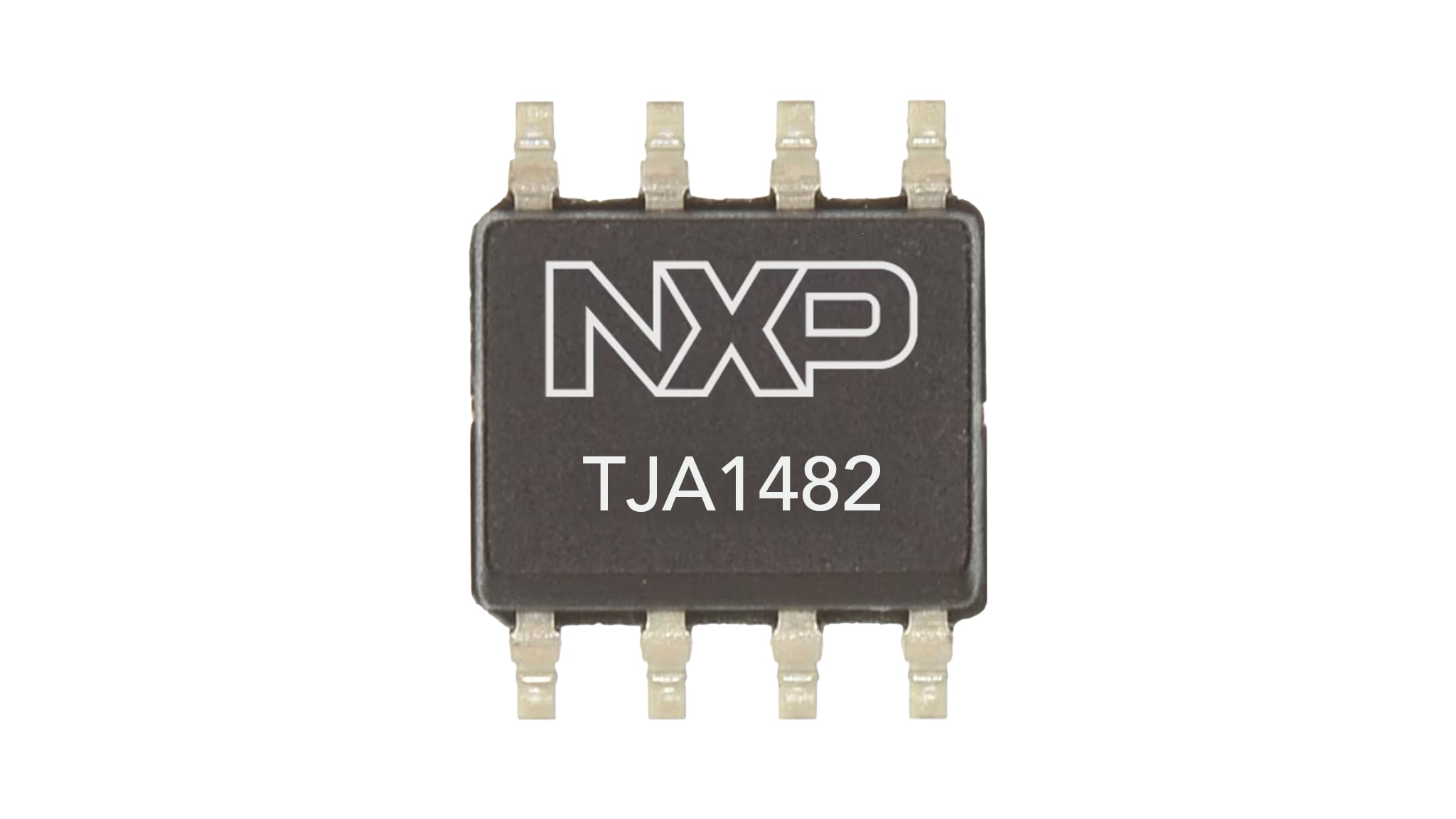

The TJA148x controller area network Signal Improvement Capability eXtra Large (CAN SIC XL) transceivers support ISO 11898-2:2024 CAN SIC XL, enabling reliable communication up to 20 Mbit/s in large topologies and payloads up to 2048 bytes for higher bandwidth and lower bus load. They interface CAN, controller area network flexible data-rate (CAN FD) or CAN XL controllers to the two-wire bus. TJA1482 is an 8-pin standby-mode device, qualified to AEC-Q100 Grade 1, with 3.3 V / 5 V supply voltage for input/output (VIO) support.
製品詳細
Features
Core Capabilities
- ISO 11898-2:2024, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
- Qualified according to AEC-Q100 Grade 1
- Input/output supply voltage (VIO) input for interfacing with 3.3 V - 5 V microcontrollers (MCUs)
- Available in leadless HVSON8 (3.0 mm x 3.0 mm) package with improved automated optical inspection (AOI) capability
CAN SIC XL
- CAN wake-up pattern filter time of 0.15 μs to 0.95 μs, meeting Classical CAN, CAN FD and CAN XL requirements
- Supports CAN four-stage (dom-rec-dom-rec) wake-up pattern according to ISO 11898-2:2024 Section A.4.1
- CAN SIC XL communication up to 20 Mbps and up to 2048 bytes of payload
Fail-Safe and Protection
- Undervoltage detection with defined handling on all supply pins
- Full functionality guaranteed from the undervoltage detection thresholds up to the maximum limiting-voltage values
- Defined behavior below the undervoltage detection thresholds
- Thermally protected
