CAN SIC XL Transceiver with Sleep Mode and 1.8 V VIO Support
- 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。

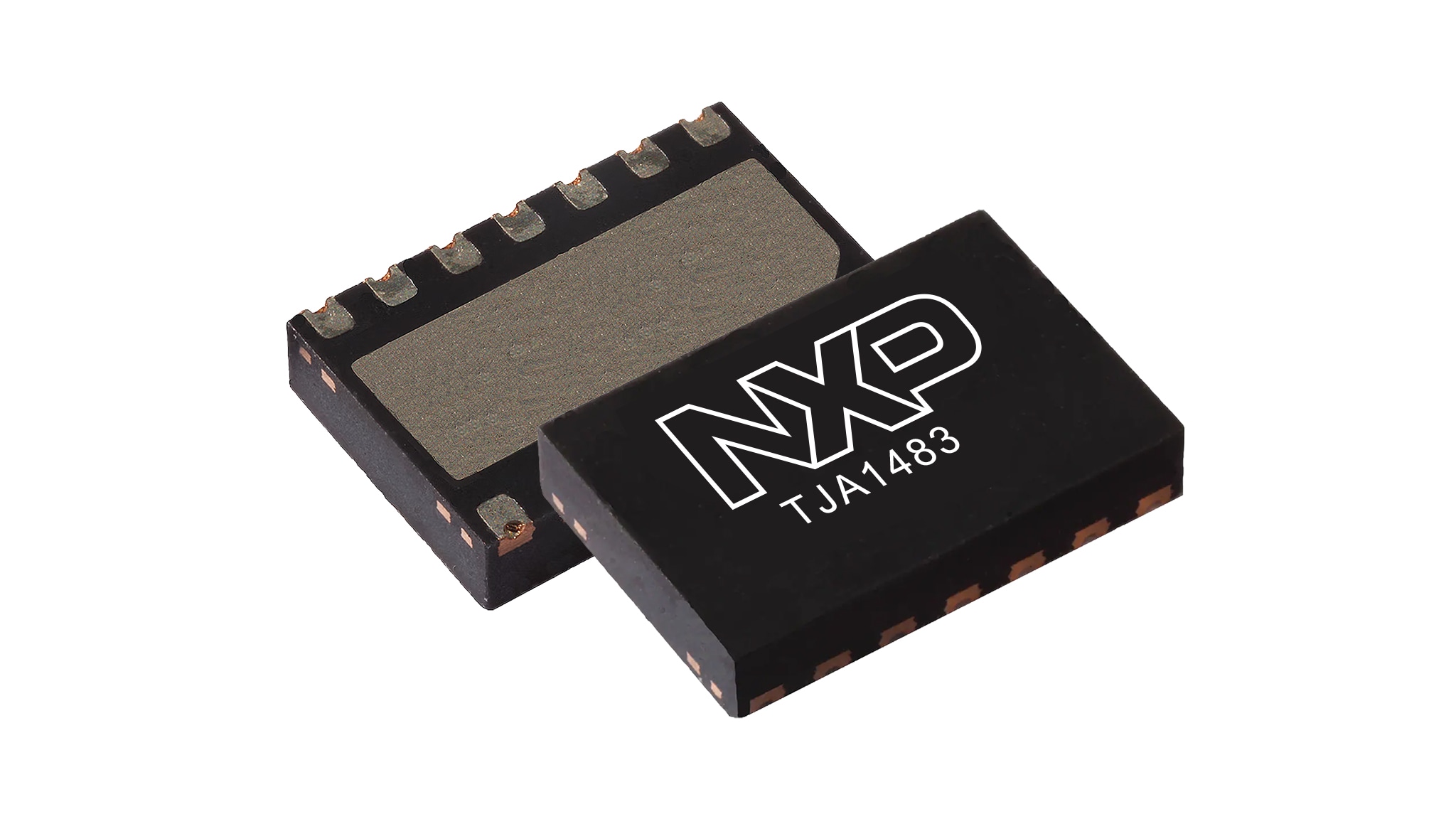

The TJA148x controller area network signal improvement capability (CAN SIC) transceivers support ISO 11898‑2:2024 CAN SIC XL communication, enabling reliable data rates up to 20 Mbit/s and payloads up to 2048 bytes for higher bandwidth and lower bus load compared with CAN FD. They interface CAN, controller area network flexible data-rate (CAN FD) or CAN XL controllers to the two‑wire bus. The TJA1483 is a 14 pin sleep mode device with VIO (1.8 V / 3.3 V / 5 V), inhibit output active low (INH_N) for wake‑up control and error output active low (ERR_N) for wake‑up indication.
製品詳細
Features
Key Features
- ISO 11898-2:2024, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
- Qualified according to AEC-Q100 Grade 1
- Input/output supply voltage (VIO) input for interfacing with 3.3 V–5 V microcontrollers (MCUs)
- Available in leadless HVSON8 (3.0 mm x 4.5 mm) package with improved automated optical inspection (AOI) capability
CAN SIC XL
- CAN wake-up pattern filter time of 0.15 μs, meeting Classical CAN, CAN FD and CAN XL requirements
- Supports CAN four-stage (dom-rec-dom-rec) wake-up pattern according to ISO 11898-2:2024 Section A.4.1
- CAN SIC XL communication up to 20 Mbit/s and up to 2048 bytes of payload
Fail-Safe and Protection
- Undervoltage detection with defined handling on all supply pins
- Full functionality guaranteed from the undervoltage detection thresholds up to the maximum limiting‑voltage values
- Defined behavior below the undervoltage detection thresholds
- MCU reaction timeout
- CAN wake-up receiver powered by battery voltage (VBAT), allowing VIO and common collector voltage (VCC) to be shut down
- Thermally protected
