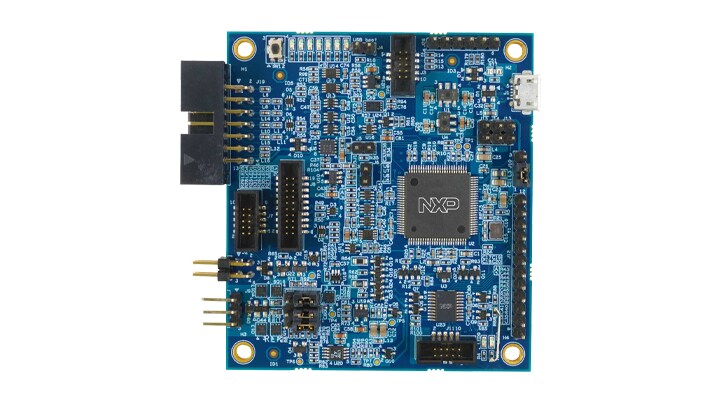

MCU-Link Pro Debug Probe

画像にカーソルを合わせると拡大表示されます。

製品詳細

セクションを選択:

対応製品

プロセッサ&マイクロコントローラ

LPC1500 Cortex-M3

i.MX RTクロスオーバーMCU

K2x / KS2x USB

K3xセグメントLCD

K7xグラフィックLCD

汎用MCU

K6xイーサネット

KEシリーズArm Cortex-M4/M0+

K32 Lシリーズ Cortex-M4/M0+

KLシリーズ Arm Cortex-M0+

K5x 測定

KMシリーズCortex-M0+

LPC800 Arm Cortex-M0+

LPC1100 Cortex-M0+/M0

LPC5500シリーズ Arm Cortex-M33

KVシリーズArm Cortex-M4/M0+/M7

K8xセキュア

K0x エントリレベル

LPC54000 Cortex-M4

LPC1800 Cortex-M3

MCX Nシリーズ・マイクロコントローラ

MCX Aシリーズ・マイクロコントローラ

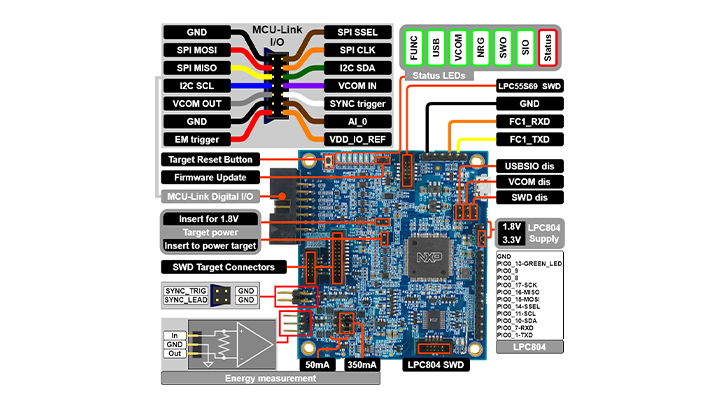

Features

Microcontrollers (MCU)

  • LPC55S69 dual Arm Cortex M33 MCU running at 150MHz
  • LPC804 MCU for peripheral emulation

Debug

  • CMSIS-DAP and J-Link LITE compatible firmware options
  • SWD target debug
  • SWO trace/profiling I/O support

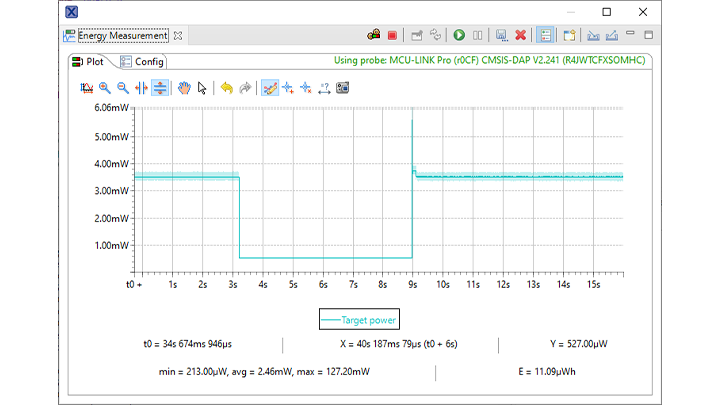

  • Energy measurement down to sub 200 nA resolution at 1% typical accuracy
  • Analog signal monitor (1.2 to 3.6 V)
  • Option to power target system (1.8 V or 3.3V up to 400 mA)
  • Supports target debug for systems running from 1.2 V to 5 V

Connectivity

  • VCOM interface with cable to connect to target system (TXD, RXD, ground)
  • High-speed USB
  • USB to I2C and SPI bridging

User interface

  • Multiple status LEDs for ease of use

Supported IDEs

  • Compatible with MCUXpresso IDE
  • Compatible with tools/IDEs that support CMSIS-DAP or J-Link protocol
  • Compatible with MCUXpresso for VS Code

購入オプション

MCU-LINK-PRO-Image

クリックして展開

  • MCU-LINK-PRO

  • MCU-Link Pro Debug Probe.

  • JP¥5,886
  • の数量に対して 1
    • 在庫状況: 在庫あり
    • 在庫: 27
    • 配送: 通常 1~2営業日以内に配送
NXPから購入する代理店から購入する
