Second Generation Data Path Acceleration Architecture (DPAA2)
DPAA2 アラートの受信
NXP has integrated data path and packet processing for more than twenty years. Working in concert
with the general-purpose processors, DPAA2 enables very high networking performance while executing
dynamic network functions: parse and classify, load-steering, network acceleration and multi-level
prioritized queuing. The DPAA2 architecture is an evolution and extension of DPAA, taking a more holistic view of the full system architecture; it brings independent and
more efficient operation to each level of packet processing.
ソフトウェア詳細

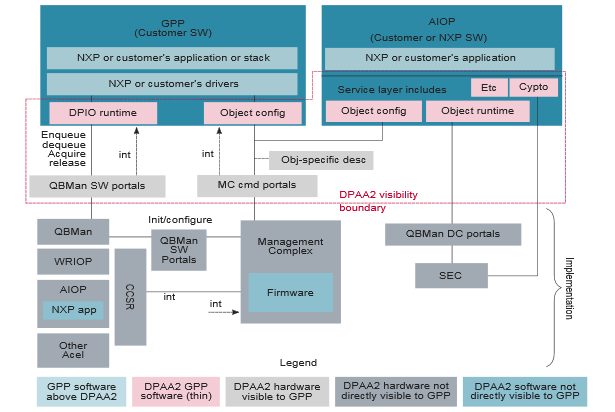

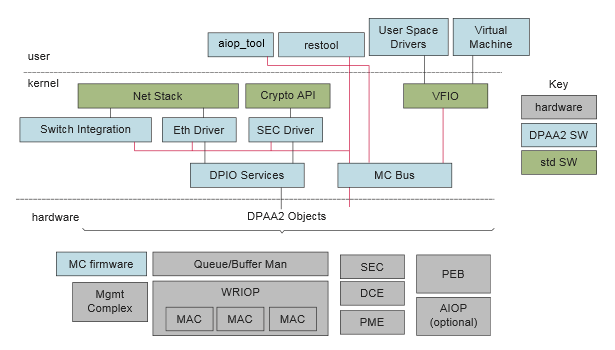

図
図を選択する。:
Features
- ARM Architecture
- Advanced I/O Processor (AIOP)
- WRIOP
- SEC Crypto acceleration
- Pattern Matching Engine
- Data Compression Engine
- Management Complex
- Linux SDK-
- Linux kernel and device drivers
- Yocto Embedded Linux development environment
- GNU tools (compilers, linkers, etc.)
- Bootloaders and firmware
- Libraries and middleware
- Reference applications
- Linux root filesystem
- Deployment mechanisms
