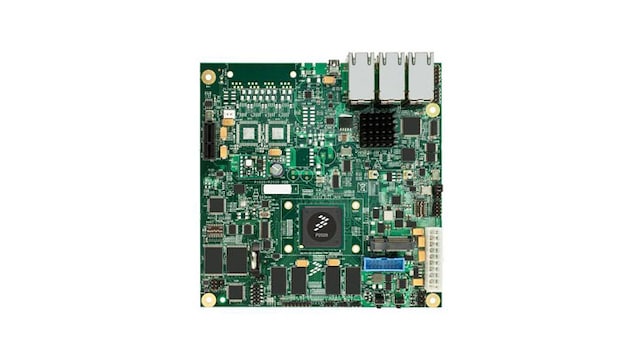

P2020 Reference Design Board
P2020RDB アラートの受信
The NXP® P2020RDB is a highly-integrated reference design board that can help shorten your time to market.
- Ideal for networking, wired and wireless access, industrial and medical applications.
- This cost-effective board is based on the QorIQ® P2020E processor family, along with leading-edge external components to help you quickly design and implement your target application.
- The P2020RDB leverages the P2020E processor and supports both the dual-core P2020E and single-core P2010E configurations.
- The P2020E processor family is based on dual e500 cores, built on Power Architecture® technology, which has a core frequency range of 800–1200 MHz.
製品詳細
Features
Processor
- QorIQ® P2020E processor family
Memory
- 1 GB DDR2
- 16 MB (128 MB device) NOR
- 32 MB NAND flash memory
- 16 MB SPI ROM
Connectivity
- PCI Express
- Ethernet - Six 10/100/1000 ports
- Dual I2C
- SD/MMC card slot
- USB
- UART: One DB-9 connector
Size
- Mini-ITX Form Factor
- 170 mm x 170 mm
Tools and OS Support
- Software Tools
- Linux® 2.6.x Kernel
- Cross compile and native GNU toolchain
- CodeWarrior™ USB TAP
- Lead-Free (RoHS), CE, and FCC Certification
