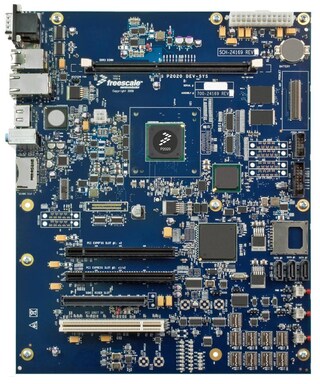

P2020DS-PC
-
QorIQ P2020 Development System, revC.
ソフトウェア
1 ソフトウェア・ファイル
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
P2020 Development System
P2020DS アラートの受信

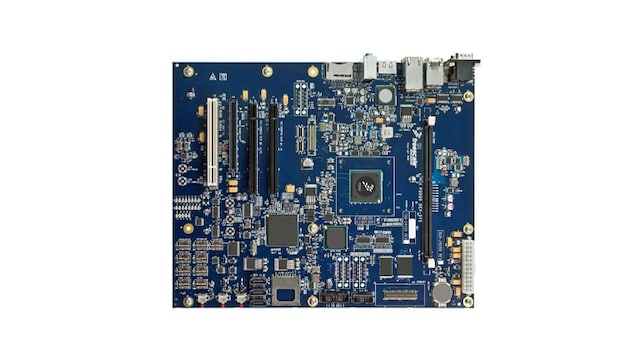

The P2020/P2010 development system (P2020DS) leverages the highly-integrated QorIQ® P2020 processor and leading-edge external components.
- Ideal for hardware and software development for embedded applications.
- The high level of integration in the P2020E processor helps to lower system costs, improve performance and simplify board design.
- The P2020E processor family is based on dual e500 cores, built on Power Architecture® technology, which has a core frequency range of 800–1200 MHz.
製品詳細
Features
Memory
- 2 GB DDR3 DIMM
- 128 MB NOR flash memory
- 16 MB SPI ROM
- 256 B NVRAM
Connectivity
- PCI Express®: Dual x2 slot
- Ethernet
- SD/MMC card slot
- USB Type A connector
- UARTs: Two DB9 connectors
- Three 10/100/1000 Ethernet connectors
- PCI Express®: Dual x2 slot
- SGMII riser card slot
- SATA2
- GPIO: 16
- Accessible via test header
- Documentation
- IEEE® 1588 v2
- Clock input from precision oscillator
- Dual I2C
- Power supplies
User Components
- System logic (Pixis FPGA)
- System clock
- DDR clock
