MPC563xM Engine Management Evaluation System

XPC563MKIT

画像にカーソルを合わせると拡大表示されます。

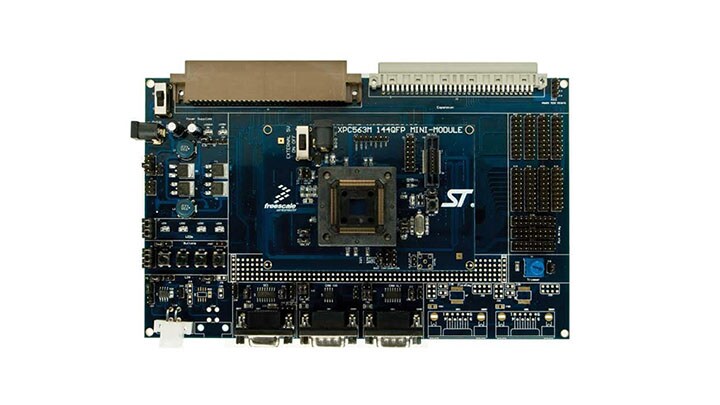

The XPC563M EVB is an evaluation system supporting the NXP® MPC563xM microprocessors. The complete system consists of an XPC56xxMB Motherboard and an XPC563MADPT Mini-Module which plugs into the motherboard. Different Mini-Modules are available for evaluating devices with different footprints in the MPC563xM family of microprocessors.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC56xx MCU

  • MPC563xM: Ultra-Reliable MPC563xM for Automotive and Industrial Engine Management

パワーマネージメント

統合型スイッチング・レギュレータ

  • MC33730: Power Supply with Multiple Linear Regulators

Features

XPC563MADPT Mini-Module Board Features

  • Can be used as a standalone board by providing external 5V power supply input
  • XPC563MADPT144S has socket for MPC563xM in 144LQFP footprint
  • XPC563MADPT208S has socket for MPC563xM in 208BGA footprint
  • ON/OFF Power Switch with LED indicator
  • Reset button with filter and LED indicator

XPC56xxMB Board Features

  • A 12 VDC power supply input barrel connector
  • 2 CAN channels with jumper enable
    • One channel with High-Speed transceiver
    • One channel with Low-Speed Fault Tolerant and High-Speed transceiver (selectable with jumpers)
  • 2 LIN channels with jumper enable
    • One with transceiver and pin header connector populated
    • One channel with footprints only
  • 1 SCI channel with jumper enables
  • 2 FlexRay channels with jumper enable
    • One channel with transceiver and DB9 male connector
    • One channel with footprint only
  • 4 user push buttons with jumper enables and polarity selection
  • 4 user LED’s with jumper enables
  • 1 potentiometer for analog voltage input

購入オプション

MPC563MKIT176-Image

クリックして展開

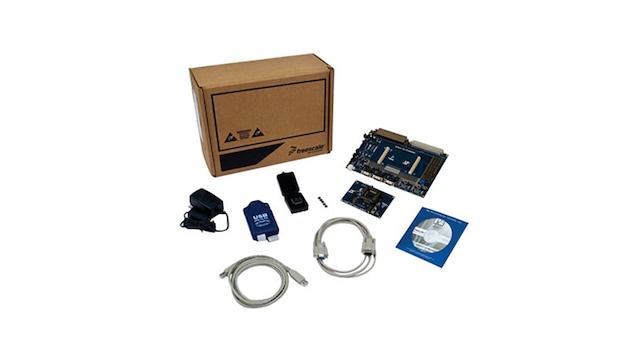

  • MPC563MKIT176

  • Evaluation Kit for Qorivva MPC563xM, XPC56xxMB2 Motherboard and MPC563MADPT176S mini-module.

    • XPC56xxMB Motherboard
    • XPC563MADPT144S or XPC563MADPT208S Mini-Module
    • XPC56xx Resources CD-ROM
    • P&E USB-ML-PPCNEXUS Hardware Interface Cable
    • USB A-to-B Cable
    • NXP Warranty Card
  • JP¥63,606
