MPC560xS Instrument Cluster Evaluation System

XPC560SKIT
アクティブ

画像にカーソルを合わせると拡大表示されます。

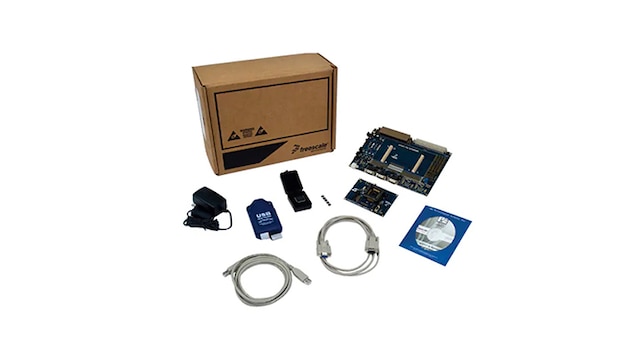

This EVB supports the NXP® MPC56xxS microprocessors for automotive instrumentation clusters. It consists of an XPC56XXMPB2 Motherboard and an XPC560SADPT Mini-Module that plugs into the motherboard.

We recommend ordering all together using the "SKIT" part numbers; remember to order the MCU separately.

Different Mini-Modules are available for evaluating devices with different footprints in the MPC56xxS-family of microprocessors. The evaluation system allows full access to the CPU, all of the CPU’s I/O signals, and the motherboard peripherals. The Mini-Module may be used as a standalone unit, which allows access to the CPU, but without access to the I/O pins or any motherboard peripherals.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC56xx MCU

  • MPC560xS: Ultra-Reliable MPC560xS MCU for Automotive and Industrial Instrument Clusters

Features

Minimodules

  • Minimodule can be ordered separately using the "ADPT" part numbers
  • MPC560SADPT144S has socket for MPC560xS in 144 LQFP footprint
  • MPC560PADPT176S has socket for MPC560xS in 176 LQFP footprint
  • MPC560PADPT208S has socket for MPC560xS in 208 MAPBGA footprint

Mother Board

  • The MPC560SADPT Mini-Module Board can be used as a standalone board by providing external 5V power supply input.
  • ON/OFF Power Switch with LED indicator
  • Reset button with filter and LED indicator
  • XPC56xxMB Board Features
  • A 12VDC power supply input barrel connector
  • 2 CAN channels with jumper enable
  • One channel with High-Speed transceiver
  • One channel with Low-Speed Fault Tolerant and High-Speed transceiver (selectable with jumpers)
  • 2 LIN channels with jumper enable
  • One with transceiver and pin header connector populated
  • One channel with footprints only
  • 1 SCI channel with jumper enables
  • 2 FlexRay channels with jumper enable
  • One channel with transceiver and DB9 male connector
  • One channel with footprint only
  • 4 user push buttons with jumper enables and polarity selection
  • 4 user LED’s with jumper enables
  • 1 potentiometer for analog voltage input
