UJA1168A Evaluation Board

UJA1168A-EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

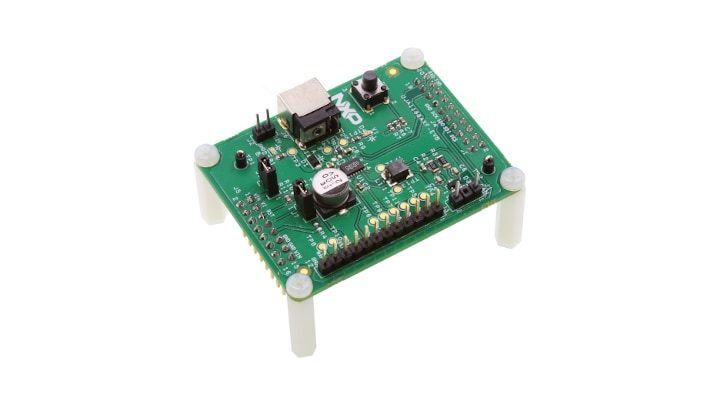

The UJA1168A-EVB Evaluation Board is a supportive tool to develop system solutions using the UJA1168A system basis chip. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

対応製品

パワーマネージメント

セーフティSBC

  • UJA1168ATK: Mini High-Speed CAN System Basis Chip for Partial Networking

Features

Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

購入オプション

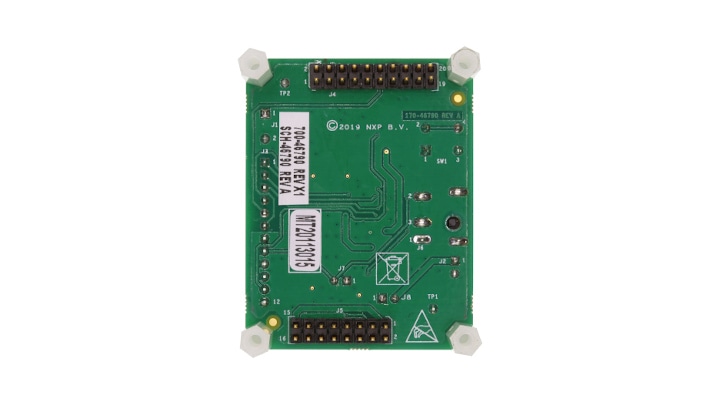

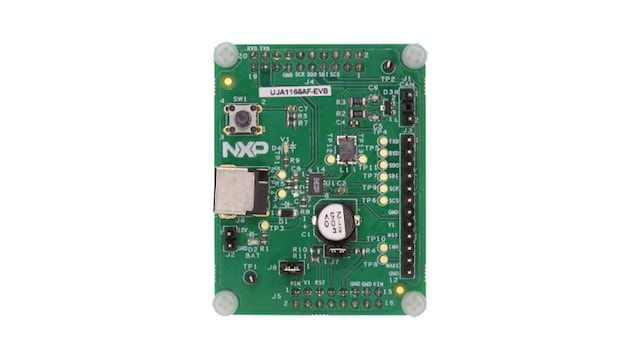

UJA1168AF-EVB-Image

クリックして展開

  • UJA1168AF-EVB
    アクティブ

  • UJA1168A Evaluation Board.

  • Kit contains:

    • UJA1168AF Evaluation Board
    • UJA116xA-EVB Manual
  • $81.40 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文

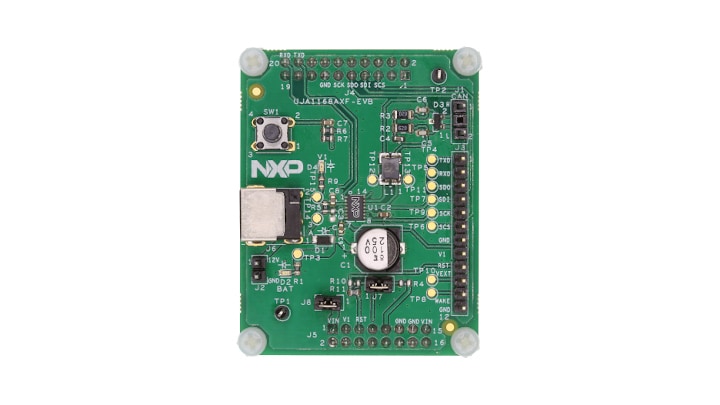

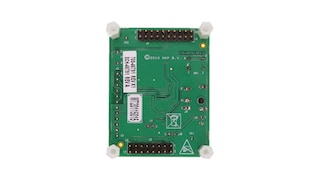

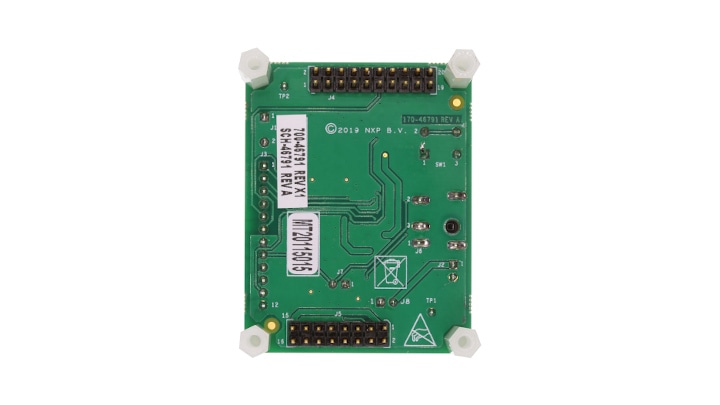

UJA1168AXF-EVB-Image

クリックして展開

  • $81.40 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
