OM13077
-

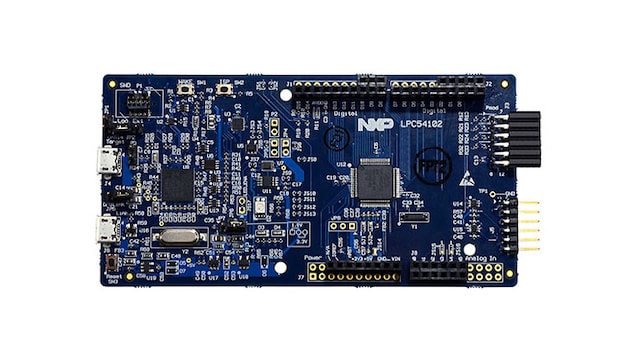

LPCXpresso54102 (LQFP64).
LPCXpresso™ Board for the LPC54100 family of MCUs
The LPCXpresso family of boards provides a powerful and flexible development system for NXP®'s Cortex-M MCUs. The LPCXpresso54102 board with NXP's LPC54102 low power microcontroller is designed to make it as easy as possible to get started with your project.
LPCXpresso™ is a low-cost development platform available from NXP supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an on-board debug probe. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.
The order code for this board is OM13077. This board is available from NXP distributors and from Embedded Artists.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
LPC54000 Cortex-M4
- LPC541XX: Low-Power Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Cores With Optional Cortex®-M0+ Co-processor
Features
- On-board high-speed USB based debug probe with CMSIS-DAP and Redlink protocol support, can debug the on-board LPC54102 or an external target
- External debug probe option
- Tri-color LED, target Reset, ISP and WAKE buttons for easy testing of software functionality
- Expansion options based on Arduino® UNO and Pmod™, plus additional expansion port pins
- On-board 1.8 V and 3.3 V regulators plus external power supply option
- Built-in MCU power consumption and supply voltage measurement
- UART, I²C and SPI port bridging from LPC54102 target to USB via the on-board debug probe
- FTDI UART connector
- Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain, available in free and Pro versions
