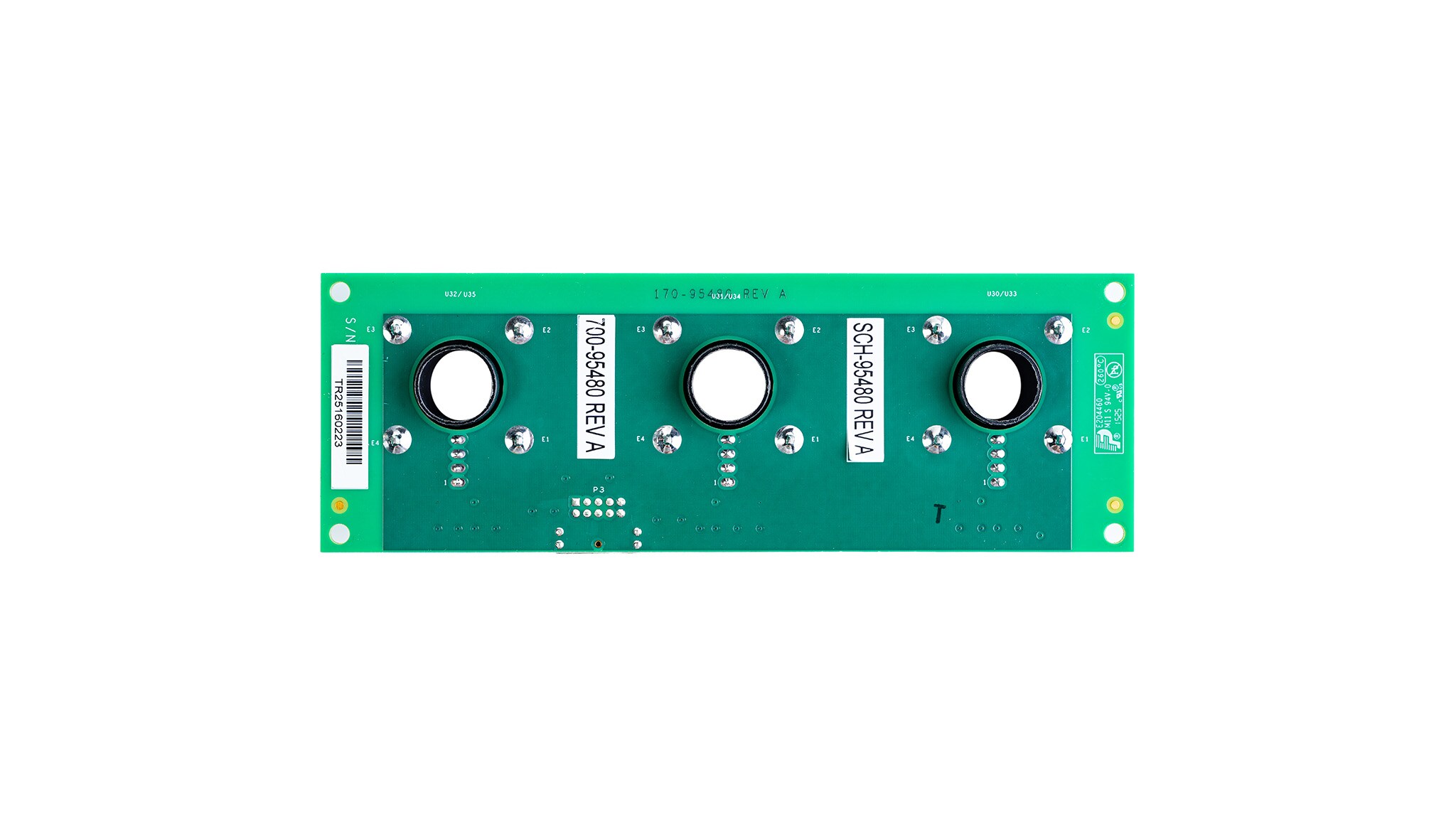

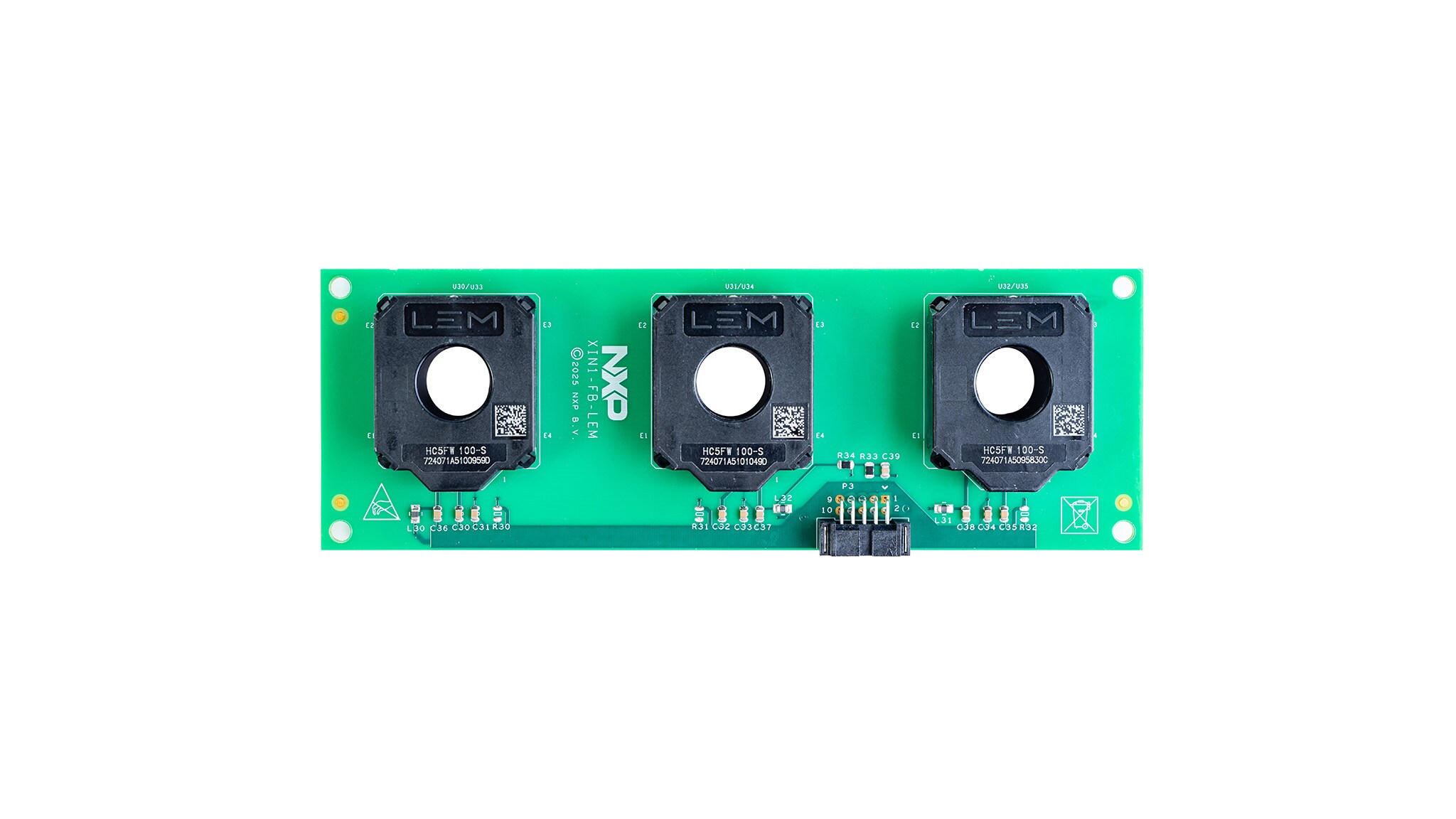

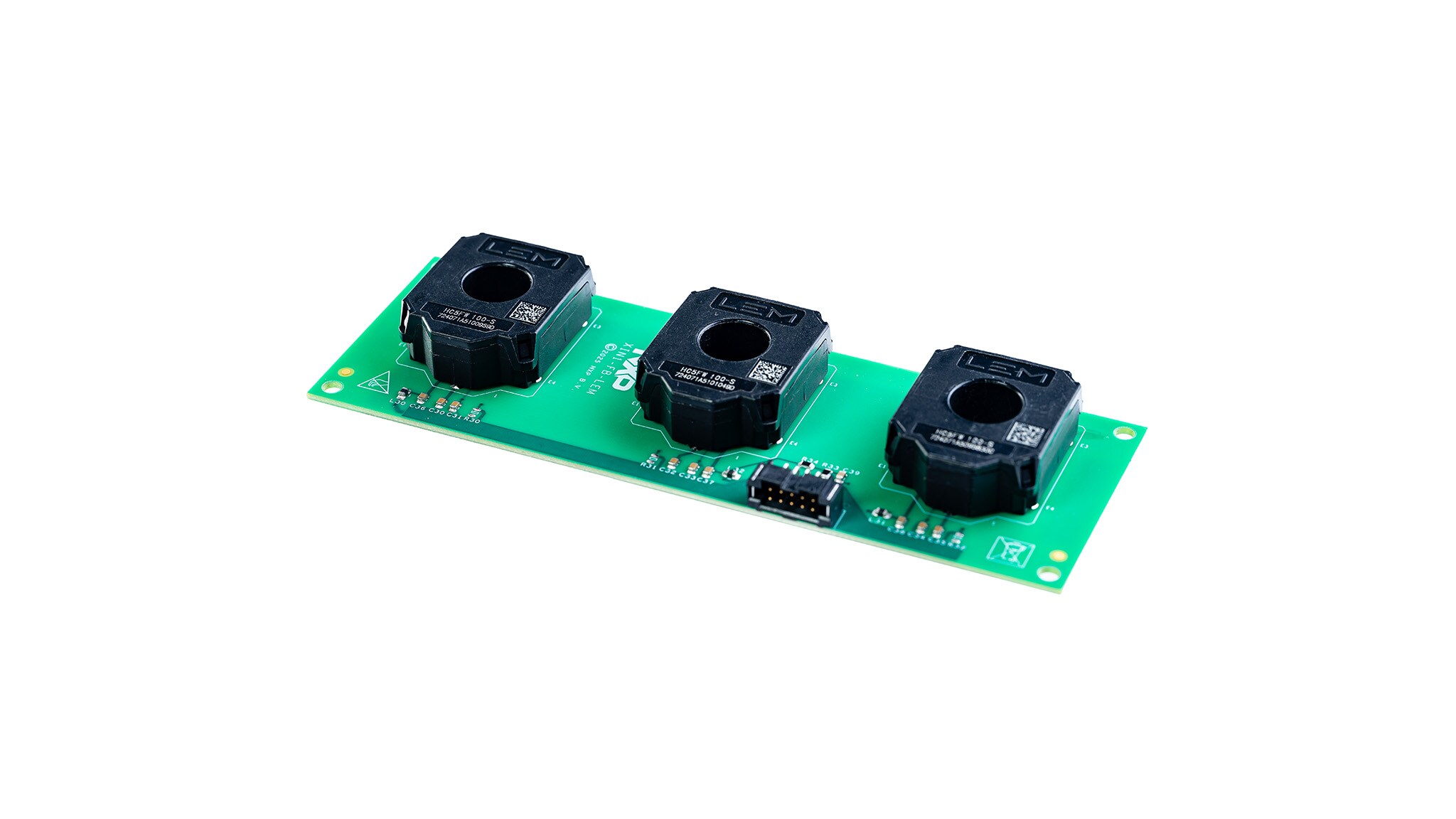

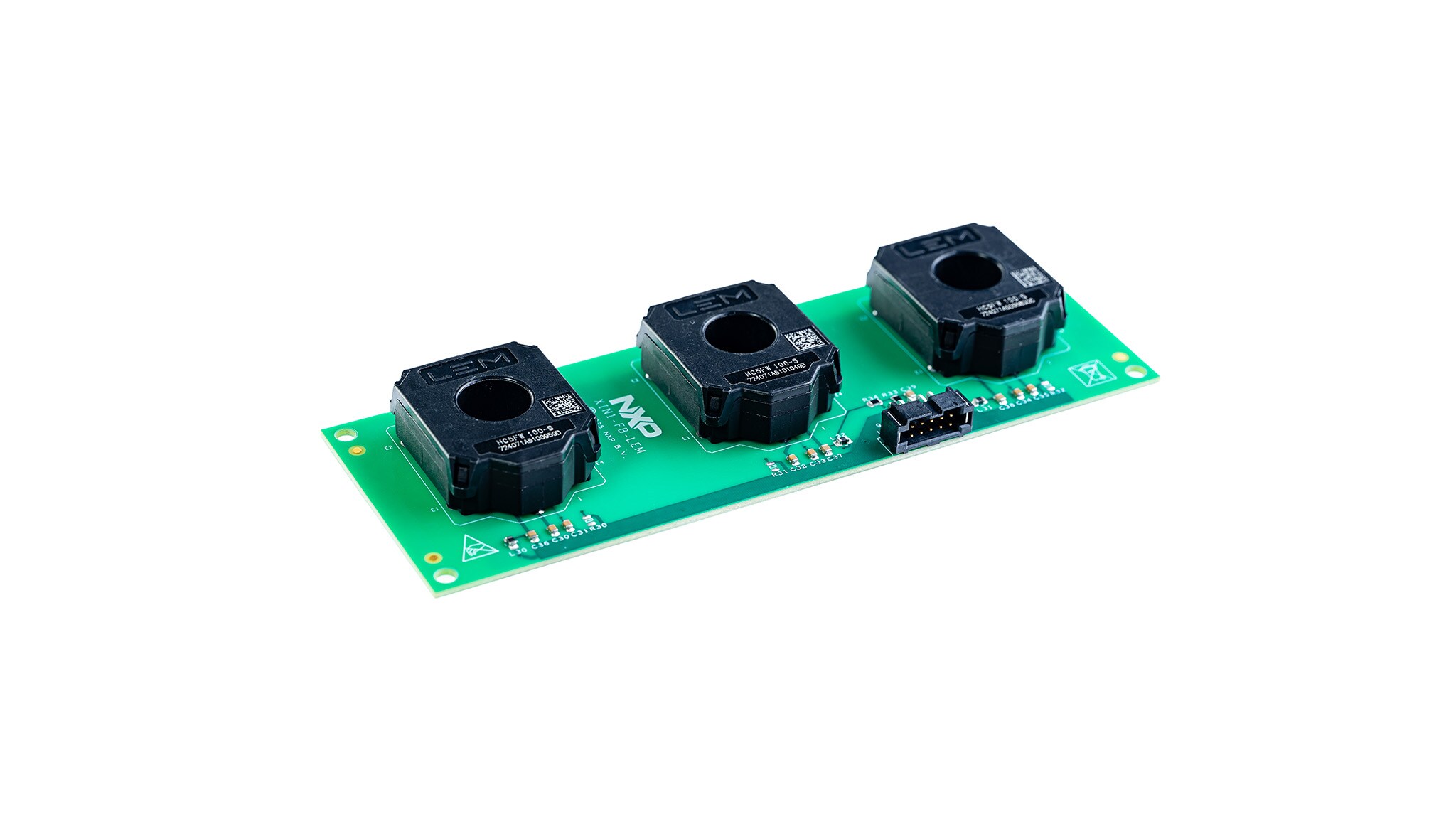

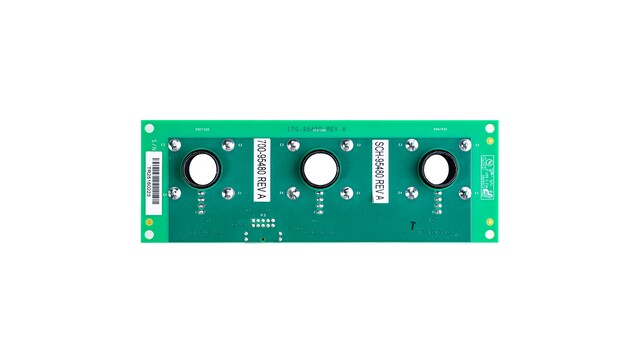

LEM Sensor Board for X-IN-1 Electrification Applications
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
The LEM current sensing board provides accurate and reliable current measurement for automotive and industrial applications. It integrates three open-loop Hall effect current sensors supporting bidirectional current sensing up to ±100 A. The solution enables galvanically isolated current measurement, ensuring safety and robustness in high-power systems. Each channel delivers a single-ended analog output centered at 2.5 V, optimized for direct connection to standard ADC inputs, enabling seamless integration with control and monitoring systems.
