Evaluation Kit - MC33907, Safe SBC with Buck, Boost, LIN

KIT33907LAEEVB
アクティブ

画像にカーソルを合わせると拡大表示されます。

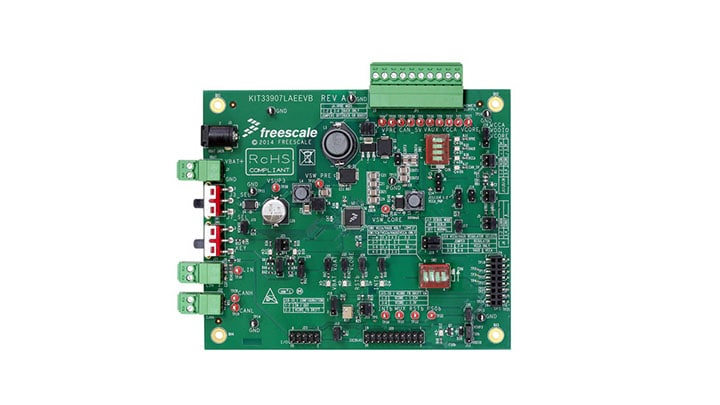

KIT33907LAEEVB evaluation board demonstrates the functionality of the MC33907 power system basis chips, respectively. These ICs are equipped with an Intelligent Power Management System including safety features targeting the latest ISO26262 automotive functional safety standard. The evaluation board is a standalone board that can be used either with a compatible microcontroller or with a PC. In the latter case, it is necessary to use an SPI/USB accessory interface board.

対応製品

パワーマネージメント

セーフティSBC

  • MC33907: DC/DC（最大800 mA）搭載セーフ・システムベーシス・チップ

Features

Connectivity

  • LIN bus
  • CAN-bus
  • IO connector (IO_0 to IO_5)

Power Management

  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VCORE configuration: 1.23 V or 3.3 V
  • VCCA configuration:
    • 5.0 V/3.3 V
    • Internal transistor or external PNP
  • VAUX configuration:
    • 3.3 V or 5.0 V
    • Enabled or disabled at startup

Debug

  • Debug connector (SPI bus, CAN digital, LIN digital, RSTb, FSOb, INTb, Debug, MUX_OUT)

User Components

  • Ignition key switch
  • Signaling LED to give state of signals or regulators

購入オプション

KIT33907LAEEVB-Image

クリックして展開

  • KIT33907LAEEVB
    アクティブ

  • Evaluation kit - MC33907, Safe System Basis Chip with Buck and Boost and LIN.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $200.51 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
