The KIT33905D5EKEVBE supports the 33905D5 and 33904 devices, which are the second generation family of System Basis Chips, which combine several features and enhance present module designs. The devices work as an advanced power management unit for the MCU and additional integrated circuits such as sensors, CAN transceivers. They have a built-in enhanced high speed CAN interface (ISO 11898-2 and -5), with local and bus failure diagnostics, protection, and fail-safe operation mode. The SBCs may include one or two LIN 2.0 interfaces with LIN output pin switches. The 33904/5 include 2 or 3 wake-up input pins than can also be configured as output drivers for flexibility.
This evaluation kit may be used with the KITUSBSPIDGLEVME.

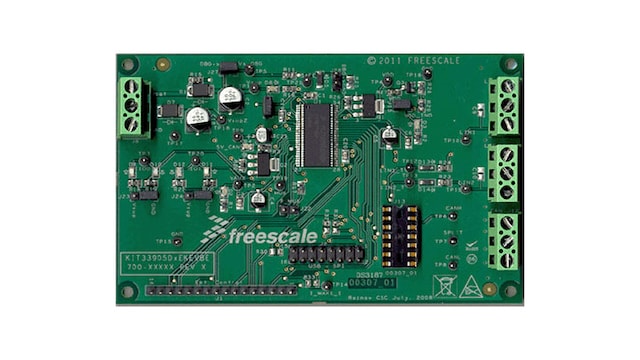

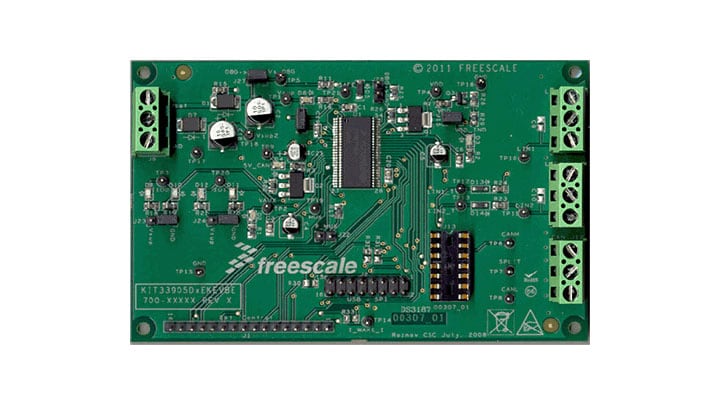

Evaluation Kit - 33905D5, System Basis Chip Gen2 with High Speed CAN and LIN Interface.
