DC-DC Conversion with Bidirectional Option
A Power Conversion system is an integral component to convert energy from various sources to specific DC or AC voltage and power levels, it can be found in most electric and electronics applications (Power supplies, EV chargers, Solar inverters, UPS , transformers , energy storage systems (ESS), ...). The main challenges of power conversion systems are energy efficiency in the conversion, quality of output (PFC, stability, reliability, ...)
アプリケーションの詳細
ブロック図
の推奨製品です。:
Generic DC/DC Conversion Based on Programmable Controller
ブロックを選択すると、推奨製品が表示されます。.
DSC / MCU
- MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder
- MC56F81xxx: Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
- MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
- MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD
- MC56F84xxx: Digital Signal Controllers
- KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4
- KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7
- i.MX-RT1160: i.MX RT1160 デュアルコアArm® Cortex®-M7およびCortex-M4搭載クロスオーバーMCU
- i.MX-RT1170: i.MX RT1170：Arm® Cortex®コア搭載1 GHzクロスオーバーMCU
- i.MX-RT1180: i.MX RT1180：TSNスイッチおよびEdgeLock®搭載クロスオーバーMCU
Gate Driver
Power Supply
- TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz
Designs
Reference Design

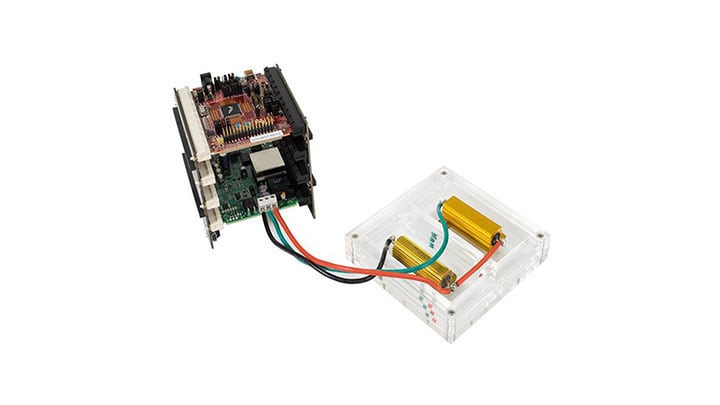

KV Series Full-Bridge DC-DC Switch Mode Power Supply (SMPS)
The full-bridge DC-DC switch mode power supply reference design is based on V series MCUs and intended to provide the example of power conversion applications.
