Applications Processors - Integrated Image Processing Unit (IPU), Connectivity , Arm11™ Core

i.MX31 アクティブ

Millions of i.MX31 processors are powering consumer, industrial, automotive, medical and general embedded devices. With on-chip media accelerators, multiple connectivity interfaces and package options, the i.MX31 and i.MX31L are suitable for a broad spectrum of multimedia oriented applications. As the first in the i.MX portfolio to achieve automotive AEC-Q100 grade 3 qualification, the i.MX31 processor is the engine in the acclaimed Ford SYNC. Design engineers need choices; NXP® delivers.

ブロック図

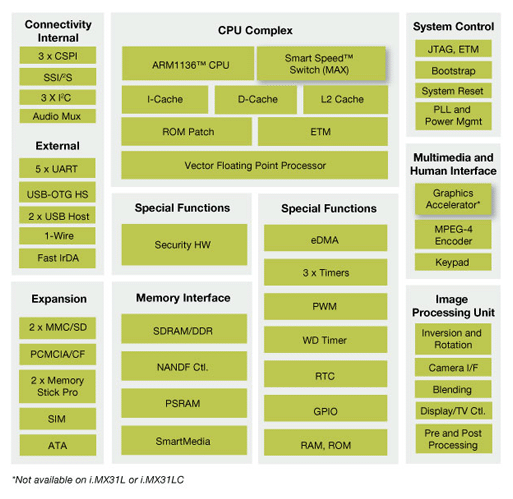

i.MX31 Multimedia Applications Processor Block Diagram

i.MX31 Multimedia Applications Processor Block Diagram
図を取得する PDF

Features

CPU Complex

  • Arm1136JF-S™
  • 128 KB L2 unified cache
  • Vector floating point coprocessor (VFP)

External Memory Interface (EMI)

  • SDRAM 16/32-bit, 133 MHz
  • Mobile DDR 16/32-bit, 266 MHz
  • NAND flash 8/16-bit
  • PSRAM

Multimedia

  • VGA MPEG®-4 HW encode
  • Graphics acceleration (i.MX31 only)
  • Image Processing Unit (IPU)
  • CMOS/CCD sensor interface
  • Resize, color space conversion
  • Deblocking, deringing, blending
  • Display/TV controller

Advanced Power Management

  • Automatic Dynamic Voltage and Frequency Scaling (DVFS)
  • Dynamic Process and Temperature Compensation (DPTC)
  • Active well-bias
  • Power gating

Product Longevity
