Multimedia Applications Processors - Arm9™ Core, Robust Security for Mobile
i.MX27L アラートの受信
- 新規採用非推奨
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。
In response to the needs of design engineers tasked with pushing the performance envelope, packing in a lot of connectivity options and providing robust security in mobile device designs, NXP® presents the i.MX27L multimedia applications processor. Derived from the popular i.MX21 processor and based on the Arm926EJ-S™ core, the i.MX27L processor offers an Ethernet 10/100 MAC, security, plug-and-play connectivity and more power management features. This rich feature set makes it an excellent choice for mobile phones, intelligent remote controls, point-of-sale terminals, control devices, low to mid end PNDs and many other wireless applications.
The i.MX27L is supported by a companion NXP power management IC (PMIC), MC13892.
i.MX27L Product Image
製品詳細

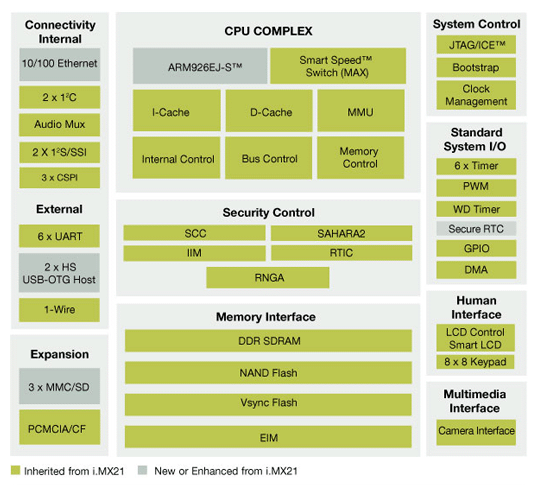

ブロック図
Features
CPU Complex
- Arm926EJ-S™ 400 MHz core
- 16 KB L1 I-Cache and D-Cache
- 16-channel DMA
- ETM real-time debug
- Smart Speed switch
External Memory Interface (EMI)
- SDRAM 16/32-bit, 133 MHz
- DDR 16/32-bit, 266 MHz
- NAND flash 8/16 bit
- PSRAM support
Security Control
- Crypto accelerator
- Electronically blown fusebox
- High-assurance boot
- Security controller with encrypted RAM storage
- Real-time OS/SW integrity checker
Advanced Power Management
- Dynamic process temperature control (DPTC)
- Active well bias
Connectivity
- 10 and 100 Mbps Ethernet/IEEE802.3MAC
- USB OTG high speed, hostx2
- PCMCIA/CF
- Audio MUX
- IrDA, keypad, 1-wire
- Configurable SPIx3, SSI/I2S x 2, UART x 6
Performance
- CPU complex: 400 MHz at 1.6V, 266 MHz at 1.2V
- System: 133 MHz
Technology
- 90 nm CMOS
Package
- 404 balls, 0.65 mm pitch MAPBGA, 17 mm x 17 mm package
Product Longevity
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
