Multimedia Applications Processors - Connectivity, Cost Effective, Arm9™ Core
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。
Design engineers seeking the performance of a 266 MHz Arm® CPU, but who do not require high resolution video and graphics capabilities now have a compelling new choice from NXP®. the i.MX21S applications processor.
Derived from the popular i.MX21 multimedia applications processor, the i.MX21S applications processor retains many key features, including expansion slots and several connectivity options, such as USB On-The-Go (USB-OTG) for plug-and-play connectivity. This makes it well suited for a host of cost-sensitive applications including health care devices, fire and security equipment, education products and industrial automation.
i.MX21S Product Image
製品詳細

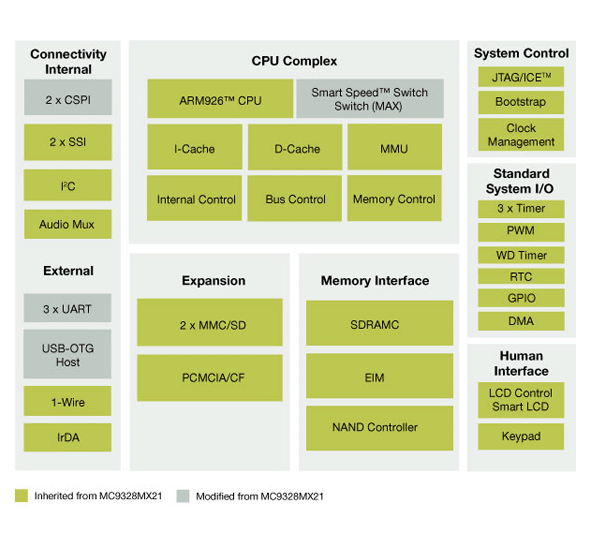

ブロック図
Features
CPU Complex
- Arm926EJ-S™ core (16 KB I-Cache, 16 KB D-Cache)
- Arm® Jazelle® technology for Java™ acceleration
- Smart Speed Switch
Human Interface
- 16/18-bit color LCD controller up to SVGA
- Smart panels support (SLCDC)
Connectivity
- 3 x UARTs, IrDA (SIR, MIR and FIR)
- USB-OTG (one full-speed host port 2)
- I²C
- One wire
- 8 x 8 keypad
- Two configurable SPIs
Expansion
- Dual-slot MMC and SD/SDIO card interface
- PCMCIA support
Multimedia
- High-speed CMOS sensor I/F
Special Functions
- NAND Flash controller
- 16-channel direct memory access (DMA)
- 16/32-bit SDRAM controller
Performance
- CPU complex: starting at 266 MHz
- System: 133 MHz @ 1.8V
Technology
- 289 MAPBGA, 14 X 14 mm, 0.65 mm pitch; 17 x 17 mm, 0.8 mm pitch
- 0.13 µm
部品番号： MC9328MX21SCVK, MC9328MX21SCVM, MC9328MX21SVK, MC9328MX21SVM.
購入/パラメータ
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 19 ドキュメント
-
アプリケーション・ノート
i.MX Layout Recommendations
-
アプリケーション・ノート
Using the M9328MX21ADS for i.MX21S Development
