KickStart Kit for the i.MX25 Processor Family
IMX25KSB アラートの受信
The KickStart Kit for the i.MX 25 processor family provides you with all the tools you need to develop embedded applications right out of the box.
The kit contains a suite of software development tools, including IAR Embedded Workbench for Arm® 32K KickStart edition that incorporates the IAR C/C++ Compiler, assembler, linker, librarian, text editor, project manager, and IAR C-SPY Debugger in an integrated development environment.
Example projects and RTOS board support packages are also included in the KickStart kit. The IAR J-Link Lite for Arm JTAG/SWD hardware debug probe connects via USB to the PC host running Windows® and integrates seamlessly into IAR Embedded Workbench.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
i.MX成熟プロセッサ
- i.MX251: Multimedia Applications Processors - Entry Level Automotive Applications, Low Power, Cost Effective, Arm9™ Core
- i.MX253: Multimedia Applications Processors - Connectivity, High Performance, Cost Effective, Arm9™ Core
- i.MX255: Multimedia Applications Processors - Automotive Infotainment, High Resolution, High Color Display, High Performance, Low Power, Arm9™ Core
- i.MX257: Multimedia Applications Processors - Data Acquisition, User Interaction, Connectivity, Arm9™ Core
- i.MX258: Multimedia Applications Processors - Point of Sale (POS), Robust Security, Connectivity, Arm9™ Core
Features

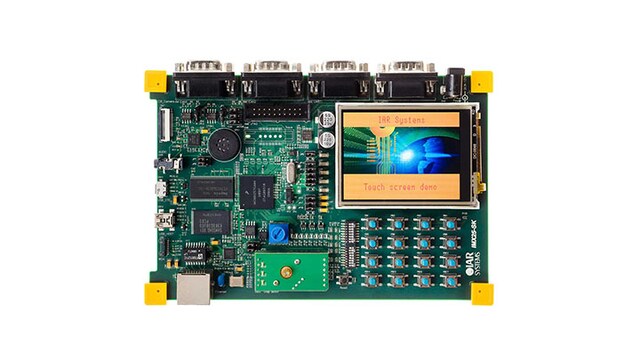

i.MX25–SK Evaluation Board
- i.MX257 device (ARM926EJ–S™ based)
- 32–Mbyte (16Mx16 bit) SDRAM, 1G x 8 bit NAND Flash memory
- TFT(320 x 240) color LCD display
- 2 x UART with DB9 connectors (male), 2 x CAN connectors
- 20–pin JTAG connector and ETM footprint
- USB Host and USB OTG connectors
- Ethernet 10/100 Mbit connector
- SD/MMC card connector, audio and camara connectors
- User–defined 4 x 4 key buttons, 8 x LEDs
- Potentiometer, 3–axis accelerometer
- Stepper motor, speaker
- RoHS, FCC/CE certifications
JTAG/SWD Hardware Debug Probe
- Any ARM7/ARM9/ARM11/Cortex-M0/M1/M3 core supported, including both JTAG and SWD
- Fully software compatible to IAR J–Link
- JTAG clock up to 4MHz
- No power supply required, powered through USB
- 20–pin standard JTAG connector
- Wide target voltage range: 1.2V – 3.3V, 5V tolerant
Installation CD Content
- Software/RTOS
- IAR Embedded Workbench for Arm—C/C++ compiler and debugger tools)
- KickStart edition: 32K code size limit, no time limit
- Evaluation edition: full functional with 30–day limit
- IAR visualSTATE— State machine design and test tools
- 20–state evaluation edition
- Segger embOS—RTOS and middleware (embOS, File systems, TCP/IP, USB etc)*
- Evaluation edition including BSP example projects
- Example projects and BSPs
- Product information
- Getting started guide including installation guide, running examples, evaluation board overview, etc
- Board schematics, peripheral information
- i.MX25 device reference manual, errata sheet etc.
