Evaluation Kit for NXP’s MPC5510 Family

画像にカーソルを合わせると拡大表示されます。

製品詳細

セクションを選択:

対応製品

プロセッサ&マイクロコントローラ

MPC55xxマイクロコントローラ

Features

MPC5510ADAP Daughter Cards:

  • MPC5510ADAP208 socketed adapter to program and debug 208MAPBGA devices
  • MPC5510ADAP144 socketed adapter to program and debug 144 LQFP devices

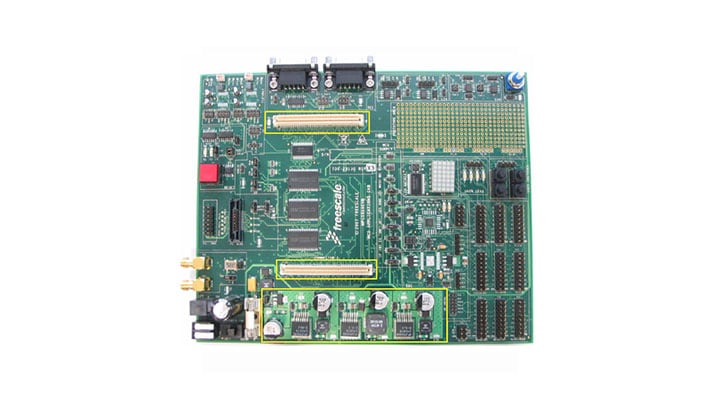

MPC5510EVB Mother Board:

  • 14-pin JTAG/ONCE connector
  • 38-pin MICTOR Nexus 2+ connector
  • External 256KByte of asynchronous SRAM
  • High-speed CAN transceiver
  • LIN transceiver
  • FlexRay transceiver
  • 5x7 LED dot matrix
  • 12-14 V power supply
  • NXP® SBC to power the MCU

購入オプション

MPC5510KIT208-Image

クリックして展開

  • MPC5510KIT208

  • Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP208 daughter card.

  • JP¥107,695
  • の数量に対して 1
代理店から購入する
  • MPC5510KIT144

  • Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP144 daughter card.

  • JP¥107,695
  • の数量に対して 1
代理店から購入する
  • JP¥38,266
  • の数量に対して 1

ドキュメンテーション

クイック・リファレンス ドキュメンテーションの種類.

1 ドキュメント

  • リファレンス・マニュアル

    MPC5510EVB User Manual
