LFJ44INTPU1A
-
Qorivva MPC5644A ON A 324 Pin BGA to PGA.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List

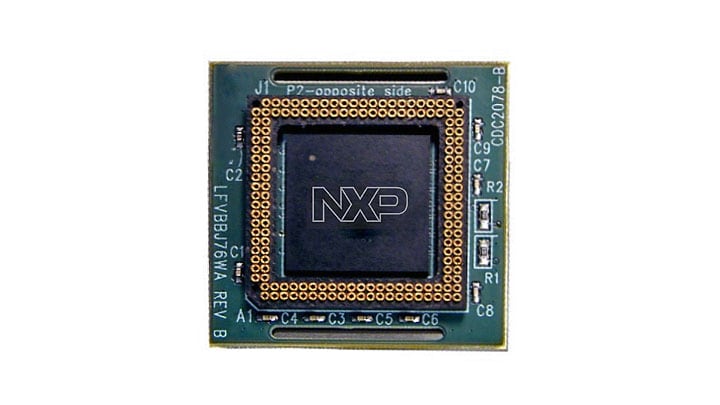

MPC564xA Device and Target Adapters
MPC564xAVBBOARDS アラートの受信
The VertiCal system enables the use of enhanced calibration and debugging tools for industrial and automotive applications, supporting a wide range of MPC564xAMCUs in different package types.
Based on Power Architecture®, the VertiCal offers production footprints and a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
超高信頼性MPC56xx MCU
- MPC564xA: Ultra-Reliable MPC564xA MCU for Automotive and Industrial Engine Management
Features
- VertiCal system compatible
- Standardized hardware across MPC564xA MCUs (using production silicon)
- Up to 324 pins
- Pitch 0.5 and 1.00 mm
- Allows system calibration without impacting standard MCU I/O resources
- Interconnect standard supported by multiple calibration tool developers
- Support for simplified implementation of overlay memory
- Flexibility to support new MCU features for prototyping use
- Uses tried and tested technology
購入オプション
-
LFJ44INTPQA
-
Qorivva MPC5644A ON A 208 PIN 1.0MM BGA to PGA adpater.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List
-
LFVBBJ44U1A
-
Qorivva MPC5644A 324 Pin 1.0MM PGA Vertical Calibration Base Board.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List
