MPC560xB General Purpose Evaluation Board

MPC560xB_EVB

画像にカーソルを合わせると拡大表示されます。

The XPC560B EVB is an evaluation system supporting NXP® MPC560xB MPUs. The complete system consists of an XPC56xxMB motherboard and an adapter card that plugs into the motherboard. Different adapter cards are available for evaluating various packages in the MPC560xB family of MPUs. The evaluation system allows full access to the CPU, all of the CPU’s I/O signals, and the motherboard peripherals.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC56xx MCU

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose

パワーマネージメント

統合型スイッチング・レギュレータ

  • MC33730: Power Supply with Multiple Linear Regulators

Features

XPC563BADPT Mini-Module Board Features

  • Can be used as a standalone board by providing external 5-volt power supply input
  • MDC560B100C256K has a MPC560xB MCU in 100LQFP footprint
  • MDC560B208SC512K has a MPC560xB MCU in 208MAPBGA footprint
  • MDC560B144SC512K has a MPC560xB MCU in 144LQFP footprint
  • MDC560B100SC512K has a MPC560xB MCU in 100LQFP footprint
  • MDC560B176SB15M has a MPC560xB MCU in 176LQFP footprint
  • MDC560B144SB15M has a MPC560xB MCU in 144LQFP footprint
  • MDC560B100SB15M has a MPC560xB MCU in 100LQFP footprint
  • MDC560B208SB15M has a MPC560xB MCU in 208MAPBGA footprint
  • ON/OFF Power Switch with LED indicator
  • Reset button with filter and LED indicator

XPC56xxMB Board Features

  • 12 V DC power supply input barrel connector
  • 2 CAN channels with jumper enable
    • One channel with high-speed transceiver
    • One channel with low-speed fault tolerant and high-speed transceiver (selectable with jumpers)
  • 2 LIN channels with jumper enable
    • One with transceiver and pin header connector populated
    • One channel with footprints only
  • 1 SCI channel with jumper enables
  • 2 FlexRay™ channels with jumper enable
    • One channel with transceiver and DB9 male connector
    • One channel with footprint only
  • 4 user push buttons with jumper enables and polarity selection
  • 4 user LEDs with jumper enable
  • 1 potentiometer for analog voltage input

購入オプション

MKT560B100B15M-Image

クリックして展開

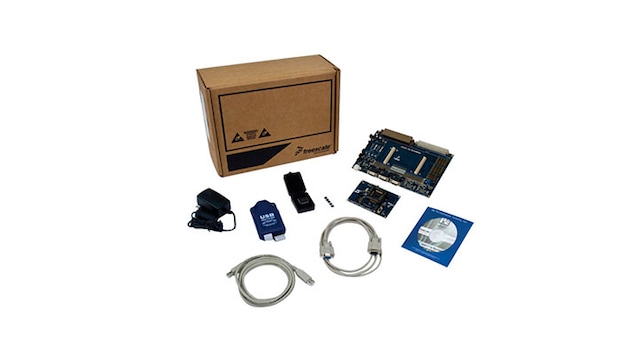

  • MKT560B100B15M

  • Eval Kit for Qorivva MPC560xB, Includes MPC56xxMB2 Motherboard and MDC560B100B15M daughter card.

    • XPC56xxMB motherboard
    • One of the following adapter cards
      • XDC560B208SC512K
      • XDC560B144SC512K
      • XDC560B100SC512K
      • XDC560B176SB15M
      • XDC560B144SB15M
      • XDC560B100SB15M
      • XDC560B208SB15M
    • XPC56xx Resources CD-ROM
    • P&E USB-ML-PPCNEXUS Hardware Interface Cable
    • USB A-to-B Cable
    • NXP Warranty Card
  • JP¥63,606
  • の数量に対して 1
MKT560B208B15M-Image

クリックして展開

  • MKT560B208B15M

  • Eval Kit for Qorivva MPC560xB, Includes MPC56xxMB2 Motherboard and MDC560B208B15M daughter card.

  • JP¥63,606
  • の数量に対して 1
    • 在庫状況: 保留在庫
